FW-36-03 Series

Catalog

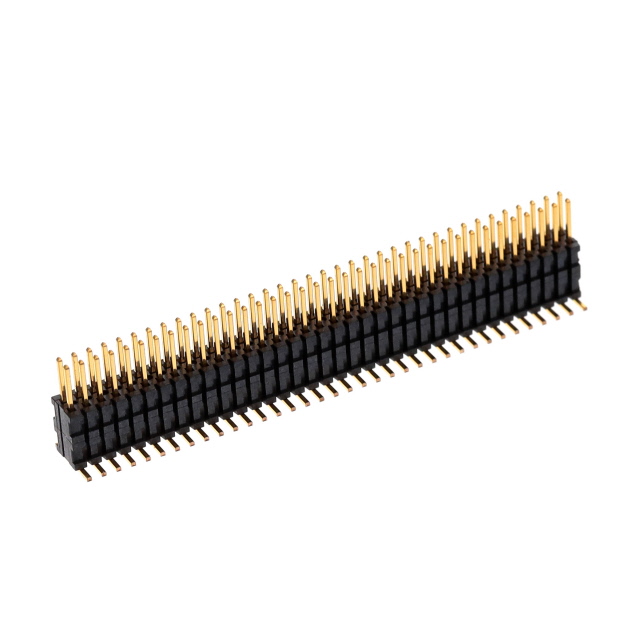

CONN HDR 72POS 0.05 STACK SMD

Part	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Stack Height [x]	Length - Stack Height [x]	Mounting Type	Number of Positions	Termination	Row Spacing	Row Spacing	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Overall Pin [x]	Length - Overall Pin [x]	Number of Rows	Contact Finish - Post (Mating)	Pitch [x]	Pitch [x]	Color	Length - Stack Height [z]	Length - Stack Height [z]	Length - Overall Pin	Length - Overall Pin
Samtec Inc. FW-36-03-L-D-265-135-A	3.429 mm	0.135 in	6.731 mm	0.265 in	Surface Mount	72	Solder	1.27 mm	0.05 in	0.25 Ám	10 Áin	0.4 in	10.16 mm	2	Gold	0.05 in	1.27 mm	Black
Samtec Inc. FW-36-03-L-D-250-150-A	3.81 mm	0.15 in	6.35 mm	0.25 in	Surface Mount	72	Solder	1.27 mm	0.05 in	0.25 Ám	10 Áin	0.4 in	10.16 mm	2	Gold	0.05 in	1.27 mm	Black
Samtec Inc. FW-36-03-G-D-215-075-P	1.905 mm	0.075 in			Surface Mount	72	Solder	1.27 mm	0.05 in	0.25 Ám	10 Áin			2	Gold	0.05 in	1.27 mm	Black	5.461 mm	0.215 in	7.366 mm	0.29 in
Samtec Inc. FW-36-03-L-D-215-140	3.556 mm	0.14 in			Surface Mount	72	Solder	1.27 mm	0.05 in	0.25 Ám	10 Áin	0.355 in	9.017 mm	2	Gold	0.05 in	1.27 mm	Black	5.461 mm	0.215 in
Samtec Inc. FW-36-03-G-D-266-075-A-P-TR	1.905 mm	0.075 in	6.75 mm	0.266 in	Surface Mount	72	Solder	1.27 mm	0.05 in	0.25 Ám	10 Áin	0.341 in	8.661 mm	2	Gold	0.05 in	1.27 mm	Black
Samtec Inc. FW-36-03-G-D-252-118	2.997 mm	0.118 in	6.4 mm	0.252 in	Surface Mount	72	Solder	1.27 mm	0.05 in	0.25 Ám	10 Áin	0.37 in	9.4 mm	2	Gold	0.05 in	1.27 mm	Black
Samtec Inc. FW-36-03-LM-D-237-150	3.81 mm	0.15 in			Surface Mount	72	Solder	1.27 mm	0.05 in	0.25 Ám	10 Áin			2	Gold	0.05 in	1.27 mm	Black	6.02 mm	0.237 in	9.83 mm	0.387 in
