DCNHR250QFA Series

DCNHR 250A 450V P Aux 9-36Vcoil

Catalog

DCNHR 250A 450V P Aux 9-36Vcoil

Part	Must Release Voltage	Contact Rating (Current)	Switching Voltage DC (Max)	Form A Count	Contact Form	Must Operate Voltage	Operating Temperature (Min)	Operating Temperature (Max)	Features	Termination Style	Mounting Type	Coil Voltage (Max)	Coil Voltage (Min)
LITTELFUSE DCNHR250QFA	6 VDC	250 A	900 VDC	1	SPST-NO	9 VDC	-40 °C	85 °C	Auxiliary Contacts	Stud Wire Leads	Chassis Mount	36 VDC	9 VDC

Catalog

DCNHR 250A 450V P Aux 9-36Vcoil

Description

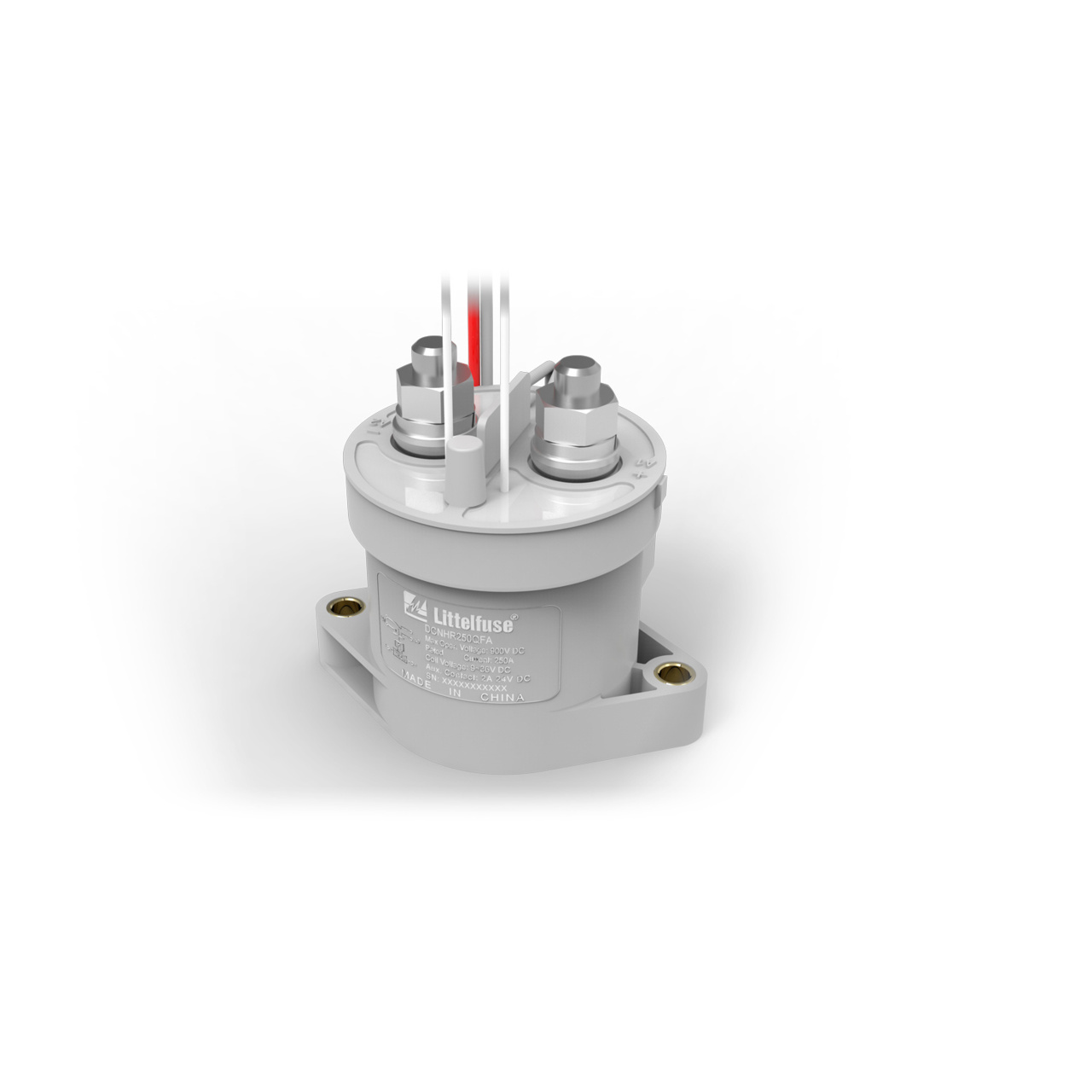

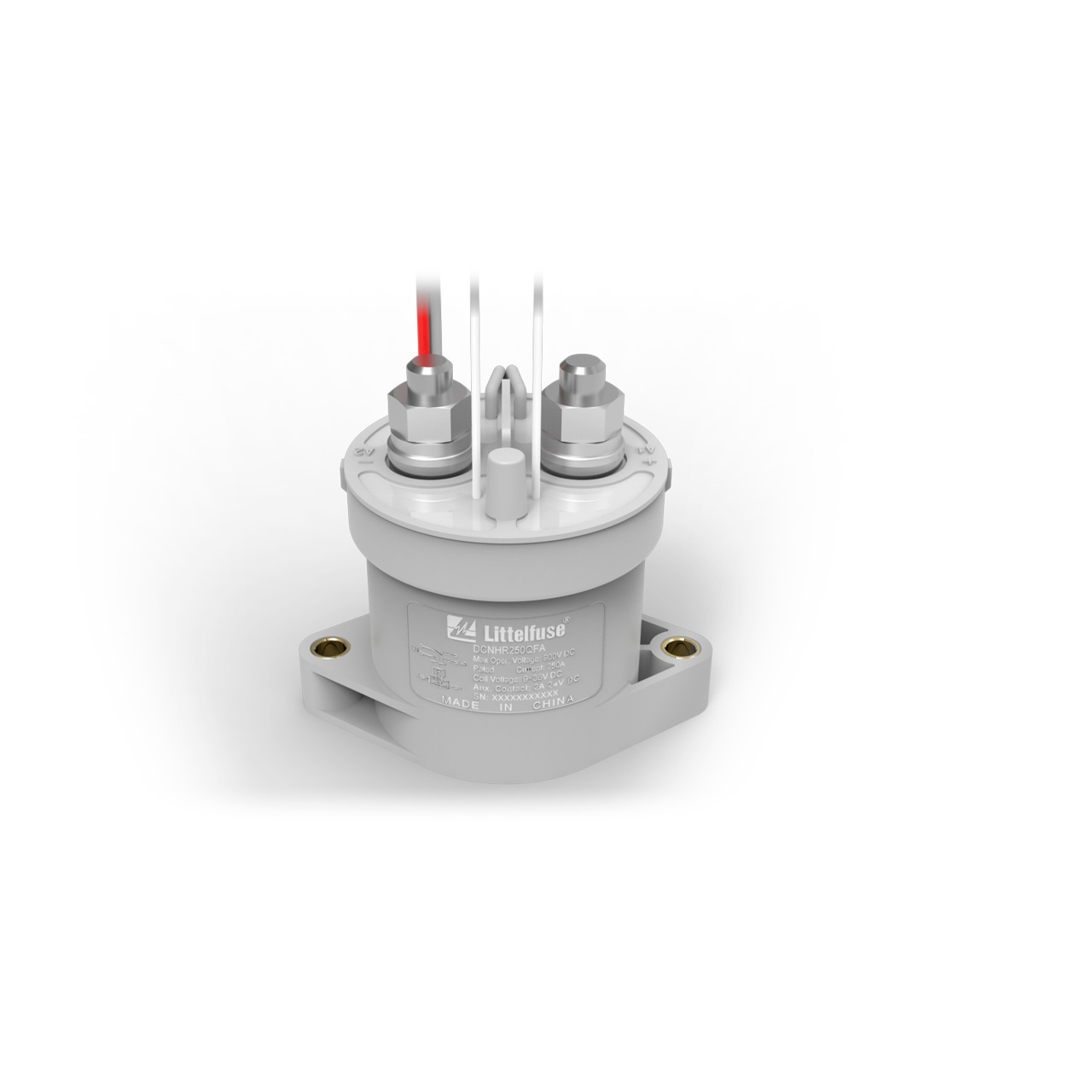

The DCNHR Series 450V High-Voltage DC Contactor Relay is normally open with a low-power coil in a corrosion-resistant housing for use in harsh vehicle environments. The contactor's permanent magnet helps to achieve a high-voltage DC cutoff.This DCNHR Series contactor relay (DCNHR250QFA) is for 250A contact switching. It includes an auxiliary contact and features polarized main contacts.
