644487 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

05P MTA100 SHRD HDR ASSY 30AU

Part	Contact Material	Features	Mounting Type	Contact Length - Post	Material Flammability Rating	Insulation Color	Contact Finish - Mating	Overall Contact Length	Insulation Height	Style	Current Rating	Contact Shape	Contact Length - Mating	Number of Positions Loaded	Fastening Type	Voltage Rating	Connector Type	Insulation Material	Contact Type	Contact Finish Thickness - Mating	Number of Rows	Contact Finish - Post	Pitch - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Termination	Shrouding	Number of Positions	Applications
TE Connectivity AMP Connectors 2-644487-5	Copper Alloy	Board Guide	Through Hole	0.14 in	UL94 V-0	Black	Gold	0.44 in	0.41 in	Board Cable/Wire	Varies by Wire Gauge	Square	0.2 in	All	Friction Lock	250 V	Header	Polyester	Male Pin	30 µin	1	Tin	0.1 in	-55 °C	105 °C	Solder	Shrouded - 4 Wall	5	General Purpose

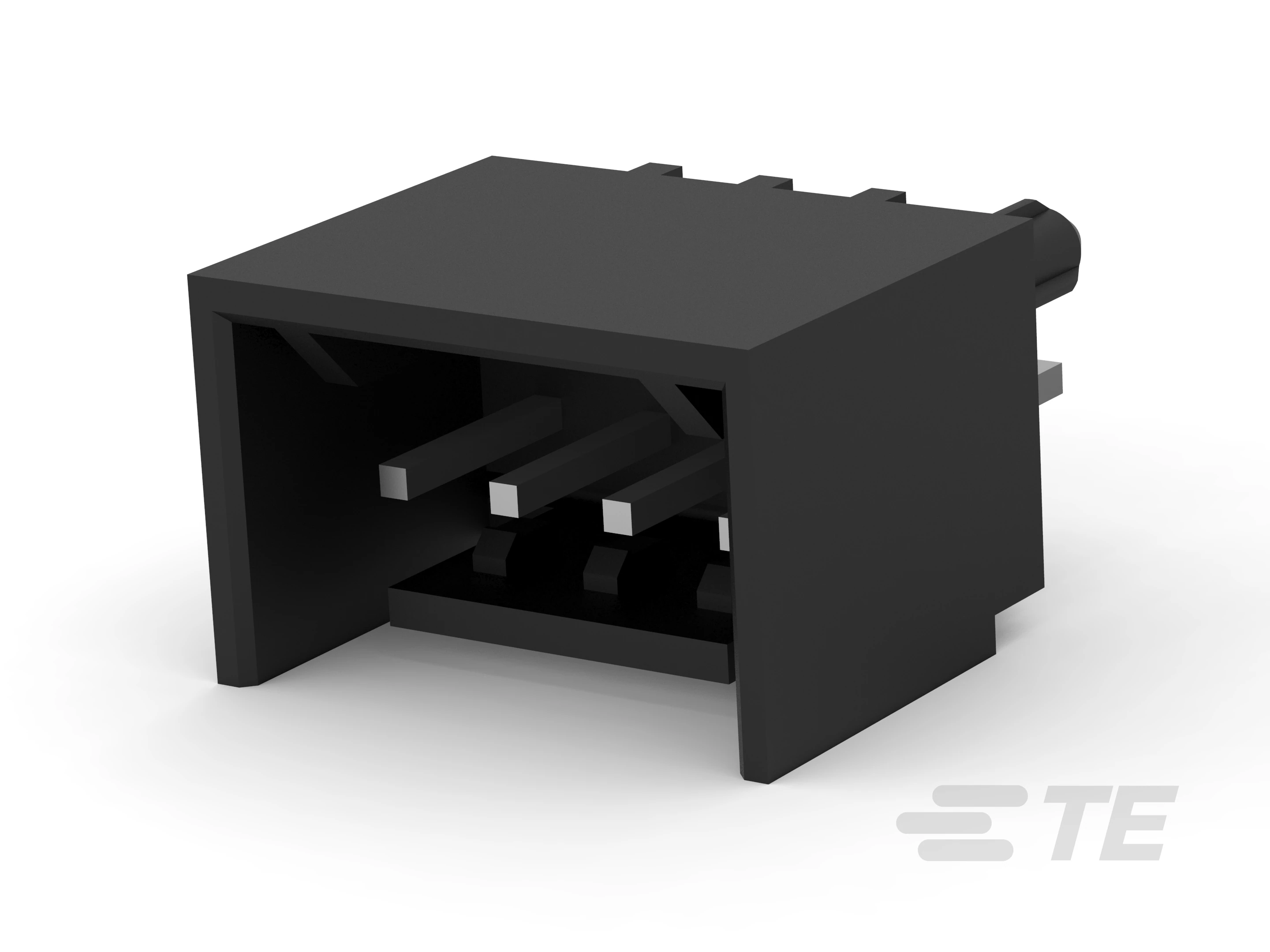

TE Connectivity AMP Connectors 644487-4	Copper Alloy	Board Guide	Through Hole	0.14 in	UL94 V-0	Black	Gold	0.44 in	0.41 in	Board Cable/Wire	Varies by Wire Gauge	Square	0.2 in	All	Friction Lock	250 V	Header	Polyester	Male Pin	30 µin	1	Tin-Lead	0.1 in	-55 °C	105 °C	Solder	Shrouded - 4 Wall	4	General Purpose
TE Connectivity AMP Connectors 644487-8	Copper Alloy	Board Guide	Through Hole	0.14 in	UL94 V-0	Black	Gold	0.44 in	0.41 in	Board Cable/Wire	Varies by Wire Gauge	Square	0.2 in	All	Friction Lock	250 V	Header	Polyester	Male Pin	30 µin	1	Tin-Lead	0.1 in	-55 °C	105 °C	Solder	Shrouded - 4 Wall	8	General Purpose
TE Connectivity AMP Connectors 644487-6	Copper Alloy	Board Guide	Through Hole	0.14 in	UL94 V-0	Black	Gold	0.44 in	0.41 in	Board Cable/Wire	Varies by Wire Gauge	Square	0.2 in	All	Friction Lock	250 V	Header	Polyester	Male Pin	30 µin	1	Tin-Lead	0.1 in	-55 °C	105 °C	Solder	Shrouded - 4 Wall	6	General Purpose
TE Connectivity AMP Connectors 2-644487-7	Copper Alloy	Board Guide	Through Hole	0.14 in	UL94 V-0	Black	Gold	0.44 in	0.41 in	Board Cable/Wire	Varies by Wire Gauge	Square	0.2 in	All	Friction Lock	250 V	Header	Polyester	Male Pin	30 µin	1	Tin	0.1 in	-55 °C	105 °C	Solder	Shrouded - 4 Wall	7	General Purpose
TE Connectivity AMP Connectors 644487-5	Copper Alloy		Through Hole	0.14 in	UL94 V-0	Black	Gold	0.44 in	0.41 in	Board Cable/Wire	Varies by Wire Gauge	Square	0.2 in	All	Friction Lock	250 V	Header	Polyester	Male Pin	30 µin	1	Tin-Lead	0.1 in	-55 °C	105 °C	Solder	Shrouded - 4 Wall	5	General Purpose
TE Connectivity AMP Connectors 644487-2	Copper Alloy	Board Guide	Through Hole	0.14 in	UL94 V-0	Black	Gold	0.44 in	0.41 in	Board Cable/Wire	Varies by Wire Gauge	Square	0.2 in	All	Friction Lock	250 V	Header	Polyester	Male Pin	30 µin	1	Tin-Lead	0.1 in	-55 °C	105 °C	Solder	Shrouded - 4 Wall	2	General Purpose
TE Connectivity AMP Connectors 2-644487-9	Copper Alloy	Board Guide	Through Hole	0.14 in	UL94 V-0	Black	Gold	0.44 in	0.41 in	Board Cable/Wire	Varies by Wire Gauge	Square	0.2 in	All	Friction Lock	250 V	Header	Polyester	Male Pin	30 µin	1	Tin	0.1 in	-55 °C	105 °C	Solder	Shrouded - 4 Wall	9	General Purpose
TE Connectivity AMP Connectors 1-644487-4	Copper Alloy	Board Guide	Through Hole	0.14 in	UL94 V-0	Black	Gold	0.44 in	0.41 in	Board Cable/Wire	Varies by Wire Gauge	Square	0.2 in	All	Friction Lock	250 V	Header	Polyester	Male Pin	30 µin	1	Tin-Lead	0.1 in	-55 °C	105 °C	Solder	Shrouded - 4 Wall	14	General Purpose
TE Connectivity AMP Connectors 3-644487-0	Copper Alloy	Board Guide	Through Hole	0.14 in	UL94 V-0	Black	Gold	0.44 in	0.41 in	Board Cable/Wire	Varies by Wire Gauge	Square	0.2 in	All	Friction Lock	250 V	Header	Polyester	Male Pin	30 µin	1	Tin	0.1 in	-55 °C	105 °C	Solder	Shrouded - 4 Wall	10	General Purpose
