DSPIC33FJ64GP706 Series

Catalog

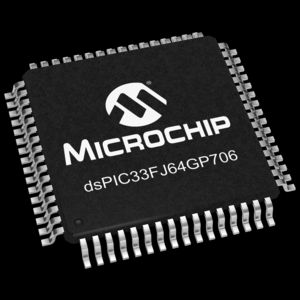

MCU 16-BIT DSPIC33 DSPIC RISC 64KB FLASH 3.3V 64-PIN TQFP T/R

Part	Type	Number of I/O	Core Size (Bit Width)	Program Memory Type	Oscillator Type	Package Width	Package Name	Package Length	Program Memory Depth	Program Memory Width	Program Memory Size	Speed	Peripherals	Operating Temperature (Max)	Operating Temperature (Min)	Core Processor	A/D Resolution (bits)	A/D Channels	RAM Size Width	RAM Size Depth	Connectivity	Package / Case	Mounting Type	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum
Microchip Technology DSPIC33FJ64GP706T-I/PT	Digital Signal Controllers	53	16 Bit	FLASH	Internal	10 mm	64-TQFP	10 mm	64 K	8 bit	64 KB	40 MIPs	AC'97 Brown-out Detect DMA I2S POR PWM Reset WDT	85 °C	-40 °C	dsPIC	10 bit 12 bit	18 count	8 bit	16 K	CANbus I2C IrDA LINbus SPI UART USART	64-TQFP	Surface Mount	3.6 V	3 V
Microchip Technology DSPIC33FJ64GP706AT-I/PT	Digital Signal Controllers	53	16 Bit	FLASH	Internal	10 mm	64-TQFP	10 mm	64 K	8 bit	64 KB	40 MIPs	AC'97 Brown-out Detect DMA I2S POR PWM Reset WDT	85 °C	-40 °C	dsPIC	10 bit 12 bit	18 count	8 bit	16 K	CANbus I2C IrDA LINbus SPI UART USART	64-TQFP	Surface Mount	3.6 V	3 V
Microchip Technology DSPIC33FJ64GP706A-I/PT	Digital Signal Controllers	53	16 Bit	FLASH	Internal	10 mm	64-TQFP	10 mm	64 K	8 bit	64 KB	40 MIPs	AC'97 Brown-out Detect DMA I2S POR PWM Reset WDT	85 °C	-40 °C	dsPIC	10 bit 12 bit	18 count	8 bit	16 K	CANbus I2C IrDA LINbus SPI UART USART	64-TQFP	Surface Mount	3.6 V	3 V
Microchip Technology DSPIC33FJ64GP706A-I/MR	Digital Signal Controllers	53	16 Bit	FLASH	Internal	9 mm	64-VQFN	9 mm	64 K	8 bit	64 KB	40 MIPs	AC'97 Brown-out Detect DMA I2S POR PWM Reset WDT	85 °C	-40 °C	dsPIC	10 bit 12 bit	18 count	8 bit	16 K	CANbus I2C IrDA LINbus SPI UART USART	64-VFQFN Exposed Pad	Surface Mount	3.6 V	3 V
Microchip Technology DSPIC33FJ64GP706AT-I/MR		53	16 Bit	FLASH	Internal	9 mm	64-VQFN	9 mm	64 K	8 bit	64 KB	40 MIPs	AC'97 Brown-out Detect DMA I2S POR PWM Reset WDT	85 °C	-40 °C	dsPIC	10 bit 12 bit	18 count	8 bit	16 K	CANbus I2C IrDA LINbus SPI UART USART	64-VFQFN Exposed Pad	Surface Mount	3.6 V	3 V

Catalog

Description

•dsPIC33Fs are designed to execute digital filter algorithms and high-speed precision digital control loops, ideal for applications that need to perform under pressure •General Purpose Digital Signal Controllers (DSCs) with advanced analog and seamless migration options to PIC24F, PIC24H MCUs and dsPIC30F DSCs
