643652 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

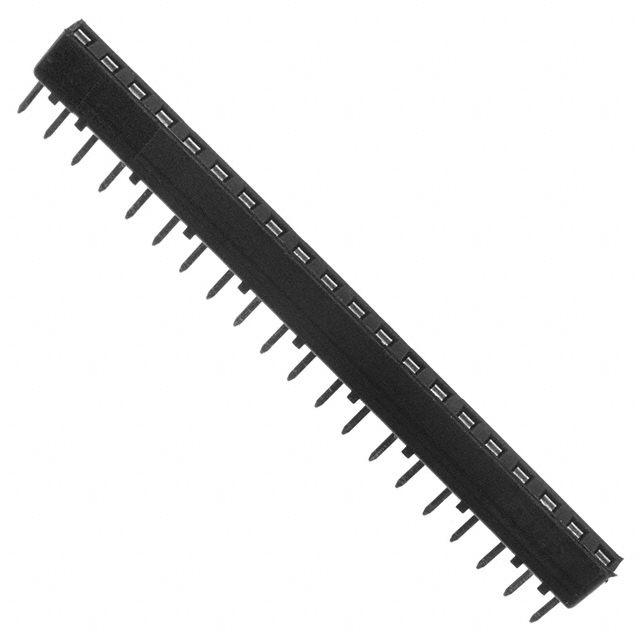

CONN SOCKET SIP 20POS TIN
| Part | Material Flammability Rating | Termination Post Length | Contact Material - Post | Type | Pitch - Mating | Housing Material | Pitch - Post | Grid Rows | Grid Columns | Number of Positions or Pins (Grid) | Operating Temperature (Min) | Operating Temperature (Max) | Contact Finish - Mating | Mounting Type | Contact Material - Mating | Contact Finish - Post | Features | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | UL94 V-0 | 0.13 in | Beryllium Copper | SIP | 0.1 in | Glass Filled Thermoplastic | 0.1 in | 1 | 20 | 20 | -55 °C | 105 °C | Tin | Through Hole | Beryllium Copper | Tin | Closed Frame | Solder |
