FUS 300V F/A CLASS T 150A
Description
AI

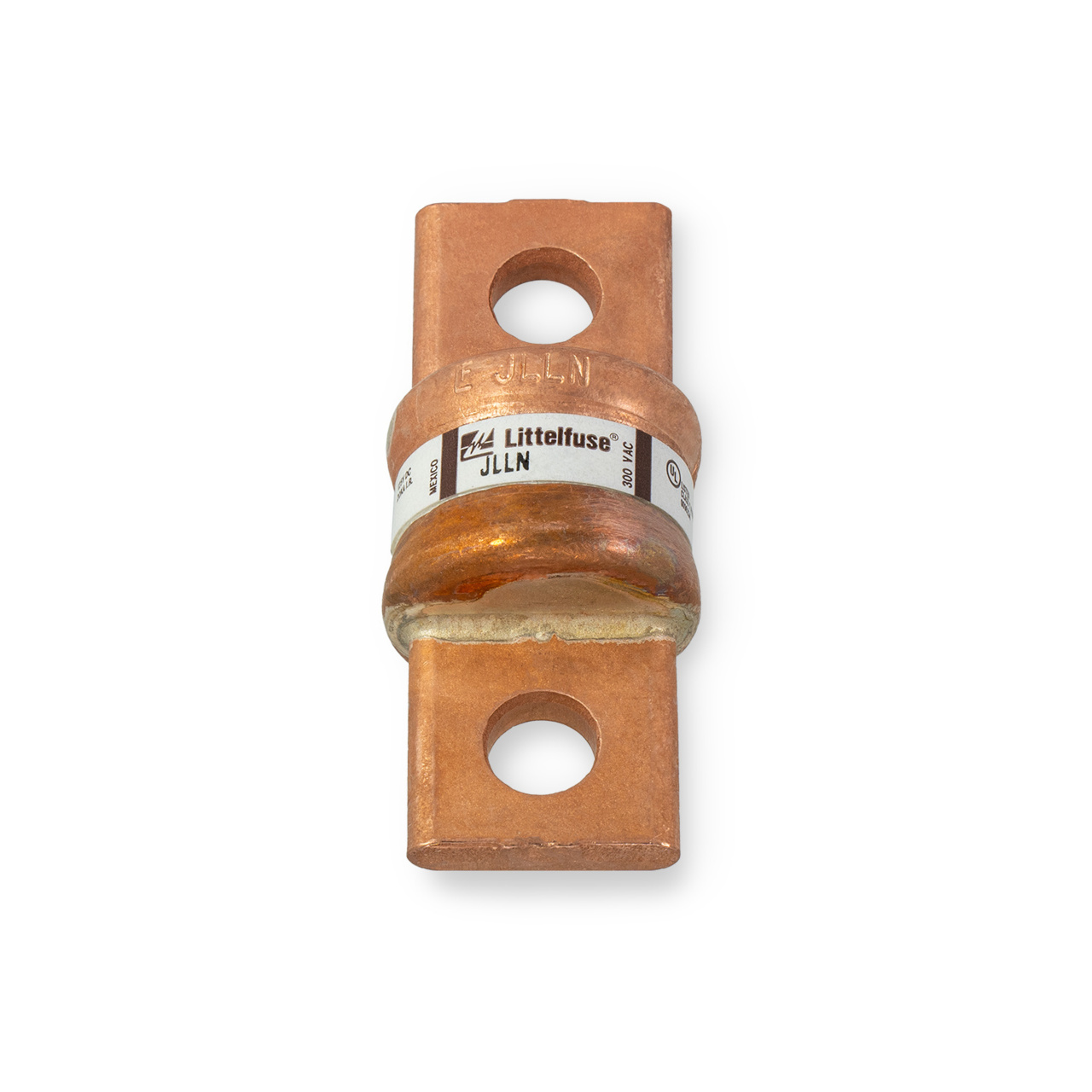

JLLN150 is a Class T fuse with an ampere rating of 150 and knife-blade-style construction.
Beta
⌘K
FUS 300V F/A CLASS T 150A
FUS 300V F/A CLASS T 150A
| Part | Applications | Voltage Rating - AC | Response Time | Approval Agency | Breaking Capacity (AC) | Breaking Capacity (DC) | Fuse Type | Class | Size / Dimension Length | Size / Dimension Diameter | Mounting Type | Package / Case | Voltage Rating - DC | Current Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | Electrical Industrial | 300 V | Fast Blow | CE CSA UL | 200 kA | 20 kA | Cartridge | T | 0.843 in | 1.063 in | Bolt Mount | Blade Terminal (Bolt) Cylindrical | 125 V | 150 A |
