A6MMS Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

IDC CABLE - ADM24S/AE24M/ADM24S

Part	Cable Termination	Number of Rows	Number of Positions	Color	Usage	Shielding	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Contact Finish	Connector Type	Length [x]	Length [x]	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Length
TE Connectivity Raychem Cable Protection A6MMS-2436M	IDC	2	24	Multiple Ribbon	Board In Socket (0.1")	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	Tin	DIP to DIP	3 ft	914.4 mm	2.54 µm	100 µin

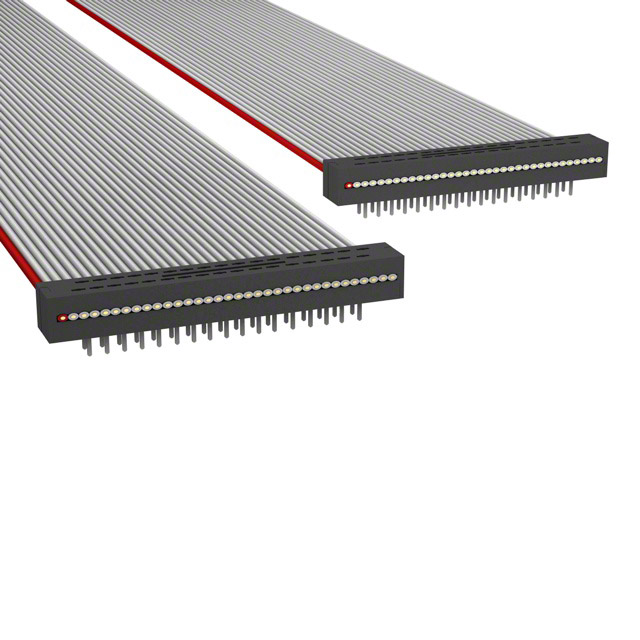

TE Connectivity Raychem Cable Protection A6MMS-3436G	IDC	2	34		Board In Socket (0.1")	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	Tin	DIP to DIP	3 ft	914.4 mm	2.54 µm	100 µin
TE Connectivity Raychem Cable Protection A6MMS-6018G	IDC	2	60		Board In Socket (0.1")	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	Tin	DIP to DIP	1.5 ft	457.2 mm	2.54 µm	100 µin

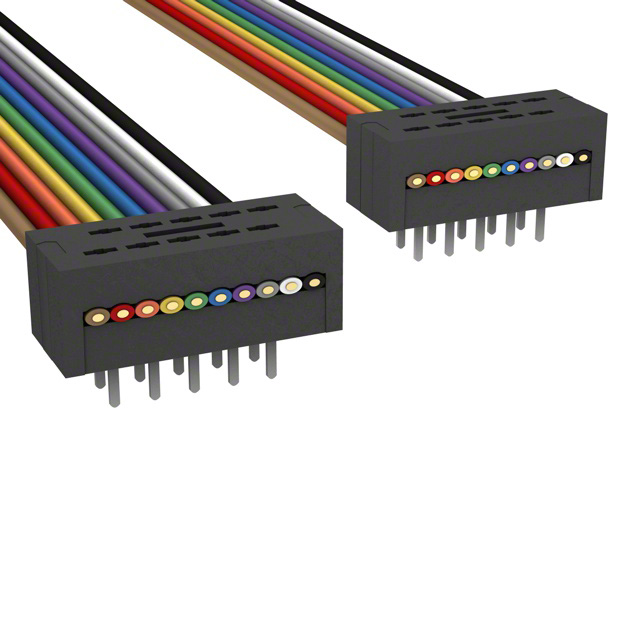

TE Connectivity Raychem Cable Protection A6MMS-1006M	IDC	2	10	Multiple Ribbon	Board In Socket (0.1")	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	Tin	DIP to DIP			2.54 µm	100 µin	152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A6MMS-6418G	IDC	2	64		Board In Socket (0.1")	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	Tin	DIP to DIP	1.5 ft	457.2 mm	2.54 µm	100 µin
TE Connectivity Raychem Cable Protection A6MMS-1418M	IDC	2	14	Multiple Ribbon	Board In Socket (0.1")	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	Tin	DIP to DIP	1.5 ft	457.2 mm	2.54 µm	100 µin
TE Connectivity Raychem Cable Protection A6MMS-6036M	IDC	2	60	Multiple Ribbon	Board In Socket (0.1")	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	Tin	DIP to DIP	3 ft	914.4 mm	2.54 µm	100 µin
TE Connectivity Raychem Cable Protection A6MMS-4018G	IDC	2	40		Board In Socket (0.1")	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	Tin	DIP to DIP	1.5 ft	457.2 mm	2.54 µm	100 µin
TE Connectivity Raychem Cable Protection A6MMS-4036M	IDC	2	40	Multiple Ribbon	Board In Socket (0.1")	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	Tin	DIP to DIP	3 ft	914.4 mm	2.54 µm	100 µin
TE Connectivity Raychem Cable Protection A6MMS-2006M	IDC	2	20	Multiple Ribbon	Board In Socket (0.1")	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	Tin	DIP to DIP			2.54 µm	100 µin	152.4 mm	6 "	0.5 '
