PIC16F18076 Series

Catalog

MICROCONTROLLER FAMILY WITH A SUITE OF DIGITAL AND ANALOG PERIPHERALS THAT ENABLE COST-SENSITIVE SENSOR AND REAL-TIME CONTROL APPLICATIONS

Part	Program Memory Type	Operating Temperature (Max)	Operating Temperature (Min)	Converter Architecture	D/A Resolution (bits)	A/D Resolution (bits)	D/A Channels	A/D Channels	Package Name	Package Length	Package Width	EEPROM Size (Width)	EEPROM Size (Depth)	Mounting Type	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Connectivity	Core Processor	Core Size (Bit Width)	Number of I/O	Peripherals	RAM Size Depth	RAM Size Width	Speed	Program Memory Size	Program Memory Width	Program Memory Depth	Oscillator Type	Package / Case	Type	Suggested Programming Environment	Board Type	Utilized IC / Part	Contents	Platform
Microchip Technology PIC16F18076-I/P	FLASH	85 °C	-40 °C	SAR	8 bit	10 bit	1 count	35 count	40-DIP 40-PDIP	0.6 in	15.24 mm	8 bit	256	Through Hole	1.8 V	5.5 V	I2C LINbus SPI UART USART	PIC	8 Bit	35	Brown-out Detect POR PWM Reset WDT	2 K	8 bit	32 MHz	28 KB	8 bit	28 K	External Internal
Microchip Technology PIC16F18076-I/PT	FLASH	85 °C	-40 °C	SAR	8 bit	10 bit	1 count	35 count	44‑TQFP	10 mm	10 mm	8 bit	256	Surface Mount	1.8 V	5.5 V	I2C LINbus SMBus SPI SSP UART USART	PIC	8 Bit	35	Brown-out Detect POR PWM Reset WDT	2 K	8 bit	32 MHz	28 KB	8 bit	28 K	External Internal	44-TQFP
Microchip Technology PIC16F18076-E/P	FLASH	125 °C	-40 °C	SAR	8 bit	10 bit	1 count	35 count	40-DIP 40-PDIP	0.6 in	15.24 mm	8 bit	256	Through Hole	1.8 V	5.5 V	I2C LINbus SMBus SPI SSP UART USART	PIC	8 Bit	35	Brown-out Detect POR PWM Reset WDT	2 K	8 bit	32 MHz	28 KB	8 bit	28 K	External Internal
Microchip Technology PIC16F18076T-I/MP	FLASH	85 °C	-40 °C	SAR	8 bit	10 bit	1 count	35 count	40-QFN	5 mm	5 mm	8 bit	256	Surface Mount	1.8 V	5.5 V	I2C LINbus SMBus SPI SSP UART USART	PIC	8 Bit	35	Brown-out Detect POR PWM Reset WDT	2 K	8 bit	32 MHz	28 KB	8 bit	28 K	External Internal	40-VFQFN Exposed Pad
Microchip Technology PIC16F18076-I/MP	FLASH	85 °C	-40 °C	SAR	8 bit	10 bit	1 count	39 count	40-QFN	5 mm	5 mm	8 bit	256	Surface Mount	1.8 V	5.5 V	I2C LINbus SPI UART USART	PIC	8 Bit	35	Brown-out Detect POR PWM Reset WDT	2 K	8 bit	32 MHz	28 KB	8 bit	28 K	External Internal	40-VFQFN Exposed Pad
Microchip Technology PIC16F18076-E/PT	FLASH	125 °C	-40 °C	SAR	8 bit	10 bit	1 count	35 count	44‑TQFP	10 mm	10 mm	8 bit	256	Surface Mount	1.8 V	5.5 V	I2C LINbus SMBus SPI SSP UART USART	PIC	8 Bit	35	Brown-out Detect POR PWM Reset WDT	2 K	8 bit	32 MHz	28 KB	8 bit	28 K	External Internal	44-TQFP
Microchip Technology PIC16F18076-E/MP	FLASH	125 °C	-40 °C	SAR	8 bit	10 bit	1 count	35 count	40-QFN	5 mm	5 mm	8 bit	256	Surface Mount	1.8 V	5.5 V	I2C LINbus SMBus SPI SSP UART USART	PIC	8 Bit	35	Brown-out Detect POR PWM Reset WDT	2 K	8 bit	32 MHz	28 KB	8 bit	28 K	External Internal	40-VFQFN Exposed Pad
Microchip Technology PIC16F18076T-I/PT	FLASH	85 °C	-40 °C	SAR	8 bit	10 bit	1 count	35 count	44‑TQFP	10 mm	10 mm	8 bit	256	Surface Mount	1.8 V	5.5 V	I2C LINbus SMBus SPI SSP UART USART	PIC	8 Bit	35	Brown-out Detect POR PWM Reset WDT	2 K	8 bit	32 MHz	28 KB	8 bit	28 K	External Internal	44-TQFP

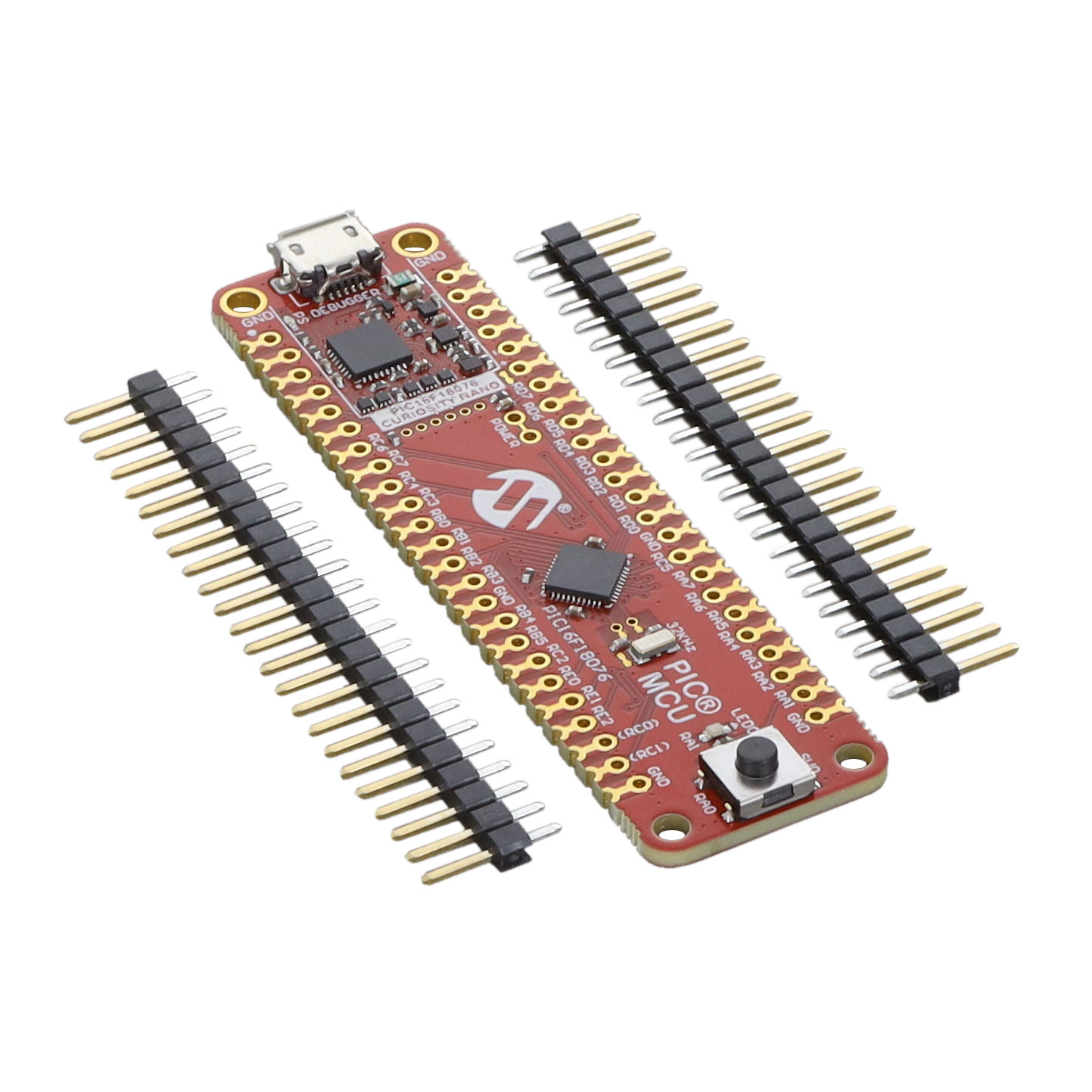

Microchip Technology EV53Z50A														Fixed				PIC												MCU 32-Bit MCU 8-Bit	MPLAB X	Evaluation Platform	PIC16F18076	Accessories Board	Curiosity Nano
