5535071 Series

Catalog

DIN 41612 CONNECTOR, EUROCARD SERIES, 48 CONTACTS, RECEPTACLE, 2.54 MM, 3 ROW, A + B + C

Part	Material - Insulation	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions Loaded	Level, Class	Number of Rows	Mounting Type	Contact Finish	Connector Type	Number of Positions	Termination	Style	Pitch

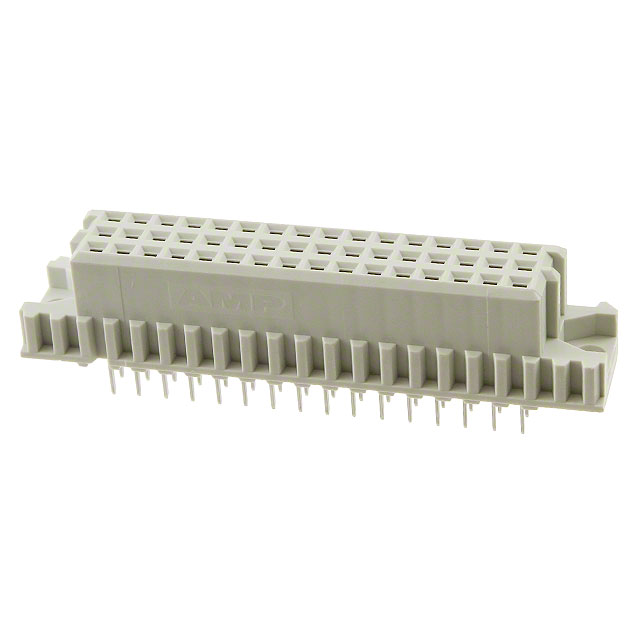

TE Connectivity AMP Connectors 5535071-4	Glass Filled Polymer Thermoplastic	UL94 V-0	125 °C	-55 °C	All	2	3	Through Hole	Gold	Female Sockets Receptacle	48	Solder	C/2 (1/2 C)	0.1 in
TE Connectivity AMP Connectors 5535071-5	Glass Filled Polymer Thermoplastic	UL94 V-0	125 °C	-55 °C	All	2	3	Through Hole	Gold	Female Sockets Receptacle	48	Solder	C/2 (1/2 C)	0.1 in
