94611 Series

Catalog

CONN HEADER VERT 36POS 2.54MM

Part	Contact Finish Thickness - Mating	Number of Positions Loaded	Overall Contact Length	Termination	Style	Fastening Type	Shrouding	Number of Positions	Material Flammability Rating	Contact Length - Post	Contact Material	Contact Shape	Insulation Height	Number of Rows	Pitch - Mating	Contact Length - Mating	Contact Type	Mounting Type	Contact Finish - Mating	Insulation Color	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Contact Finish - Post
Amphenol ICC (FCI) 94611-236H	15 µin	All	0.32 in	Solder	Board	Push-Pull	Unshrouded	36	UL94 V-0	0.095 in	Phosphor Bronze	Square	0.1 in	1	0.1 in	0.125 in	Male Pin	Through Hole	Gold GXT™	Black	Header
Amphenol ICC (FCI) 94611-203HLF	15 µin	All	0.32 in	Solder	Board	Push-Pull	Unshrouded	3	UL94 V-0	0.095 in	Phosphor Bronze	Square	0.1 in	1	0.1 in	0.125 in	Male Pin	Through Hole	Gold GXT™	Black	Header	125 °C	-65 °C	3 A
Amphenol ICC (FCI) 94611-431HLF	100 µin	All	0.32 in	Solder	Board	Push-Pull	Unshrouded	31	UL94 V-0	0.095 in	Phosphor Bronze	Square	0.1 in	1	0.1 in	0.125 in	Male Pin	Through Hole	Tin	Black	Header	125 °C	-65 °C	3 A	Tin

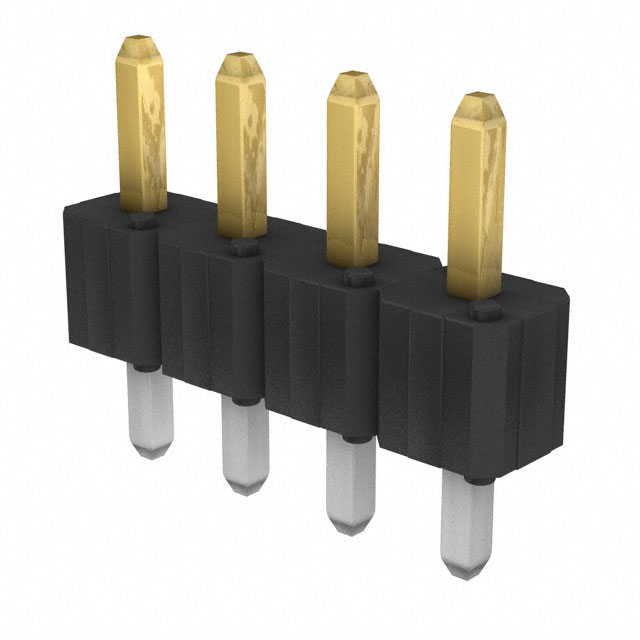

Amphenol ICC (FCI) 94611-104HLF	30 µin	All	0.32 in	Solder	Board	Push-Pull	Unshrouded	4	UL94 V-0	0.095 in	Phosphor Bronze	Square	0.1 in	1	0.1 in	0.125 in	Male Pin	Through Hole	Gold GXT™	Black	Header	125 °C	-65 °C	3 A
Amphenol ICC (FCI) 94611-108HLF	30 µin	All	0.32 in	Solder	Board	Push-Pull	Unshrouded	8	UL94 V-0	0.095 in	Phosphor Bronze	Square	0.1 in	1	0.1 in	0.125 in	Male Pin	Through Hole	Gold GXT™	Black	Header	125 °C	-65 °C	3 A
Amphenol ICC (FCI) 94611-419HLF	100 µin	All	0.32 in	Solder	Board	Push-Pull	Unshrouded	19	UL94 V-0	0.095 in	Phosphor Bronze	Square	0.1 in	1	0.1 in	0.125 in	Male Pin	Through Hole	Tin	Black	Header	125 °C	-65 °C	3 A	Tin
Amphenol ICC (FCI) 94611-429HLF	100 µin	All	0.32 in	Solder	Board	Push-Pull	Unshrouded	29	UL94 V-0	0.095 in	Phosphor Bronze	Square	0.1 in	1	0.1 in	0.125 in	Male Pin	Through Hole	Tin	Black	Header	125 °C	-65 °C	3 A	Tin
Amphenol ICC (FCI) 94611-236HLF	15 µin	All	0.32 in	Solder	Board	Push-Pull	Unshrouded	36	UL94 V-0	0.095 in	Phosphor Bronze	Square	0.1 in	1	0.1 in	0.125 in	Male Pin	Through Hole	Gold GXT™	Black	Header	125 °C	-65 °C	3 A
Amphenol ICC (FCI) 94611-432HLF	100 µin	All	0.32 in	Solder	Board	Push-Pull	Unshrouded	32	UL94 V-0	0.095 in	Phosphor Bronze	Square	0.1 in	1	0.1 in	0.125 in	Male Pin	Through Hole	Tin	Black	Header	125 °C	-65 °C	3 A	Tin
Amphenol ICC (FCI) 94611-118HLF	30 µin	All	0.32 in	Solder	Board	Push-Pull	Unshrouded	18	UL94 V-0	0.095 in	Phosphor Bronze	Square	0.1 in	1	0.1 in	0.125 in	Male Pin	Through Hole	Gold GXT™	Black	Header	125 °C	-65 °C	3 A
