1776119 Series

Catalog

CONN EUROSTYLE BLOCK F 4 POS 5.08MM SOLDER ST THRU-HOLE 10A/CONTACT

Part	Current	Mounting Type	Pitch	Mating Orientation	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Number of Levels	Wire Termination	Positions Per Level	Color	Voltage	Clamp Material	Clamp Plating	Housing Material	Screw Thread	Contact Material	Plating	Torque - Screw	Screw Material	Screw Plating

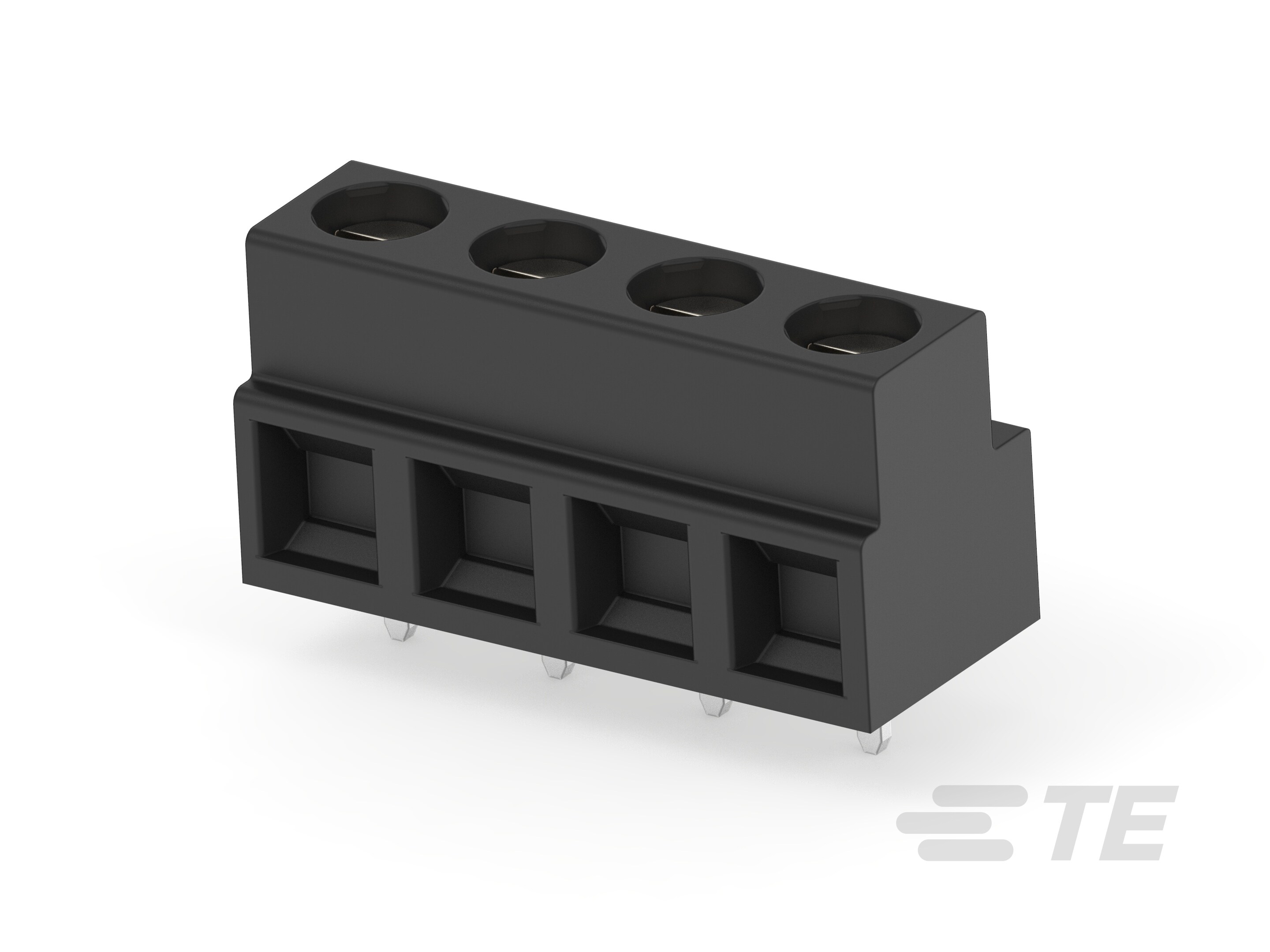

TE Connectivity AMP Connectors 1776119-4	13.5 A	Through Hole	5.08 mm	Horizontal with Board	16 AWG	30 AWG	1	Rising Cage Clamp Screw	4	Black	300 V	Brass	Nickel Plated	Nylon PA Polyamide	M3	Brass	Tin Plated	0.68 Nm	Brass	Nickel Plated
TE Connectivity AMP Connectors 1776119-5	13.5 A	Through Hole	5.08 mm	Horizontal with Board	16 AWG	30 AWG	1	Rising Cage Clamp Screw	5	Black	300 V	Brass	Nickel Plated	Nylon PA Polyamide	M3	Brass	Tin Plated	0.68 Nm	Brass	Nickel Plated
TE Connectivity AMP Connectors 1776119-3	13.5 A	Through Hole	5.08 mm	Horizontal with Board	16 AWG	30 AWG	1	Rising Cage Clamp Screw	3	Black	300 V	Brass	Nickel Plated	Nylon PA Polyamide	M3	Brass	Tin Plated	0.68 Nm	Brass	Nickel Plated
TE Connectivity AMP Connectors 1776119-2	13.5 A	Through Hole	5.08 mm	Horizontal with Board	16 AWG	30 AWG	1	Rising Cage Clamp Screw	2	Black	300 V	Brass	Nickel Plated	Nylon PA Polyamide	M3	Brass	Tin Plated	0.68 Nm	Brass	Nickel Plated
