0FHM0001XPGLO Series

HOLDER - SMALL (MINI) BLADE 07XA

Catalog

HOLDER - SMALL (MINI) BLADE 07XA

Part	Mounting Type	Voltage	Fuse Width	Fuse Length	Number of Circuits	For Use With/Related Products	Fuseholder Type	Current Rating	Fuse Type	Termination Style
LITTELFUSE 0FHM0001XPGLO	Free Hanging (In-Line)	32 VDC	0.152 in	0.433 in	1	Miniature (ATM)	Holder	20 A	Blade	Wire Leads

Catalog

HOLDER - SMALL (MINI) BLADE 07XA

Description

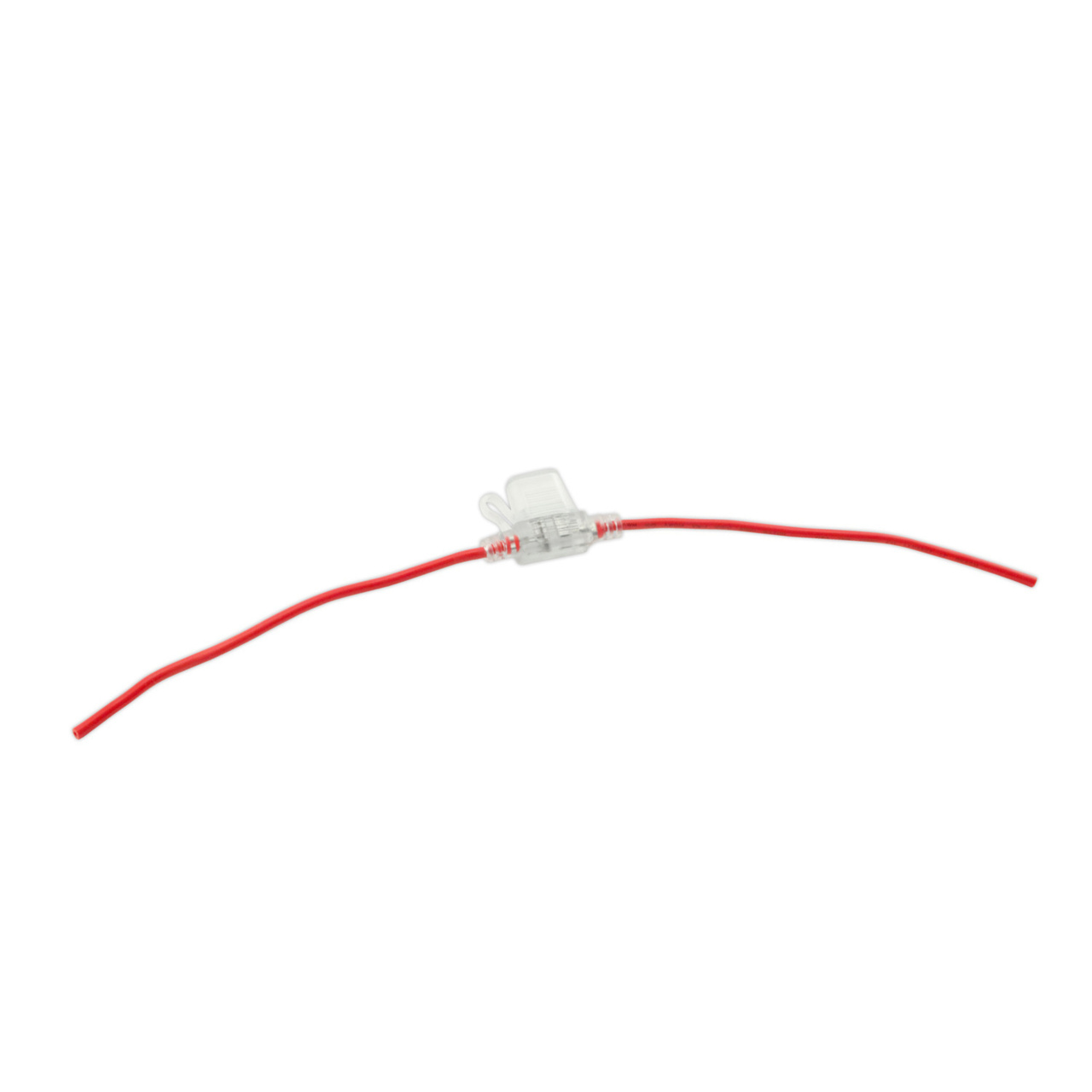

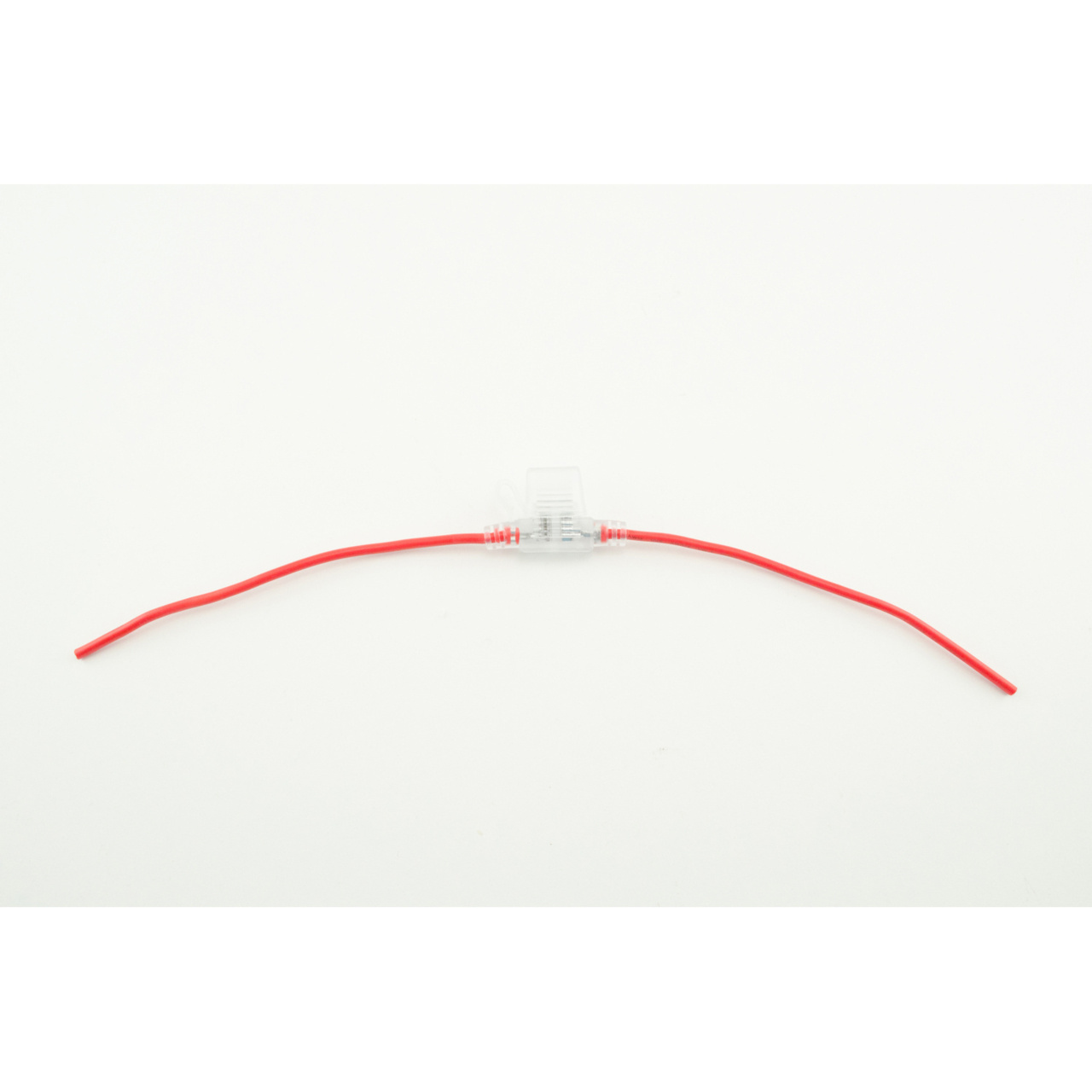

The MINI® FHM Series 32V Smart Glow In-Line Waterproof Blade Fuse Holder is ideal for adding accessory and remote circuit protection in automotive and marine applications. It features an integrated cover, which connects with the fuse holder body to form a sealed enclosure that meets IP67 dustproof and waterproof standards. This configuration of the MINI® FHM Series fuse holder (0FHM0001XPGLO) features a clear body and cover so you can easily view whether the installed Smart Glow fuse (sold separately) is blown. The 3.7" (94mm) 14 AWG UL-1015 wire leads with red insulation make in-line installation simple.
