ATSAMD10 Series

Catalog

ARM MCU, SAM 32 FAMILY SAM D1X SERIES MICROCONTROLLERS, ARM CORTEX-M0+, 32 BIT, 48 MHZ, 8 KB

Part	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Speed	Number of I/O	RAM Size Depth	RAM Size Width	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Core Processor	Program Memory Depth	Program Memory Width	Program Memory Size	A/D Resolution (bits)	D/A Resolution (bits)	D/A Channels	A/D Channels	Connectivity	Oscillator Type	Peripherals	Core Size (Bit Width)	Package Length	Package Name	Package Width	Program Memory Type	Core Configuration	Package / Case	Interconnect System	Board Type	Suggested Programming Environment	Platform	Utilized IC / Part	Contents	Type
Microchip Technology ATSAMD10D13A-SSNT	105 °C	-40 °C	Surface Mount	48 MHz	18	4 K	8 bit	1.62 V	3.63 V	ARM® Cortex®-M0+	8 K	8 bit	8 KB	12 bit	10 bit	1 count	10 count	I2C LINbus SPI UART USART	Internal	Brown-out Detect DMA POR Reset WDT	32 Bit	0.295 in	20-SOIC	7.5 mm	FLASH	Single-Core
Microchip Technology ATSAMD10D14A-SSNT	105 °C	-40 °C	Surface Mount	48 MHz	18	4 K	8 bit	1.62 V	3.63 V	ARM® Cortex®-M0+	16 K	8 bit	16 KB	12 bit	10 bit	1 count	8 count	I2C LINbus SPI UART USART	Internal	Brown-out Detect DMA POR Reset WDT	32 Bit	0.295 in	20-SOIC	7.5 mm	FLASH	Single-Core
Microchip Technology ATSAMD10C14A-SSNT	105 °C	-40 °C	Surface Mount	48 MHz	12	4 K	8 bit	1.62 V	3.63 V	ARM® Cortex®-M0+	16 K	8 bit	16 KB	12 bit	10 bit	1 count	5 count	I2C LINbus SPI UART USART	Internal	Brown-out Detect DMA POR Reset WDT	32 Bit	0.154 in	14-SOIC	3.9 mm	FLASH	Single-Core
Microchip Technology ATSAMD10D14A-UUT	85 °C	-40 °C	Surface Mount	48 MHz	18	4 K	8 bit	1.62 V	3.63 V	ARM® Cortex®-M0+	16 K	8 bit	16 KB	12 bit	10 bit	1 count	8 count	I2C LINbus SPI UART USART	Internal	Brown-out Detect DMA POR Reset WDT	32 Bit	2.43 mm	20-WLCSP	1.93 mm	FLASH	Single-Core	20-XFBGA WLCSP
Microchip Technology ATSAMD10C13A-SSNT	105 °C	-40 °C	Surface Mount	48 MHz	12	4 K	8 bit	1.62 V	3.63 V	ARM® Cortex®-M0+	8 K	8 bit	8 KB	12 bit	10 bit	1 count	5 count	I2C LINbus SPI UART USART	Internal	Brown-out Detect DMA POR Reset WDT	32 Bit	0.154 in	14-SOIC	3.9 mm	FLASH	Single-Core
Microchip Technology ATSAMD10D14A-SSUT	85 °C	-40 °C	Surface Mount	48 MHz	18	4 K	8 bit	1.62 V	3.63 V	ARM® Cortex®-M0+	16 K	8 bit	16 KB	12 bit	10 bit	1 count	8 count	I2C LINbus SPI UART USART	Internal	Brown-out Detect DMA POR Reset WDT	32 Bit	0.295 in	20-SOIC	7.5 mm	FLASH	Single-Core
Microchip Technology ATSAMD10D14A-MUT	85 °C	-40 °C	Surface Mount	48 MHz	22	4 K	8 bit	1.62 V	3.63 V	ARM® Cortex®-M0+	16 K	8 bit	16 KB	12 bit	10 bit	1 count	10 count	I2C LINbus SPI UART USART	Internal	Brown-out Detect DMA POR Reset WDT	32 Bit	4 mm	24-QFN	4 mm	FLASH	Single-Core	24-VFQFN Exposed Pad
Microchip Technology ATSAMD10D14A-MNT	105 °C	-40 °C	Surface Mount	48 MHz	22	4 K	8 bit	1.62 V	3.63 V	ARM® Cortex®-M0+	16 K	8 bit	16 KB	12 bit	10 bit	1 count	10 count	I2C LINbus SPI UART USART	Internal	Brown-out Detect DMA POR Reset WDT	32 Bit	4 mm	24-QFN	4 mm	FLASH	Single-Core	24-VFQFN Exposed Pad
Microchip Technology ATSAMD10D13A-MNT	105 °C	-40 °C	Surface Mount	48 MHz	22	4 K	8 bit	1.62 V	3.63 V	ARM® Cortex®-M0+	8 K	8 bit	8 KB	12 bit	10 bit	1 count	10 count	I2C LINbus SPI UART USART	Internal	Brown-out Detect DMA POR Reset WDT	32 Bit	4 mm	24-QFN	4 mm	FLASH	Single-Core	24-VFQFN Exposed Pad

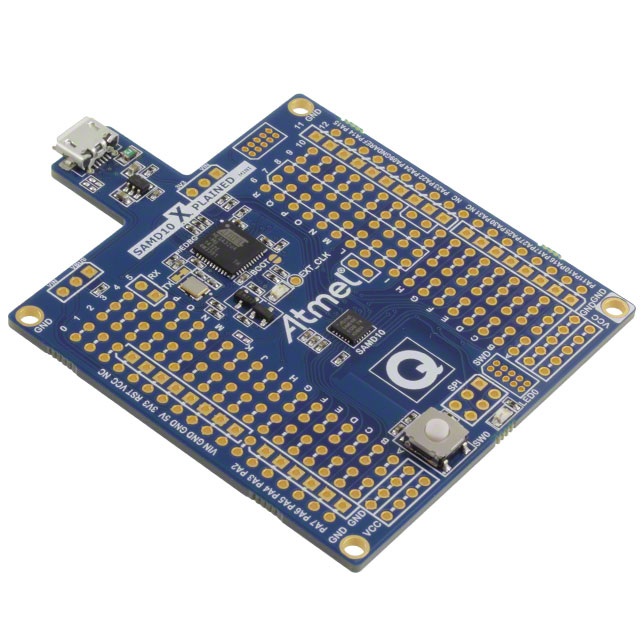

Microchip Technology ATSAMD10-XMINI			Fixed							ARM® Cortex®-M0+																		Arduino R3 Shield Xplained Pro	Evaluation Platform	Atmel Studio	SAM D10 Xplanned Mini	ATSAMD10	Board	MCU 32-Bit

Catalog

Description

A low-power, high-performance ARM® Cortex®-M0+ based flash microcontroller, the Microchip's ATSAMD10D13 is ideal for a wide range of home automation, consumer, metering, and industrial applications. It features: * 8KB of flash memory and 4KB of SRAM * Up to 48MHz operating frequency * Three serial communication modules (SERCOM) configurable as UART/USART, SPI or I2C, two 16-bit timer/counters, 32-bit Real-Time Clock and calendar, 12 PWM channels, one 8- or 10-channel 12-bit ADC, one 10-bit DAC * Supports 7/12 self-capacitance touch channels in low/high pincount devices * Supports 72 mutual-capacitance touch channels * 1.62V to 3.63V power supply * Easy pin migration to SAMD10C devices * Supported by Atmel Studio, ASF and the SAM D10 Xplained Mini kit Supported by MPLAB X IDE and [MPLAB Harmony](https://www.microchip.com/en-us/tools-resources/configure/mplab-harmony).
