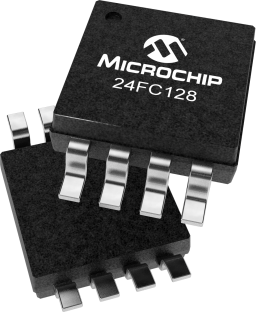

24FC128 Series

Catalog

EEPROM SERIAL-I2C 128K-BIT 16K X 8 1.8V/2.5V/3.3V/5V 8-PIN MSOP TUBE AUTOMOTIVE AEC-Q100

Part	Access Time	Memory Depth	Memory Width	Technology	Memory Type	Clock Frequency	Package Width	Package Name	Package Length	Memory Size	Write Cycle Time - Word	Write Cycle Time - Page	Mounting Type	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Memory Format	Operating Temperature (Max)	Operating Temperature (Min)	Memory Interface (Type)	Package / Case
Microchip Technology 24FC128-I/MS	400 ns	16 K	8 bit	EEPROM	Non-Volatile	1 MHz	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	16 KB	5 ms	5 ms	Surface Mount	1.7 V	5.5 V	EEPROM	85 °C	-40 °C	I2C
Microchip Technology 24FC128T-I/MS	400 ns	16 K	8 bit	EEPROM	Non-Volatile	1 MHz	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	16 KB	5 ms	5 ms	Surface Mount	1.7 V	5.5 V	EEPROM	85 °C	-40 °C	I2C
Microchip Technology 24FC128T-I/SM	400 ns	16 K	8 bit	EEPROM	Non-Volatile	1 MHz	5.3 mm	8-SOIC 8-SOIJ	0.209 in	16 KB	5 ms	5 ms	Surface Mount	1.7 V	5.5 V	EEPROM	85 °C	-40 °C	I2C
Microchip Technology 24FC128T-I/MNY	400 ns	16 K	8 bit	EEPROM	Non-Volatile	1 MHz	3 mm	8-TDFN	2 mm	16 KB	5 ms	5 ms	Surface Mount	1.7 V	5.5 V	EEPROM	85 °C	-40 °C	I2C	8-WFDFN Exposed Pad
Microchip Technology 24FC128-I/P	400 ns	16 K	8 bit	EEPROM	Non-Volatile	1 MHz	7.62 mm	8-DIP 8-PDIP	0.3 in	16 KB	5 ms	5 ms	Through Hole	1.7 V	5.5 V	EEPROM	85 °C	-40 °C	I2C
Microchip Technology 24FC128T-I/ST	400 ns	16 K	8 bit	EEPROM	Non-Volatile	1 MHz	4.4 mm	8-TSSOP	0.173 in	16 KB	5 ms	5 ms	Surface Mount	1.7 V	5.5 V	EEPROM	85 °C	-40 °C	I2C
Microchip Technology 24FC128-I/ST	400 ns	16 K	8 bit	EEPROM	Non-Volatile	1 MHz	4.4 mm	8-TSSOP	0.173 in	16 KB	5 ms	5 ms	Surface Mount	1.7 V	5.5 V	EEPROM	85 °C	-40 °C	I2C
Microchip Technology 24FC128T-I/SN	400 ns	16 K	8 bit	EEPROM	Non-Volatile	1 MHz	3.9 mm	8-SOIC	0.154 in	16 KB	5 ms	5 ms	Surface Mount	1.7 V	5.5 V	EEPROM	85 °C	-40 °C	I2C
Microchip Technology 24FC128-I/MF	400 ns	16 K	8 bit	EEPROM	Non-Volatile	1 MHz	5 mm	8-DFN-S	6 mm	16 KB	5 ms	5 ms	Surface Mount	1.7 V	5.5 V	EEPROM	85 °C	-40 °C	I2C	8-VDFN Exposed Pad
Microchip Technology 24FC128-I/SM	400 ns	16 K	8 bit	EEPROM	Non-Volatile	1 MHz	5.3 mm	8-SOIC 8-SOIJ	0.209 in	16 KB	5 ms	5 ms	Surface Mount	1.7 V	5.5 V	EEPROM	85 °C	-40 °C	I2C
