OKR-T Series

Catalog

NON ISOLATED BOARD MOUNT DC/DC CONVERTER, SIP, 15 W, 591 MV, 6 V, 3 A, 4.5 V ROHS COMPLIANT: YES

Part	Number of Outputs	Operating Temperature (Min)	Operating Temperature (Max)	Current - Output (Max)	Voltage - Output 1 (Max)	Voltage - Output 1 (Min)	Type	Voltage - Input (Min)	Mounting Type	Applications	Control Features	Package / Case	Features	Voltage - Input (Max)	Power (Watts)	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Efficiency	Package Name	Package Leads
Murata Electronics OKR-T/3-W12-C	1	-40 °C	85 °C	3 A	6 V	0.59 V	Non-Isolated PoL Module	4.5 V	Through Hole	ITE (Commercial)	Active High Enable	5-SIP Module	OCP OTP Remote On/Off SCP UVLO	14 V	15 W	0.65 in	0.3 in	0.41 in	93 %
Murata Electronics OKR-T/20-W12-C	1	-40 °C	85 °C	20 A	5 V	0.591 V	Non-Isolated PoL Module	6 V	Through Hole	ITE (Commercial)	Active High Enable		OCP OTP Remote On/Off SCP UVLO	13.8 V		0.61 in	0.44 in	1.45 in	94 %	10-SIP Module	10 Leads
Murata Electronics OKR-T/30-W12-C	1	-40 °C	70 °C	30 A	6 V	0.591 V	Non-Isolated PoL Module	5.5 V	Through Hole	ITE (Commercial)	Active High Enable		OCP OTP OVP Remote On/Off SCP UVLO	13.8 V		0.71 in	0.61 in	1.2 in	95 %	14-SIP Module	13 Leads
Murata Electronics OKR-T/1.5-W12-C	1	-40 °C	85 °C	1.5 A	6 V	0.591 V	Non-Isolated PoL Module	4.5 V	Through Hole	ITE (Commercial)	Active High Enable	5-SIP Module	OCP OTP Remote On/Off SCP UVLO	14 V	8 W	0.4 in	0.24 in	0.41 in	95.5 %
Murata Electronics OKR-T/10-W12-C	1	-40 °C	85 °C	10 A	6 V	0.591 V	Non-Isolated PoL Module	4.5 V	Through Hole	ITE (Commercial)	Active High Enable	5-SIP Module	OCP OTP Remote On/Off SCP UVLO	14 V	50 W	0.65 in	0.3 in	0.41 in	92 %

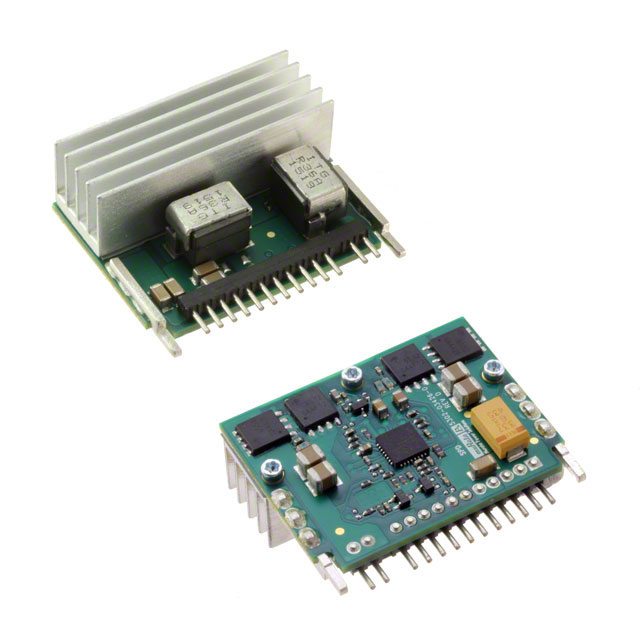

Murata Electronics OKR-T/50-W12-C	1	0 °C	70 °C	50 A	2.5 V	0.6 V	Non-Isolated PoL Module	6.5 V	Through Hole	ITE (Commercial)	Active High Enable	15-SIP Module	OCP OTP Remote On/Off UVLO	13.8 V		1.1 in	0.64 in	1.45 in	88.5 %
