1969588 Series

Catalog

HSG, REC, FREE-HANGING, SINGLE ROW,EP2.5 ROHS COMPLIANT: YES

Part	Note	Color	Mounting Type	Fastening Type	Connector Type	Contact Type	Number of Rows	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Contact Termination	Pitch	Insulation Material

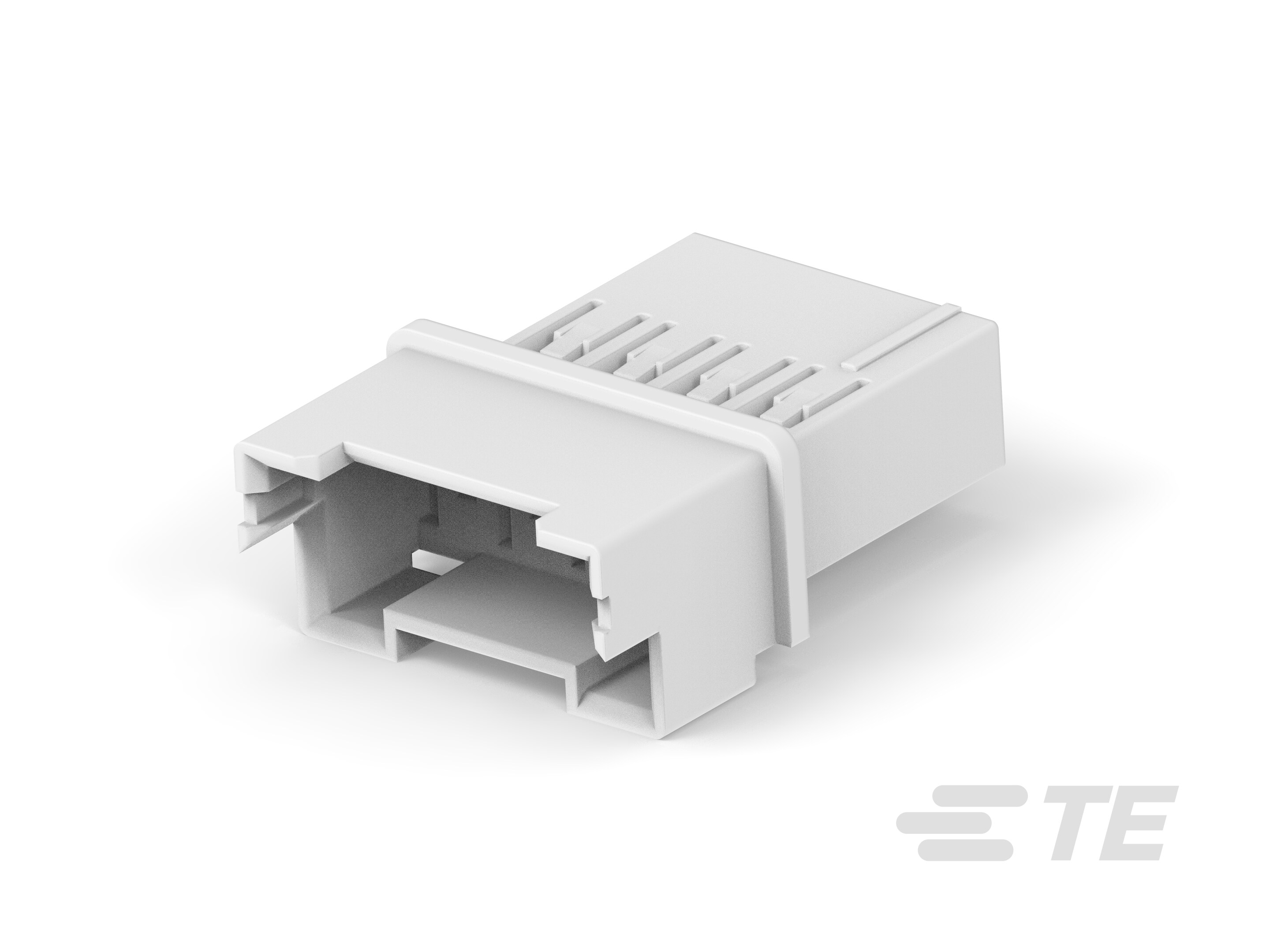

TE Connectivity AMP Connectors 1969588-4	Contacts Not Included	Natural	Free Hanging (In-Line)	Locking Ramp	Receptacle	Male Pin	1	105 °C	-25 °C	4	Crimp	0.098 in	Nylon Polyamide (PA)
TE Connectivity AMP Connectors 1969588-7	Contacts Not Included	Natural	Free Hanging (In-Line)	Locking Ramp	Receptacle	Male Pin	1	105 °C	-25 °C	7	Crimp	0.098 in	Nylon Polyamide (PA)
TE Connectivity AMP Connectors 1-1969588-2	Contacts Not Included	Natural	Free Hanging (In-Line)	Locking Ramp	Receptacle	Male Pin	1	105 °C	-25 °C	12	Crimp	0.098 in	Nylon Polyamide (PA)
TE Connectivity AMP Connectors 1-1969588-4	Contacts Not Included	Natural	Free Hanging (In-Line)	Locking Ramp	Receptacle	Male Pin	1	105 °C	-25 °C	14	Crimp	0.098 in	Nylon Polyamide (PA)

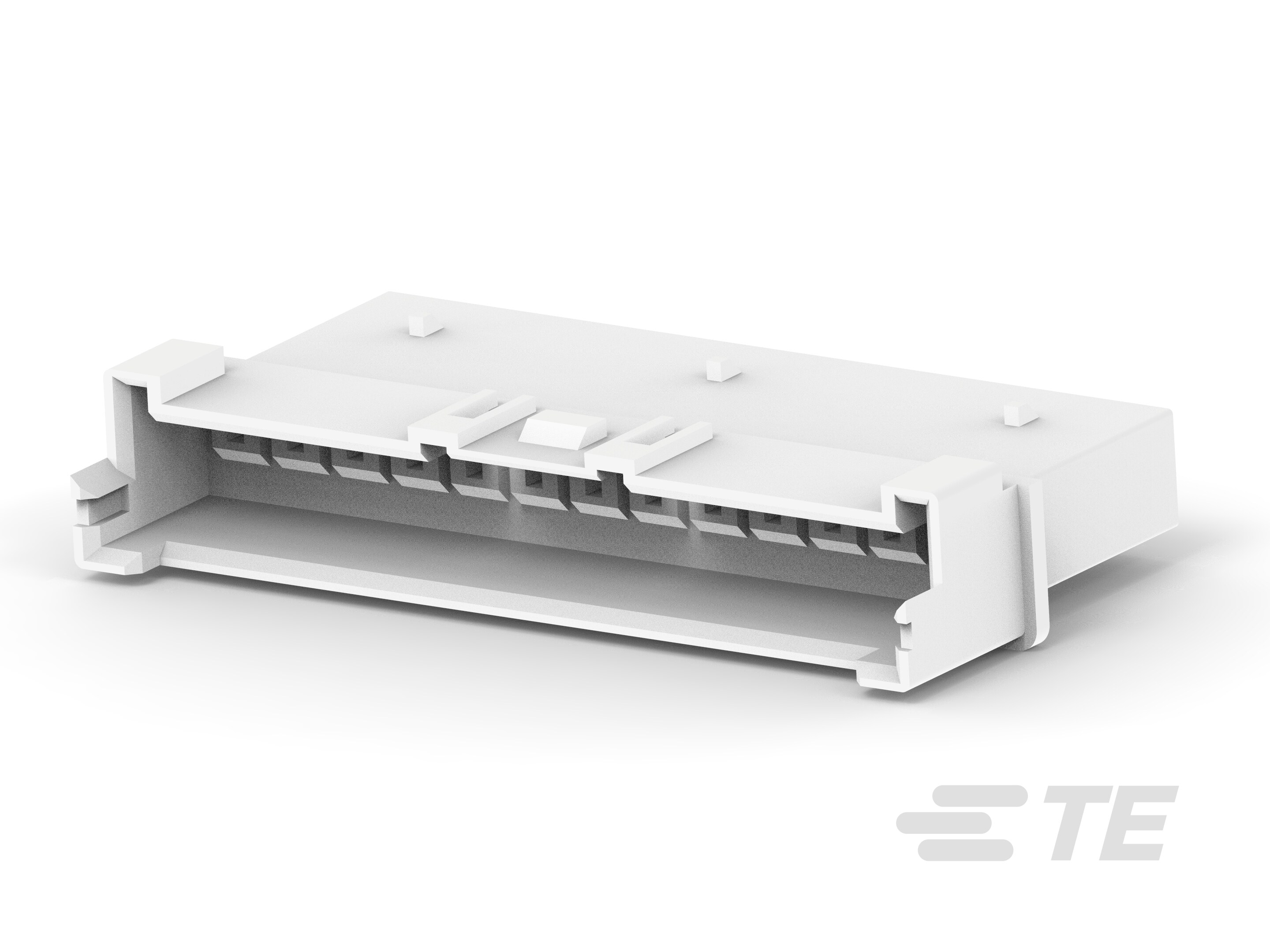

TE Connectivity AMP Connectors 1-1969588-3	Contacts Not Included	Natural	Free Hanging (In-Line)	Locking Ramp	Receptacle	Male Pin	1	105 °C	-25 °C	13	Crimp	0.098 in	Nylon Polyamide (PA)
