2350398 Series

Catalog

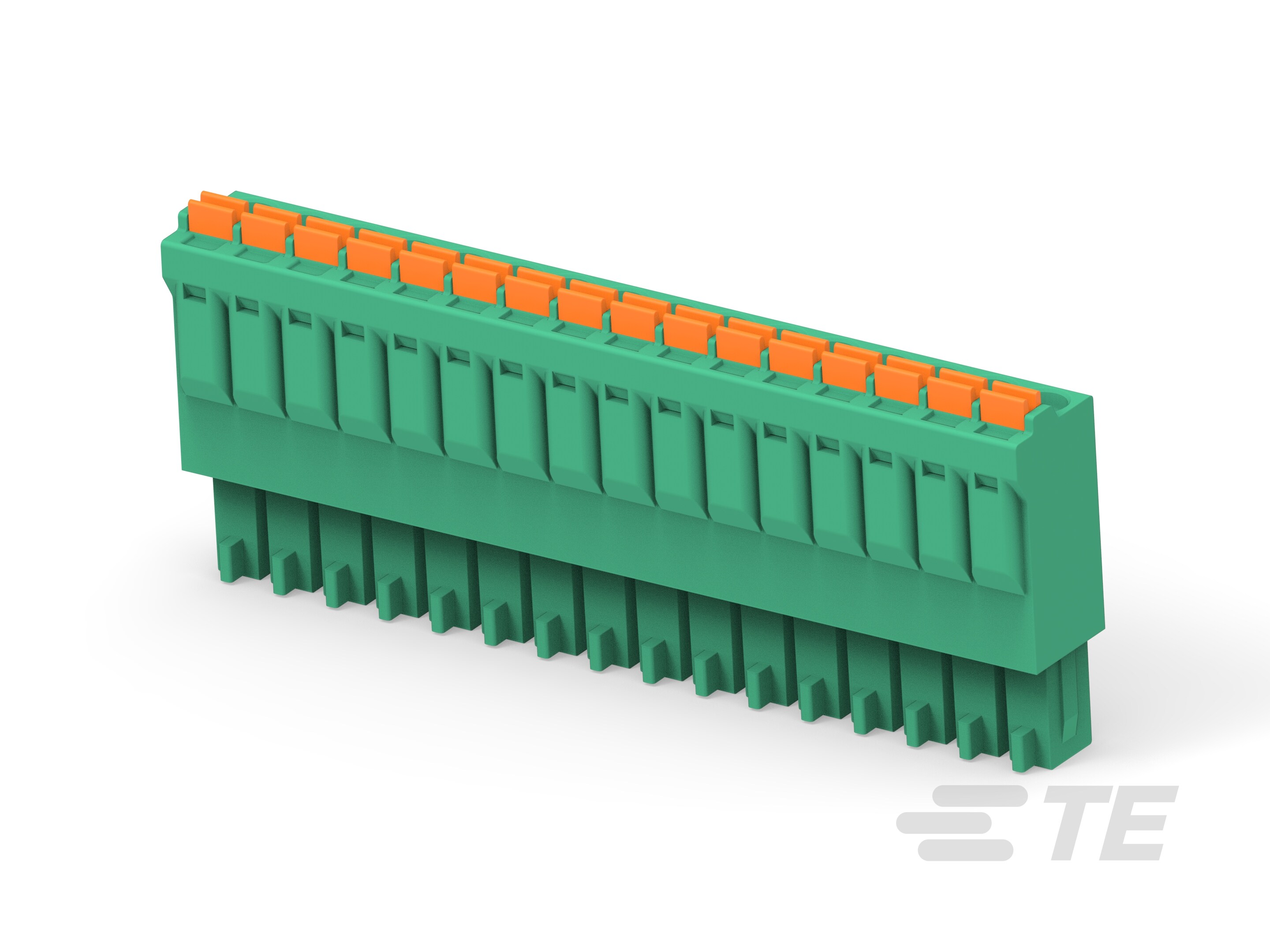

PLUGGABLE TERMINAL BLOCKS 16 POS SPRING TB PL UG , PITCH 3.50

Part	Pitch	Positions Per Level	Contact Mating Finish	Type	Number of Positions	Features	Voltage - UL	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Current - UL	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Plug Wire Entry Angle	Termination Style	Number of Levels	Color	Material Flammability Rating	Wire Strip Length (Min)	Wire Strip Length (Max)	Insulation Height	Housing Material	Contact Material
TE Connectivity AMP Connectors 1-2350398-6	0.138 in	16	Tin	Female Sockets Plug	16	Push Button Actuated	150 V	0.05 mm²	1.31 mm²	-40 °C	105 °C	Free Hanging (In-Line)	8 A	24 AWG	16 AWG	180 °	Push-In Spring Screwless - Leg Spring	1	Green	UL94 V-0	9 mm	10 mm	0.303 in	Nylon 6/6 PA66 Polyamide	Copper Alloy
TE Connectivity AMP Connectors 2350398-6	0.138 in	6	Tin	Female Sockets Plug	6	Push Button Actuated	150 V	0.05 mm²	1.31 mm²	-40 °C	105 °C	Free Hanging (In-Line)	8 A	24 AWG	16 AWG	180 °	Push-In Spring Screwless - Leg Spring	1	Green	UL94 V-0	9 mm	10 mm	0.303 in	Nylon 6/6 PA66 Polyamide	Copper Alloy
TE Connectivity AMP Connectors 2350398-3	0.138 in	3	Tin	Female Sockets Plug	3	Push Button Actuated	150 V	0.05 mm²	1.31 mm²	-40 °C	105 °C	Free Hanging (In-Line)	8 A	24 AWG	16 AWG	180 °	Push-In Spring Screwless - Leg Spring	1	Green	UL94 V-0	9 mm	10 mm	0.303 in	Nylon 6/6 PA66 Polyamide	Copper Alloy
