2342079 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PLUGGABLE TERMINAL BLOCKS 13POS HDR 90 DEG,HT 5.00MM PIT.,TL 2.6MM

Part	Features	Positions Per Level	Header Orientation Angle	Header Orientation	Current - UL	Type	Number of Levels	Voltage - UL	Pitch	Color	Number of Positions	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Contact Mating Finish	Mounting Type	Contact Tail Length	Housing Material	Material Flammability Rating	Insulation Height	Contact Material

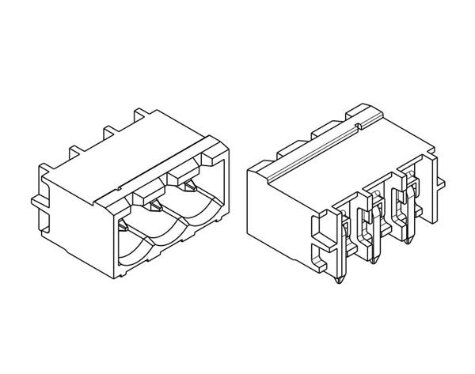

TE Connectivity AMP Connectors 1-2342079-3	High Temp Housing	13	90 °	Right Angle	11 A	Header Male Pins Shrouded (4 Side)	1	300 V	0.197 in	Black	13	Solder	-40 °C	105 °C	Tin	Through Hole	0.102 in	Nylon PA Polyamide	UL94 V-0	0.341 in	Copper Alloy
TE Connectivity AMP Connectors 1-2342079-2	High Temp Housing	12	90 °	Right Angle	11 A	Header Male Pins Shrouded (4 Side)	1	300 V	0.197 in	Black	12	Solder	-40 °C	105 °C	Tin	Through Hole	0.102 in	Nylon PA Polyamide	UL94 V-0	0.341 in	Copper Alloy
TE Connectivity AMP Connectors 1-2342079-7	High Temp Housing	17	90 °	Right Angle	11 A	Header Male Pins Shrouded (4 Side)	1	300 V	0.197 in	Black	17	Solder	-40 °C	105 °C	Tin	Through Hole	0.102 in	Nylon PA Polyamide	UL94 V-0	0.341 in	Copper Alloy
TE Connectivity AMP Connectors 2342079-7	High Temp Housing	7	90 °	Right Angle	11 A	Header Male Pins Shrouded (4 Side)	1	300 V	0.197 in	Black	7	Solder	-40 °C	105 °C	Tin	Through Hole	0.102 in	Nylon PA Polyamide	UL94 V-0	0.341 in	Copper Alloy
TE Connectivity AMP Connectors 1-2342079-4	High Temp Housing	14	90 °	Right Angle	11 A	Header Male Pins Shrouded (4 Side)	1	300 V	0.197 in	Black	14	Solder	-40 °C	105 °C	Tin	Through Hole	0.102 in	Nylon PA Polyamide	UL94 V-0	0.341 in	Copper Alloy
TE Connectivity AMP Connectors 1-2342079-5	High Temp Housing	15	90 °	Right Angle	11 A	Header Male Pins Shrouded (4 Side)	1	300 V	0.197 in	Black	15	Solder	-40 °C	105 °C	Tin	Through Hole	0.102 in	Nylon PA Polyamide	UL94 V-0	0.341 in	Copper Alloy
TE Connectivity AMP Connectors 1-2342079-1	High Temp Housing	11	90 °	Right Angle	11 A	Header Male Pins Shrouded (4 Side)	1	300 V	0.197 in	Black	11	Solder	-40 °C	105 °C	Tin	Through Hole	0.102 in	Nylon PA Polyamide	UL94 V-0	0.341 in	Copper Alloy
TE Connectivity AMP Connectors 1-2342079-8	High Temp Housing	18	90 °	Right Angle	11 A	Header Male Pins Shrouded (4 Side)	1	300 V	0.197 in	Black	18	Solder	-40 °C	105 °C	Tin	Through Hole	0.102 in	Nylon PA Polyamide	UL94 V-0	0.341 in	Copper Alloy
TE Connectivity AMP Connectors 1-2342079-9	High Temp Housing	19	90 °	Right Angle	11 A	Header Male Pins Shrouded (4 Side)	1	300 V	0.197 in	Black	19	Solder	-40 °C	105 °C	Tin	Through Hole	0.102 in	Nylon PA Polyamide	UL94 V-0	0.341 in	Copper Alloy

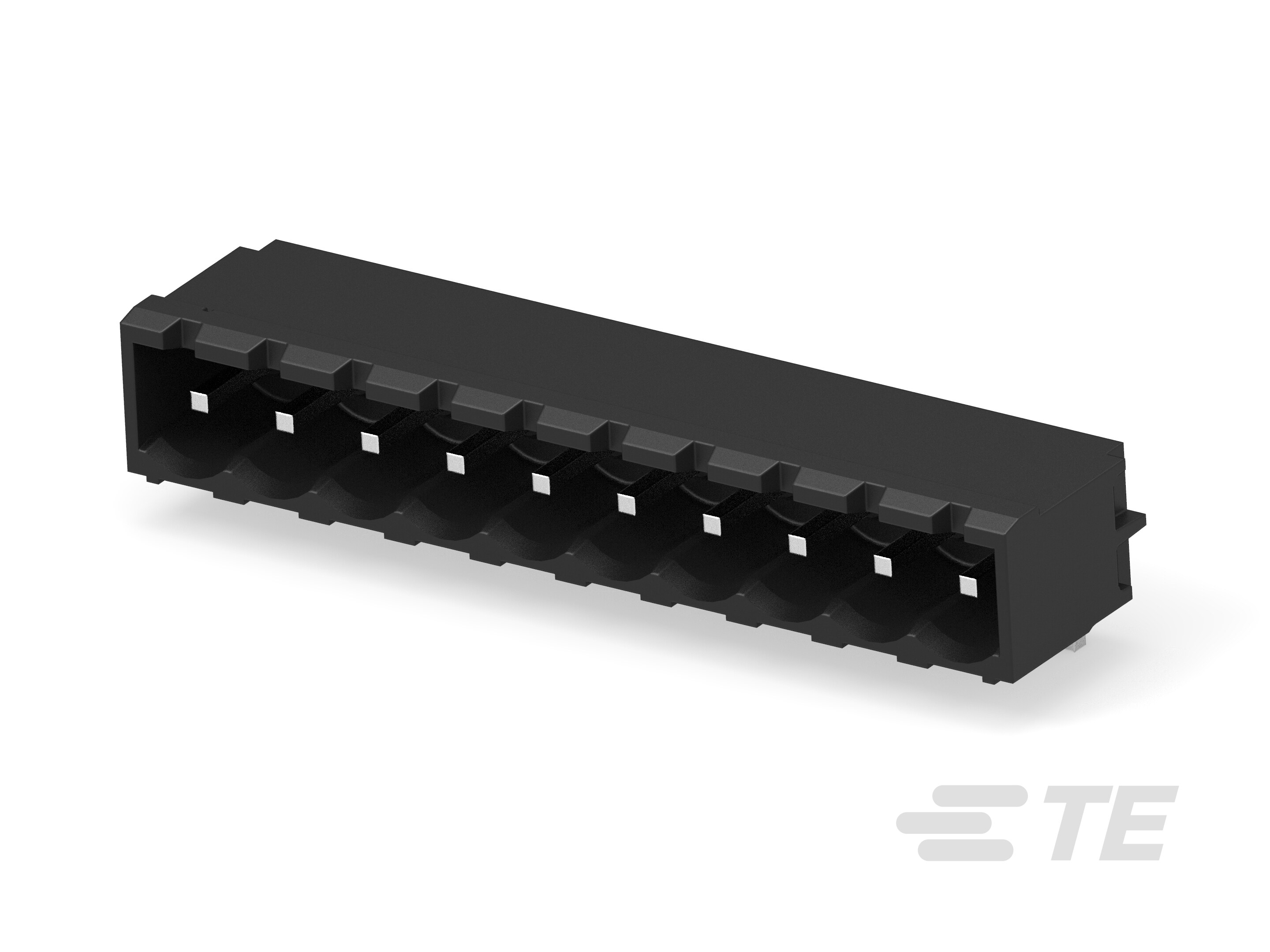

TE Connectivity AMP Connectors 1-2342079-0	High Temp Housing	10	90 °	Right Angle	11 A	Header Male Pins Shrouded (4 Side)	1	300 V	0.197 in	Black	10	Solder	-40 °C	105 °C	Tin	Through Hole	0.102 in	Nylon PA Polyamide	UL94 V-0	0.341 in	Copper Alloy
