747841 Series

Catalog

CONN D-SUB PLUG 15POS R/A SLDR

Part	Flange Feature	Termination	Number of Rows	Material Flammability Rating	Color	Features	Backset Spacing	Backset Spacing	Voltage Rating	Contact Type	Connector Type	Connector Style	Number of Positions	Shell Size, Connector Layout	Contact Finish	Current Rating (Amps)	Contact Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness
TE Connectivity Raychem Cable Protection 6-747841-8	Female Screwlock (4-40) Mating Side	Solder	2	UL94 V-0	Black	Board Lock Ground Strap Grounding Indents	8.08 mm	0.318 "	125 VDC	Signal	Male Pins Plug	D-Sub	15	2	Gold	6 A	Brass	Through Hole Right Angle	105 ░C	-55 °C
TE Connectivity Raychem Cable Protection 747841-2	Housing/Shell (Unthreaded)	Solder	2	UL94 V-0	Black	Board Lock Ground Strap Grounding Indents	8.08 mm	0.318 "	125 VDC	Signal	Male Pins Plug	D-Sub	15	2	Gold	6 A	Brass	Through Hole Right Angle	105 ░C	-55 °C

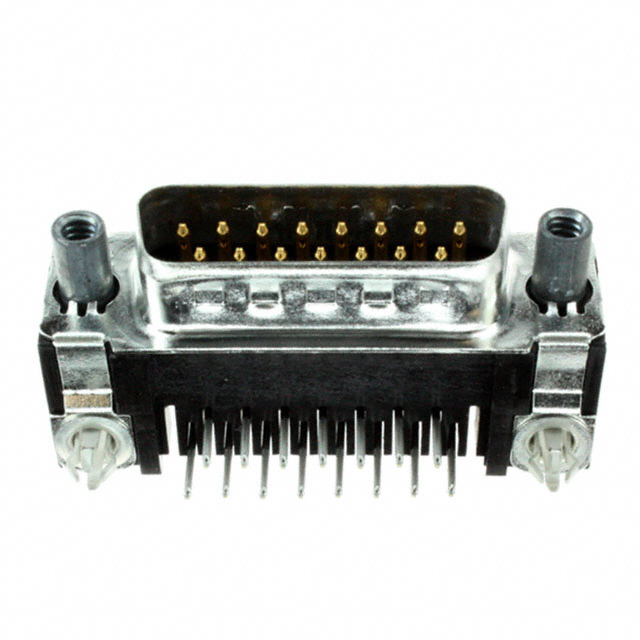

TE Connectivity Raychem Cable Protection 747841-6	Female Screwlock (4-40) Mating Side	Solder	2	UL94 V-0	Black	Board Lock Ground Strap Grounding Indents	8.08 mm	0.318 "	125 VDC	Signal	Male Pins Plug	D-Sub	15	2	Gold	6 A	Brass	Through Hole Right Angle	105 ░C	-55 °C

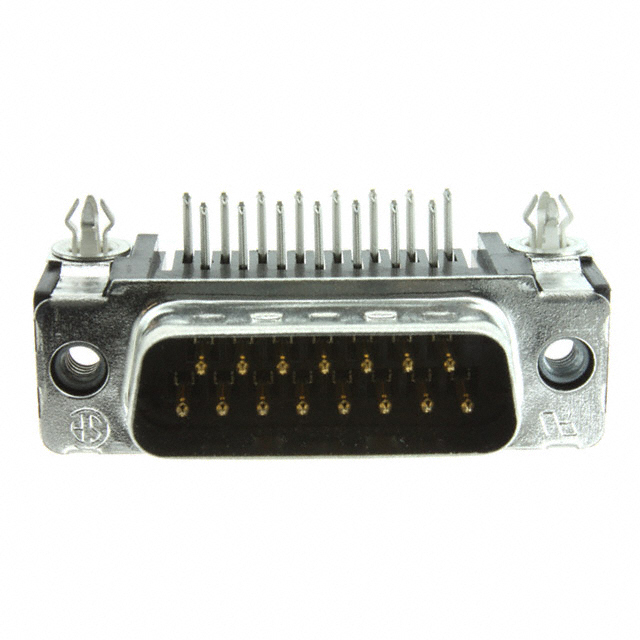

TE Connectivity Raychem Cable Protection 747841-3	Housing/Shell (4-40)	Solder	2	UL94 V-0	Black	Board Lock Ground Strap Grounding Indents	8.08 mm	0.318 "	125 VDC	Signal	Male Pins Plug	D-Sub	15	2	Gold	6 A	Brass	Through Hole Right Angle	105 ░C	-55 °C	Flash
