1776297 Series

Catalog

TSB5000431=EUROPA TRM BLK,10MM

Part	Number of Circuits	Voltage Rating	Number of Wire Entries	Top Termination	Barrier Type	Current Rating	Bottom Termination	Terminal Block Type	Number of Rows	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Pitch	Color	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Terminal Screw Material	Material - Insulation	Mounting Type	Terminal Screw Finish

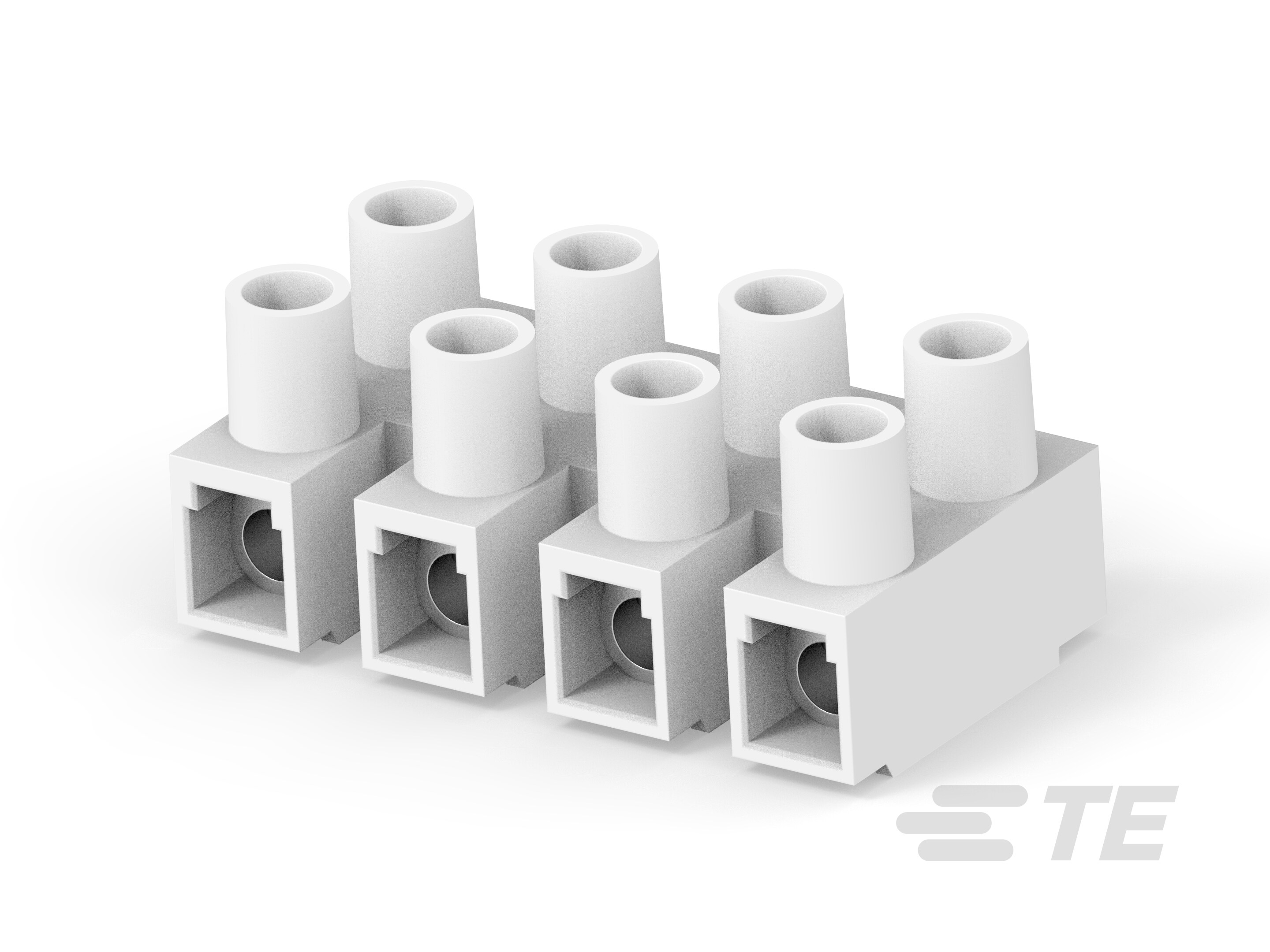

TE Connectivity AMP Connectors 1776297-4	4	250 V	8	Screws	Enclosed	30 A	Closed	Eurostyle Terminal Strip	2	22 AWG	10 AWG	0.394 in	Natural	UL94 V-2	100 °C	-35 °C	Steel	Nylon 6/6 PA66 Polyamide	Chassis Panel	Non-Hexavalent Chromate Zinc

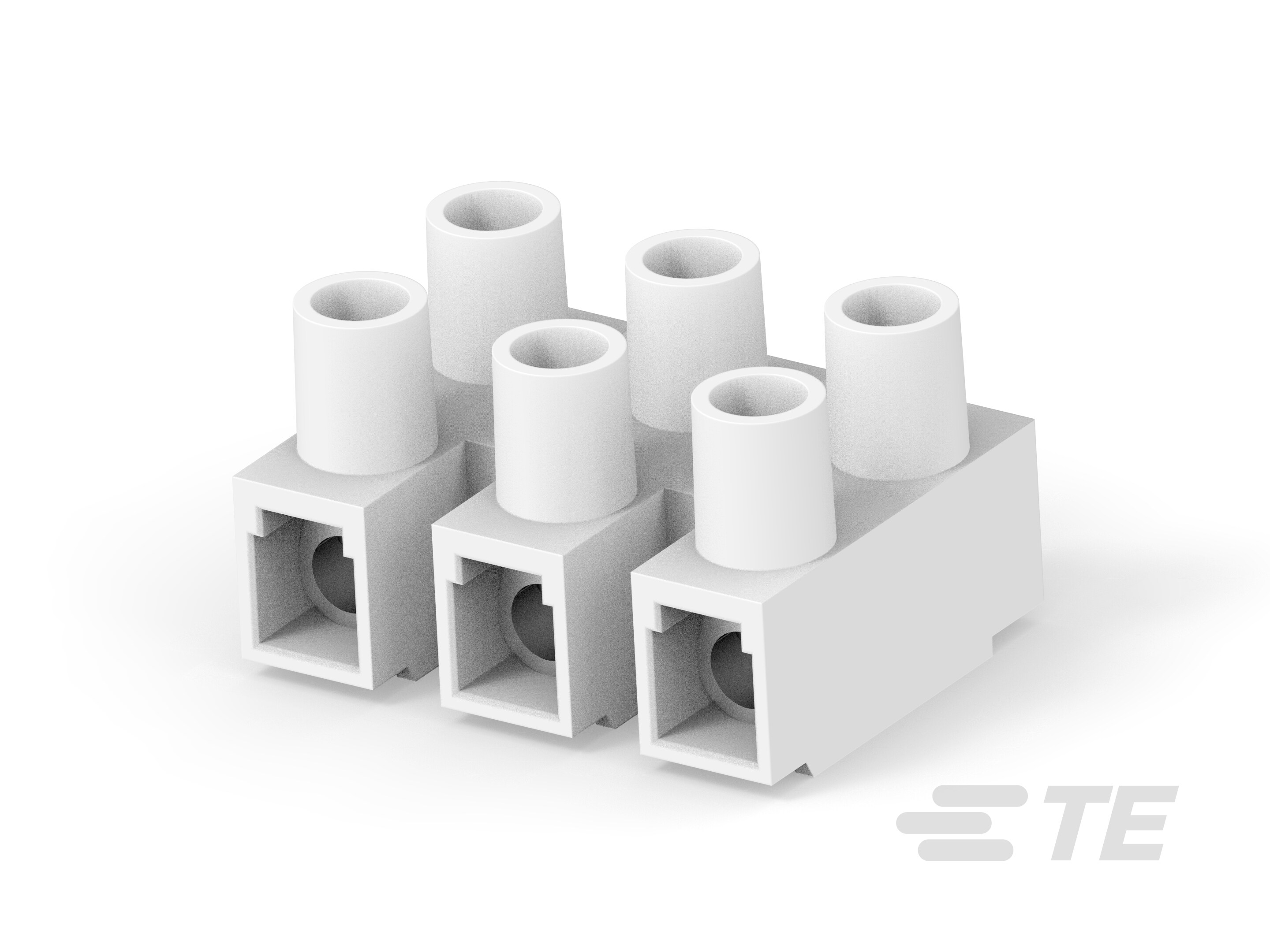

TE Connectivity AMP Connectors 1776297-3	3	250 V	6	Screws	Enclosed	30 A	Closed	Eurostyle Terminal Strip	2	22 AWG	10 AWG	0.394 in	Natural	UL94 V-2	100 °C	-35 °C	Steel	Nylon 6/6 PA66 Polyamide	Chassis Panel	Non-Hexavalent Chromate Zinc
TE Connectivity AMP Connectors 1776297-8	8	250 V	16	Screws	Enclosed	30 A	Closed	Eurostyle Terminal Strip	2	22 AWG	10 AWG	0.394 in	Natural	UL94 V-2	100 °C	-35 °C	Steel	Nylon 6/6 PA66 Polyamide	Chassis Panel	Non-Hexavalent Chromate Zinc
TE Connectivity AMP Connectors 1-1776297-2	12	250 V	24	Screws	Enclosed	30 A	Closed	Eurostyle Terminal Strip	2	22 AWG	10 AWG	0.394 in	Natural	UL94 V-2	100 °C	-35 °C	Steel	Nylon 6/6 PA66 Polyamide	Chassis Panel	Non-Hexavalent Chromate Zinc
