2375267 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

7P UNSHROUDED HEADER FULL PIN,NGWT

Part	Shrouding	Contact Length - Post	Contact Finish - Mating	Contact Length - Mating	Number of Positions	Voltage Rating	Voltage Rating (Type)	Contact Shape	Mounting Type	Overall Contact Length	Material Flammability Rating	Current Rating	Contact Type	Insulation Color	Contact Finish - Post	Style	Connector Type	Termination	Number of Rows	Number of Positions Loaded	Operating Temperature (Min)	Operating Temperature (Max)	Pitch - Mating	Contact Material	Fastening Type	Insulation Height	Contact Finish Thickness - Mating	Insulation Material	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 2375267-7	Shrouded - 1 Wall	0.146 in	Tin	0.303 in	7	600 V	DC	Square	Through Hole	0.567 in	UL94 V-0	12.3 A	Male Pin	Natural	Tin	Board Cable/Wire	Header	Solder	1	All	-55 °C	105 °C	0.156 in	Copper Alloy	Locking Ramp	0.362 in	78.7 Ąin	Resin	78.7 µin
TE Connectivity AMP Connectors 2375267-8	Shrouded - 1 Wall	0.146 in	Tin	0.303 in	8	600 V	DC	Square	Through Hole	0.567 in	UL94 V-0	12.3 A	Male Pin	Natural	Tin	Board Cable/Wire	Header	Solder	1	All	-55 °C	105 °C	0.156 in	Copper Alloy	Locking Ramp	0.362 in	78.7 Ąin	Resin	78.7 µin
TE Connectivity AMP Connectors 2375267-6	Shrouded - 1 Wall	0.146 in	Tin	0.303 in	6	600 V	DC	Square	Through Hole	0.567 in	UL94 V-0	12.3 A	Male Pin	Natural	Tin	Board Cable/Wire	Header	Solder	1	All	-55 °C	105 °C	0.156 in	Copper Alloy	Locking Ramp	0.362 in	78.7 Ąin	Resin	78.7 µin
TE Connectivity AMP Connectors 1-2375267-1	Shrouded - 1 Wall	0.146 in	Tin	0.303 in	11	600 V	DC	Square	Through Hole	0.567 in	UL94 V-0	12.3 A	Male Pin	Natural	Tin	Board Cable/Wire	Header	Solder	1	All	-55 °C	105 °C	0.156 in	Copper Alloy	Locking Ramp	0.362 in	78.7 Ąin	Resin	78.7 µin
TE Connectivity AMP Connectors 2375267-5	Shrouded - 1 Wall	0.146 in	Tin	0.303 in	5	600 V	DC	Square	Through Hole	0.567 in	UL94 V-0	12.3 A	Male Pin	Natural	Tin	Board Cable/Wire	Header	Solder	1	All	-55 °C	105 °C	0.156 in	Copper Alloy	Locking Ramp	0.362 in	78.7 Ąin	Resin	78.7 µin
TE Connectivity AMP Connectors 2375267-3	Shrouded - 1 Wall	0.146 in	Tin	0.303 in	3	600 V	DC	Square	Through Hole	0.567 in	UL94 V-0	12.3 A	Male Pin	Natural	Tin	Board Cable/Wire	Header	Solder	1	All	-55 °C	105 °C	0.156 in	Copper Alloy	Locking Ramp	0.362 in	78.7 Ąin	Resin	78.7 µin
TE Connectivity AMP Connectors 1-2375267-0	Shrouded - 1 Wall	0.146 in	Tin	0.303 in	10	600 V	DC	Square	Through Hole	0.567 in	UL94 V-0	12.3 A	Male Pin	Natural	Tin	Board Cable/Wire	Header	Solder	1	All	-55 °C	105 °C	0.156 in	Copper Alloy	Locking Ramp	0.362 in	78.7 Ąin	Resin	78.7 µin

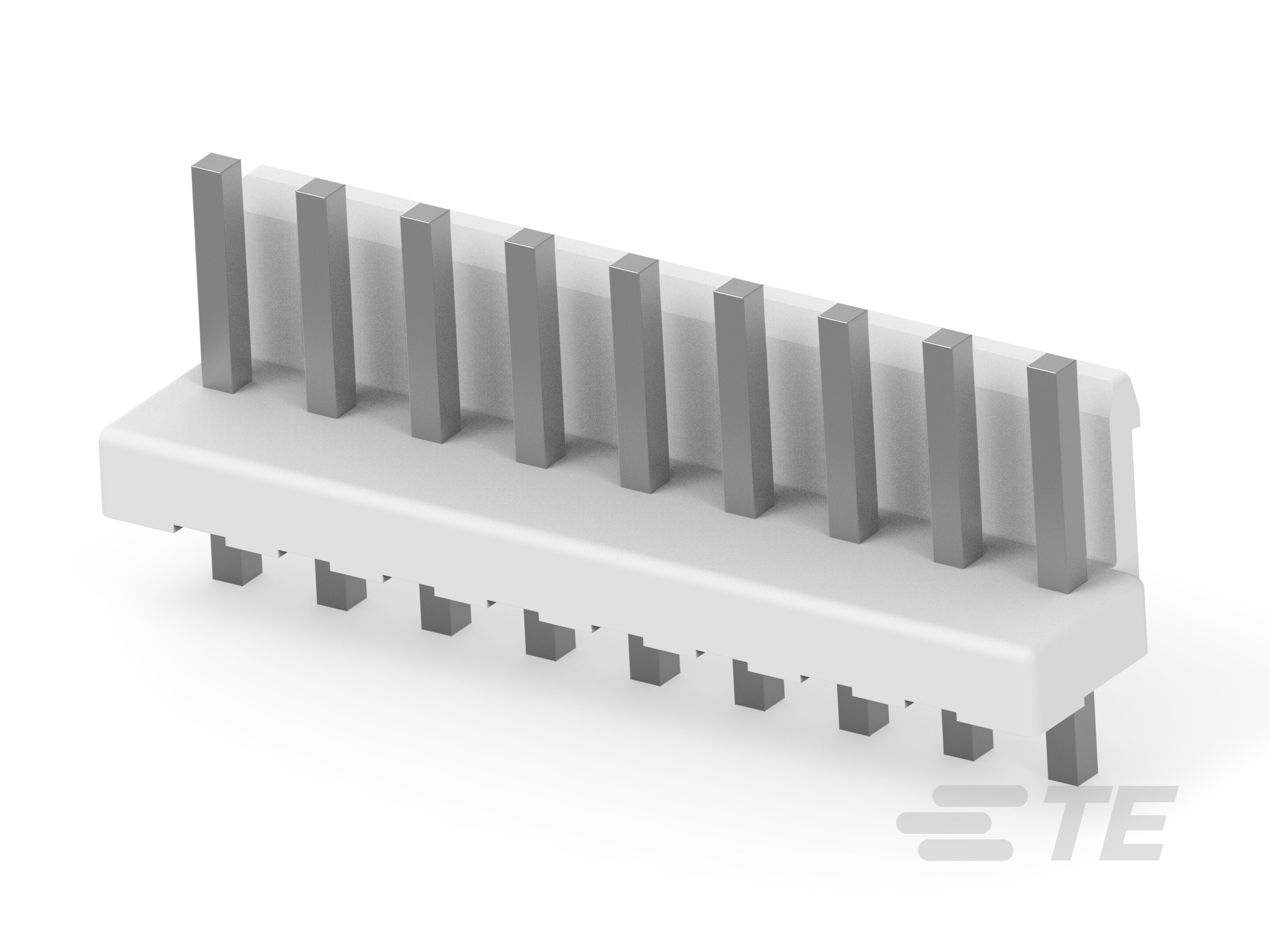

TE Connectivity AMP Connectors 2375267-9	Shrouded - 1 Wall	0.146 in	Tin	0.303 in	9	600 V	DC	Square	Through Hole	0.567 in	UL94 V-0	12.3 A	Male Pin	Natural	Tin	Board Cable/Wire	Header	Solder	1	All	-55 °C	105 °C	0.156 in	Copper Alloy	Locking Ramp	0.362 in	78.7 Ąin	Resin	78.7 µin
TE Connectivity AMP Connectors 2375267-2	Shrouded - 1 Wall	0.146 in	Tin	0.303 in	2	600 V	DC	Square	Through Hole	0.567 in	UL94 V-0	12.3 A	Male Pin	Natural	Tin	Board Cable/Wire	Header	Solder	1	All	-55 °C	105 °C	0.156 in	Copper Alloy	Locking Ramp	0.362 in	78.7 Ąin	Resin	78.7 µin
TE Connectivity AMP Connectors 2375267-4	Shrouded - 1 Wall	0.146 in	Tin	0.303 in	4	600 V	DC	Square	Through Hole	0.567 in	UL94 V-0	12.3 A	Male Pin	Natural	Tin	Board Cable/Wire	Header	Solder	1	All	-55 °C	105 °C	0.156 in	Copper Alloy	Locking Ramp	0.362 in	78.7 Ąin	Resin	78.7 µin
