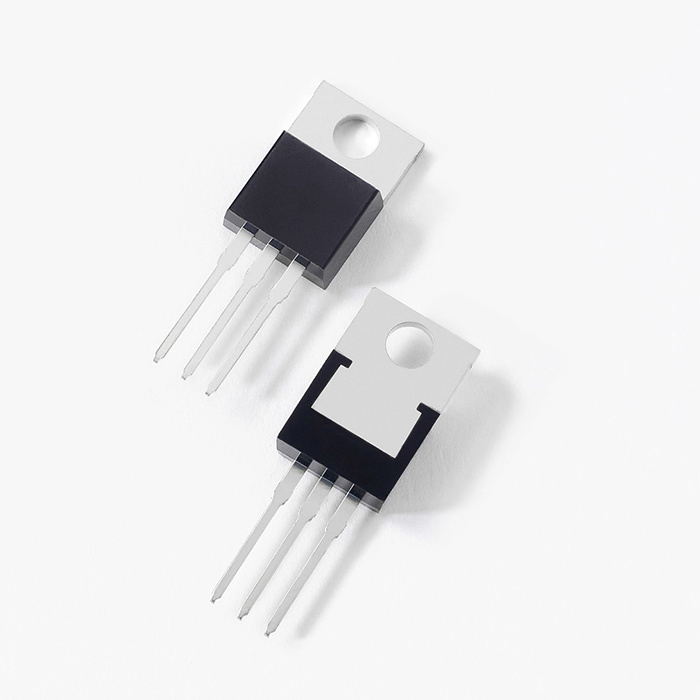

DUR1040CT Series

400V 10A Ultrafast Rectifier DUR series

Catalog

400V 10A Ultrafast Rectifier DUR series

Part	Current - Reverse Leakage	Mounting Type	Reverse Recovery Time (trr)	Package Name	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Diode Pair Count	Diode Configuration	Technology	Voltage - DC Reverse (Vr) (Max)	Package / Case	Speed - Fast Recovery (Maximum)	Speed - Fast Recovery (Minimum)	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max)
LITTELFUSE DUR1040CT	30 µA	Through Hole	45 ns	TO-220AB	150 °C	-55 °C	1 pair	Common Cathode	Standard	400 V	TO-220-3	500 ns	200 mA	5 A	1.3 V

Catalog

400V 10A Ultrafast Rectifier DUR series

Description

Littelfuse DUR1040CT series Ultrafast Recovery Rectifier is designed to meet the general requirements of commercial applications by providing low Trr, high-temperature, low-leakage and low forward voltage drop products. It is suitable for output rectifier, free-wheeling or boost diode in high-frequency power switching application such as switch mode power supply and DC-DC converters.
