282809 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERMI-BLOK PLUG STACKING 12P.1

Part	Number of Positions	Plug Wire Entry Angle	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Features	Mounting Type	Color	Current - UL	Pitch	Number of Levels	Type	Termination Style	Voltage - UL	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Positions Per Level	Operating Temperature (Min)	Operating Temperature (Max)	Contact Mating Finish	Screw Size	Wire Strip Length (Min)	Wire Strip Length (Max)	Contact Material	Material Flammability Rating	Insulation Height	Torque - Screw	Housing Material
TE Connectivity AMP Connectors 1-282809-2	12	180 °	30 AWG	12 AWG	Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	Green	15 A	0.4 in	1	Female Sockets Plug	Screw - Rising Cage Clamp	600 V	0.05 mm²	3 mm²	12	-40 °C	110 °C	Tin	M3	6 mm	7.5 mm	Phosphor Bronze	UL94 V-0	0.61 in	0.79 Nm	Nylon 6/6 PA66 Polyamide
TE Connectivity AMP Connectors 282809-4	4	180 °	30 AWG	12 AWG	Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	Green	15 A	0.4 in	1	Female Sockets Plug	Screw - Rising Cage Clamp	600 V	0.05 mm²	3 mm²	4	-40 °C	110 °C	Tin	M3	6 mm	7.5 mm	Phosphor Bronze	UL94 V-0	0.61 in	0.79 Nm	Nylon 6/6 PA66 Polyamide
TE Connectivity AMP Connectors 282809-7	7	180 °	30 AWG	12 AWG	Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	Green	15 A	0.4 in	1	Female Sockets Plug	Screw - Rising Cage Clamp	600 V	0.05 mm²	3 mm²	7	-40 °C	110 °C	Tin	M3	6 mm	7.5 mm	Phosphor Bronze	UL94 V-0	0.61 in	0.79 Nm	Nylon 6/6 PA66 Polyamide
TE Connectivity AMP Connectors 282809-5	5	180 °	30 AWG	12 AWG	Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	Green	15 A	0.4 in	1	Female Sockets Plug	Screw - Rising Cage Clamp	600 V	0.05 mm²	3 mm²	5	-40 °C	110 °C	Tin	M3	6 mm	7.5 mm	Phosphor Bronze	UL94 V-0	0.61 in	0.79 Nm	Nylon 6/6 PA66 Polyamide
TE Connectivity AMP Connectors 1-282809-1	11	180 °	30 AWG	12 AWG	Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	Green	15 A	0.4 in	1	Female Sockets Plug	Screw - Rising Cage Clamp	600 V	0.05 mm²	3 mm²	11	-40 °C	110 °C	Tin	M3	6 mm	7.5 mm	Phosphor Bronze	UL94 V-0	0.61 in	0.79 Nm	Nylon 6/6 PA66 Polyamide
TE Connectivity AMP Connectors 1-282809-5	4	180 °	30 AWG	12 AWG	Positions Stamped Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	Black	15 A	0.4 in	1	Female Sockets Plug	Screw - Rising Cage Clamp	600 V	0.05 mm²	3 mm²	4	-40 °C	110 °C	Tin	M3	6 mm	7.5 mm	Phosphor Bronze	UL94 V-0	0.61 in	0.79 Nm	Nylon 6/6 PA66 Polyamide
TE Connectivity AMP Connectors 282809-6	6	180 °	30 AWG	12 AWG	Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	Green	15 A	0.4 in	1	Female Sockets Plug	Screw - Rising Cage Clamp	600 V	0.05 mm²	3 mm²	6	-40 °C	110 °C	Tin	M3	6 mm	7.5 mm	Phosphor Bronze	UL94 V-0	0.61 in	0.79 Nm	Nylon 6/6 PA66 Polyamide

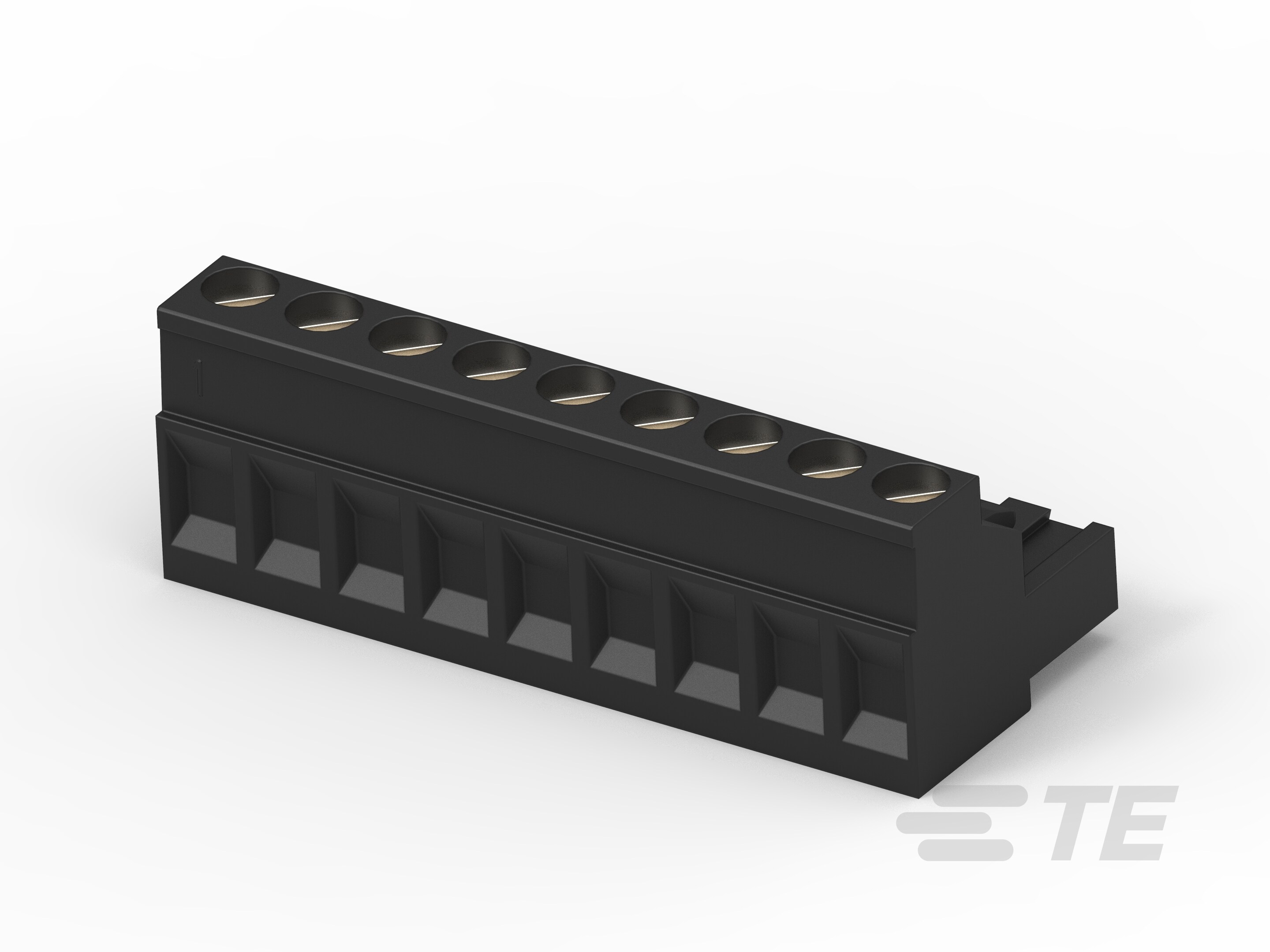

TE Connectivity AMP Connectors 282809-9	9	180 °	30 AWG	12 AWG	Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	Green	15 A	0.4 in	1	Female Sockets Plug	Screw - Rising Cage Clamp	600 V	0.05 mm²	3 mm²	9	-40 °C	110 °C	Tin	M3	6 mm	7.5 mm	Phosphor Bronze	UL94 V-0	0.61 in	0.79 Nm	Nylon 6/6 PA66 Polyamide
