Pin & Socket Connectors 0.084 MLX HEADER 6CKT GLOW WIRE WITH PEG

Part	Number of Rows	Contact Finish - Mating	Fastening Type	Style	Applications	Insulation Height	Contact Finish - Post	Termination	Contact Shape	Contact Type	Number of Positions	Contact Finish Thickness - Mating	Number of Positions Loaded	Pitch - Mating	Material Flammability Rating	Mounting Type	Insulation Color	Connector Type	Features	Shrouding	Insulation Material	Contact Length - Post	Row Spacing - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Contact Finish Thickness - Post	Contact Material	Current Rating	Current Rating

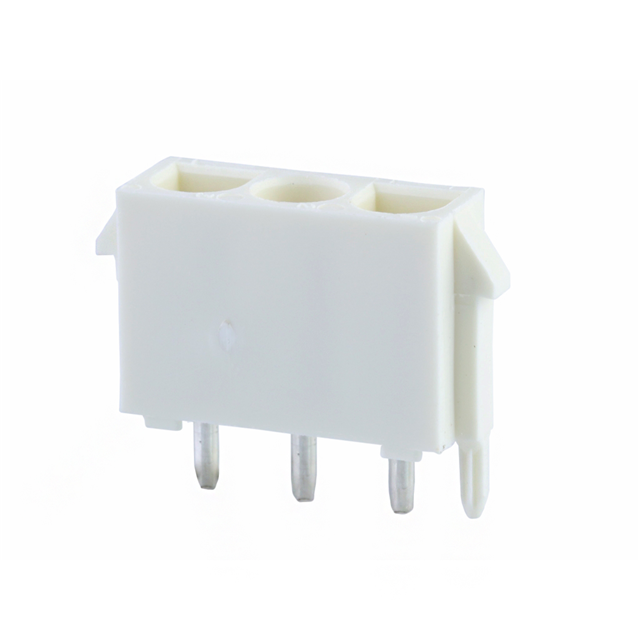

Molex 0367570022	1	Tin	Locking Ramp	Board Cable/Wire	Automotive General Purpose Industrial	0.55 in	Tin	Solder	Circular	Male Pin	3	137.8 µin	All	0.25 in	UL94 V-2	Through Hole	Natural	Header	Board Guide Glow Wire Compliant	Shrouded - 4 Wall	Nylon 6 Polyamide (PA6)	0.169 in
Molex 0367570105	3	Tin	Locking Ramp	Board Cable/Wire	Automotive General Purpose Industrial	0.55 in	Tin	Solder	Circular	Male Pin	9	137.8 µin	All	0.25 in	UL94 V-2	Through Hole	Natural	Header	Glow Wire Compliant	Shrouded - 4 Wall	Nylon 6 Polyamide (PA6)	0.169 in	0.25 in
Molex 0367570023	1	Tin	Locking Ramp	Board Cable/Wire	Automotive General Purpose Industrial	0.55 in	Tin	Solder	Circular	Male Pin	4	137.8 µin	All	0.25 in	UL94 V-2	Through Hole	Natural	Header	Board Guide Glow Wire Compliant	Shrouded - 4 Wall	Nylon 6 Polyamide (PA6)	0.169 in
Molex 0367570143	1	Tin	Locking Ramp	Board Cable/Wire	Automotive General Purpose Industrial Telecommunications	0.55 in	Tin	Solder	Circular	Female Socket	4	137.8 µin	All	0.25 in	UL94 V-2	Through Hole	Natural	Header	Glow Wire Compliant		Nylon 6 Polyamide (PA6)	0.169 in		-55 °C	105 °C	600 V	137.8 µin	Phosphor Bronze
Molex 0367570062	1	Tin	Locking Ramp	Board Board or Cable	Automotive General Purpose Industrial	0.55 in	Tin	Solder	Circular	Female Socket	3		All	0.25 in	UL94 V-2	Through Hole	Natural	Header	Board Guide Glow Wire Compliant		Nylon 6 Polyamide (PA6)	0.169 in		-55 °C	105 °C	600 V			0 A	Varies by Wire Gauge
Molex 0367570144	2	Tin	Locking Ramp	Board Cable/Wire			Tin	Solder	Circular	Female Socket	6	137.8 µin	All	0.25 in	UL94 V-2	Through Hole	Natural	Header			Nylon 6 Polyamide (PA6)	0.17 in	0.25 in	-55 °C	105 °C	600 V	137.8 µin		20 A
Molex 0367570025	3	Tin	Locking Ramp	Board Cable/Wire	Automotive General Purpose Industrial	0.55 in	Tin	Solder	Circular	Male Pin	9	137.8 µin	All	0.25 in	UL94 V-2	Through Hole	Natural	Header	Board Guide Glow Wire Compliant	Shrouded - 4 Wall	Nylon 6 Polyamide (PA6)	0.169 in	0.25 in
Molex 0367570066	3	Tin	Locking Ramp	Board Board or Cable		0.55 in	Tin	Solder		Female Socket	12	140 µin	All	0.25 in	UL94 V-2	Through Hole	Natural	Header	Board Guide		Nylon 6 Polyamide (PA6)	0.17 in	0.25 in	-55 °C	105 °C	600 V	140 µin	Phosphor Bronze	9 A
Molex 0367570024	2	Tin	Locking Ramp	Board Cable/Wire	Automotive General Purpose Industrial	0.55 in	Tin	Solder	Circular	Male Pin	6	137.8 µin	All	0.25 in	UL94 V-2	Through Hole	Natural	Header	Board Guide Glow Wire Compliant	Shrouded - 4 Wall	Nylon 6 Polyamide (PA6)	0.169 in	0.25 in
