207158 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

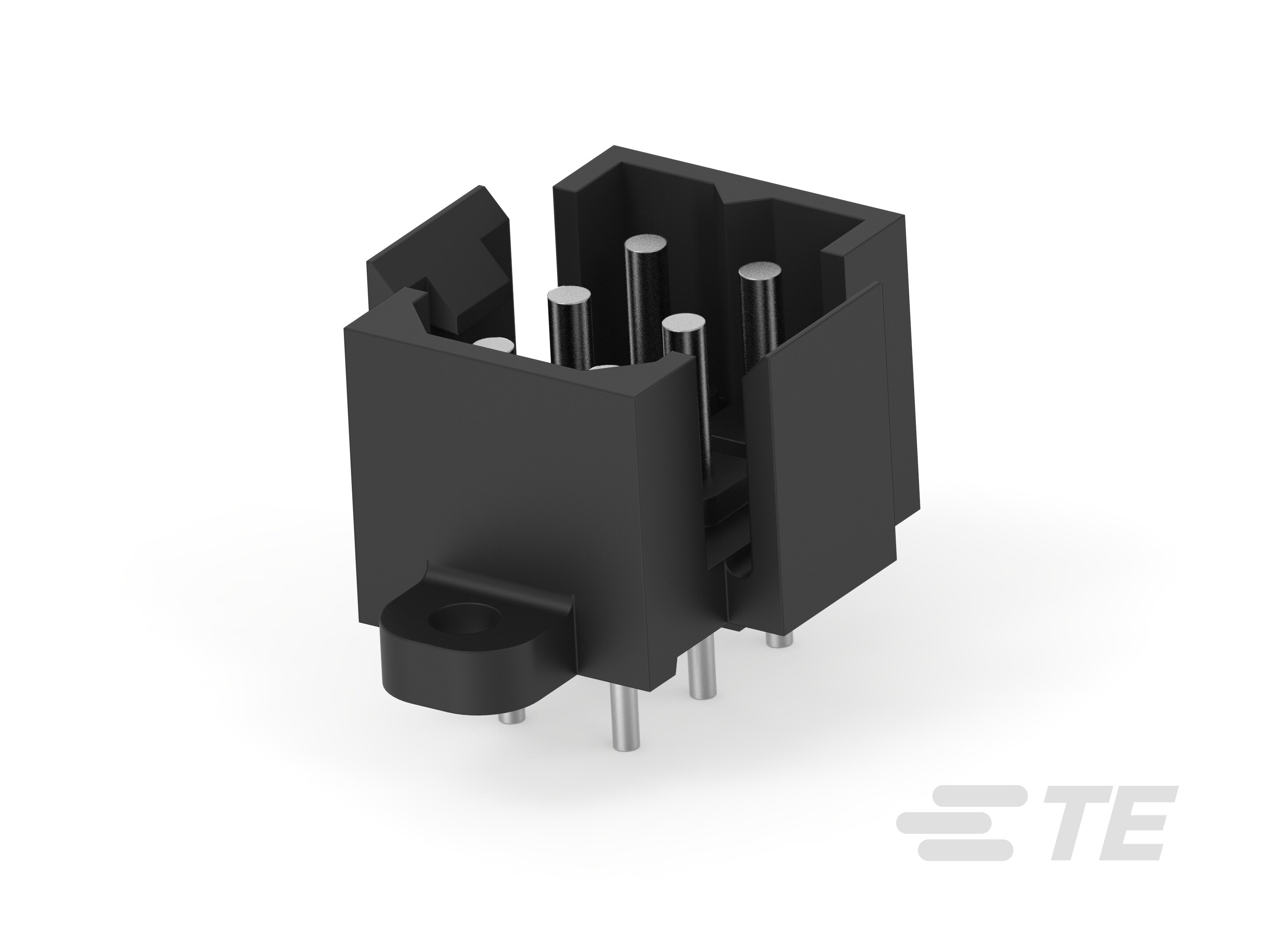

CONN HEADER VERT 6POS 5MM

Part	Contact Finish - Post	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Contact Material	Termination	Features	Number of Positions	Insulation Height	Current Rating	Insulation Color	Fastening Type	Mounting Type	Contact Type	Contact Length - Post	Pitch - Mating	Material Flammability Rating	Contact Finish - Mating	Number of Rows	Contact Shape	Style	Contact Finish Thickness - Mating	Connector Type	Number of Positions Loaded	Row Spacing - Mating	Shrouding	Insulation Material	Contact Finish Thickness - Post	Applications
TE Connectivity AMP Connectors 207158-1	Tin	-55 °C	130 °C	600 V	Brass	Solder	Mounting Flange	6	0.464 in	7.5 A	Black Red	Latch Lock	Through Hole	Male Pin	0.181 in	0.197 in	UL94 V-0	Tin	2	Circular	Board Board or Cable	150 µin	Header	All	0.197 in	Shrouded - 4 Wall	Nylon Polyamide (PA)	150 µin	Automotive General Purpose Industrial
TE Connectivity AMP Connectors 1-207158-0	Tin	-55 °C	130 °C	600 V	Brass	Solder	Mounting Flange	6	0.464 in	7.5 A	Black Red	Latch Lock	Through Hole	Male Pin	0.181 in	0.197 in	UL94 V-0	Gold PdNi +Gold	2	Circular	Board Board or Cable	30 µin	Header	All	0.197 in	Shrouded - 4 Wall	Nylon Polyamide (PA)	150 µin	Automotive General Purpose Industrial
TE Connectivity AMP Connectors 207158-7	Tin	-55 °C	130 °C	600 V	Brass	Solder	Mounting Flange	6	0.464 in	7.5 A	Black Red	Latch Lock	Through Hole	Male Pin	0.181 in	0.197 in	UL94 V-0	Tin	2	Circular	Board Board or Cable	150 µin	Header	All	0.197 in	Shrouded - 4 Wall	Nylon Polyamide (PA)	150 µin	Automotive General Purpose Industrial
TE Connectivity AMP Connectors 1-207158-1	Tin	-55 °C	130 °C	600 V	Brass	Solder		6	0.464 in	7.5 A	Black Red	Latch Lock	Through Hole	Male Pin	0.181 in	0.197 in	UL94 V-0	Gold	2	Circular	Board Board or Cable	30 µin	Header	All	0.197 in	Shrouded - 4 Wall	Nylon Polyamide (PA)	150 µin	Automotive General Purpose Industrial
