3567 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

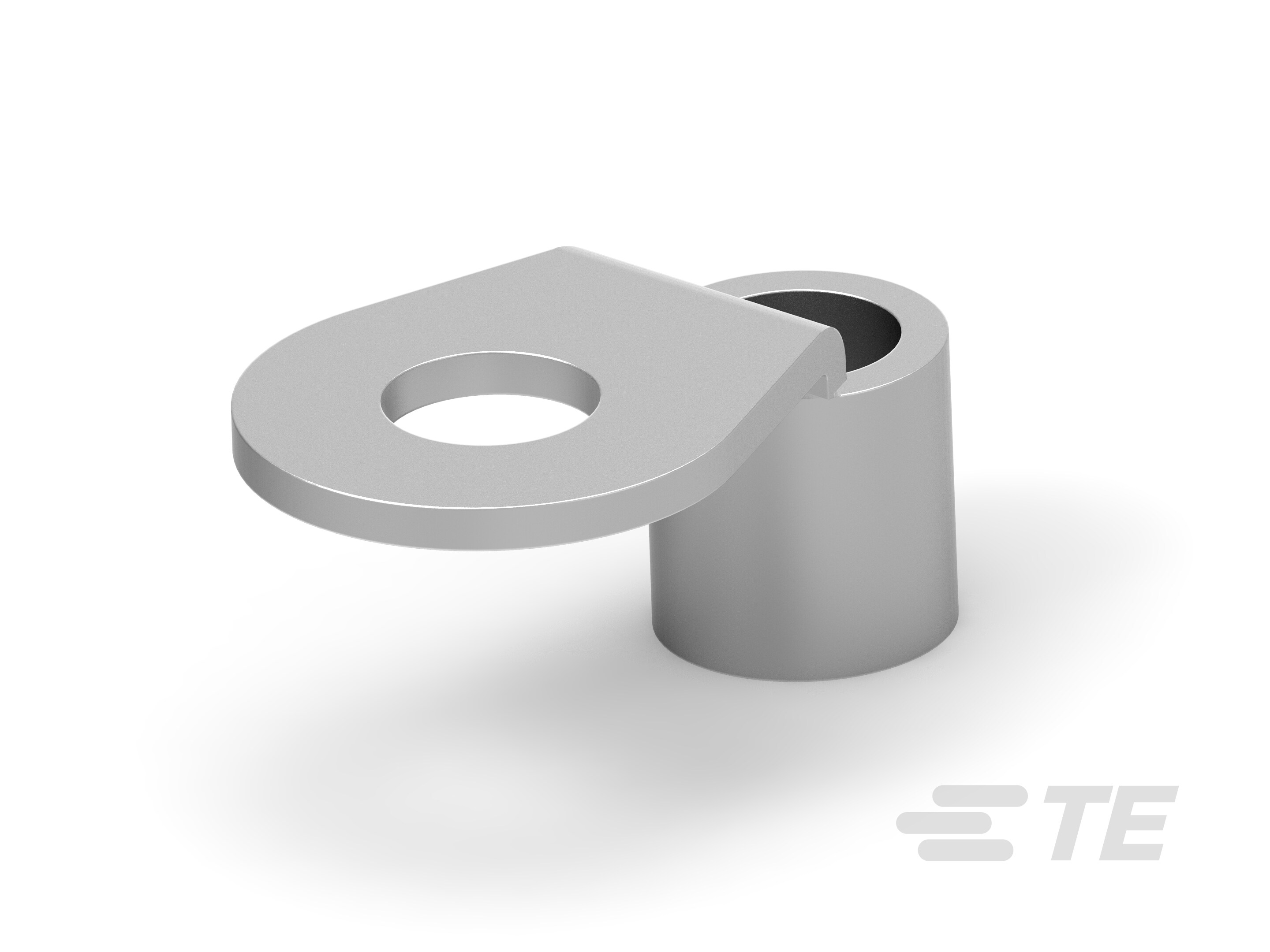

TERMINAL,SOLIS R 90DEG 6 1/4 ROHS COMPLIANT: YES
| Part | Thickness | Insulation | Features | Termination | Stud/Tab Size | Terminal Type | Contact Finish | Mounting Type | Contact Material | Width - Outer Edges | Wire Gauge | Length - Overall | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.057 in | Non-Insulated | Brazed Seam | Crimp | 0.25 Stud | Circular | Tin | Free Hanging (In-Line) Right Angle | Copper | 0.625 in | 6 AWG | ||

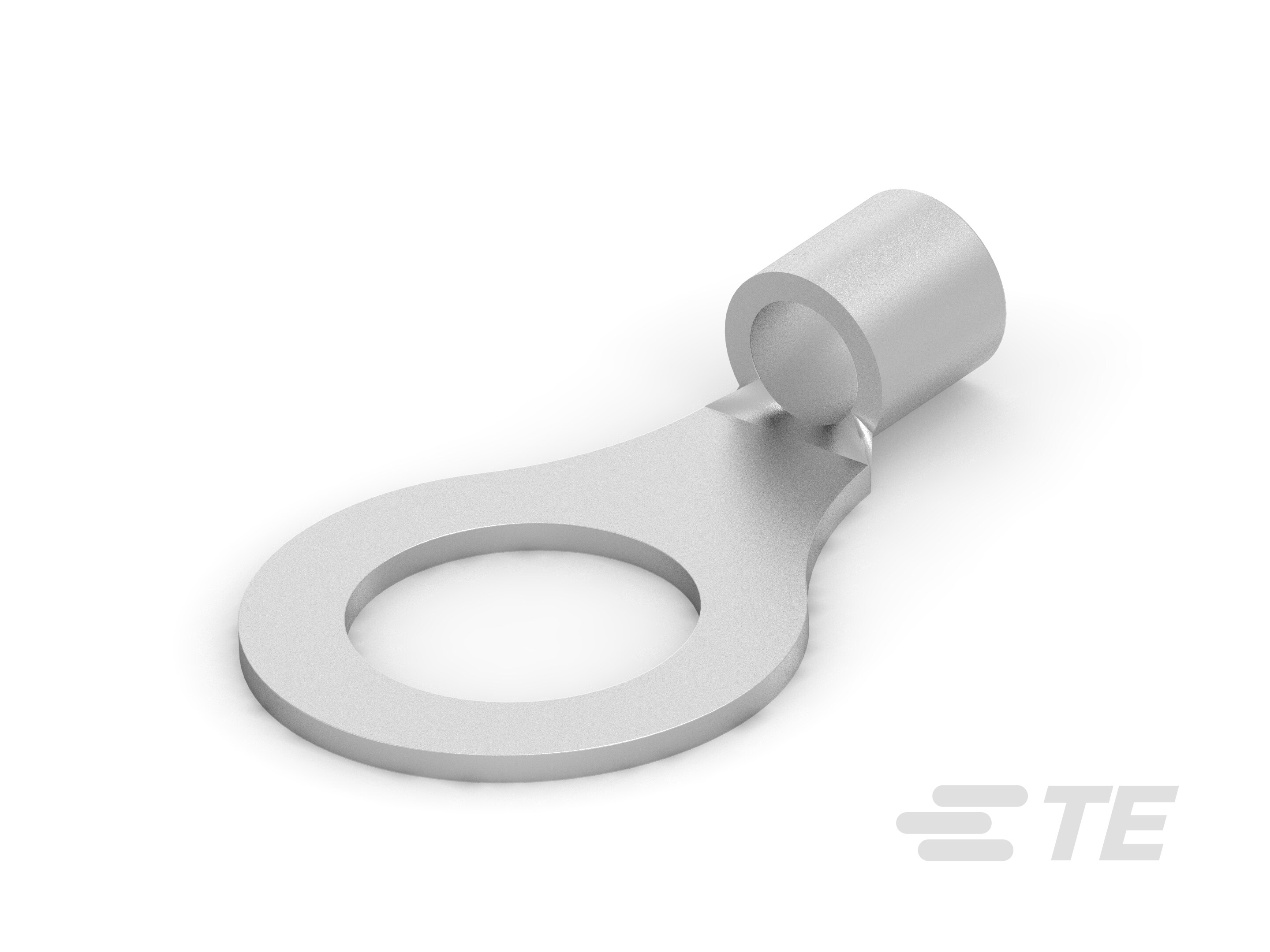

 TE Connectivity AMP Connectors | 0.07 in | Non-Insulated | Brazed Seam Serrated Termination | Crimp | 0.75 Stud | Circular | Tin | Free Hanging (In-Line) | Copper | 1.25 in | 4 AWG | 2.09 in | 3 Stud 4 Stud |
