DWM-07 Series

Catalog

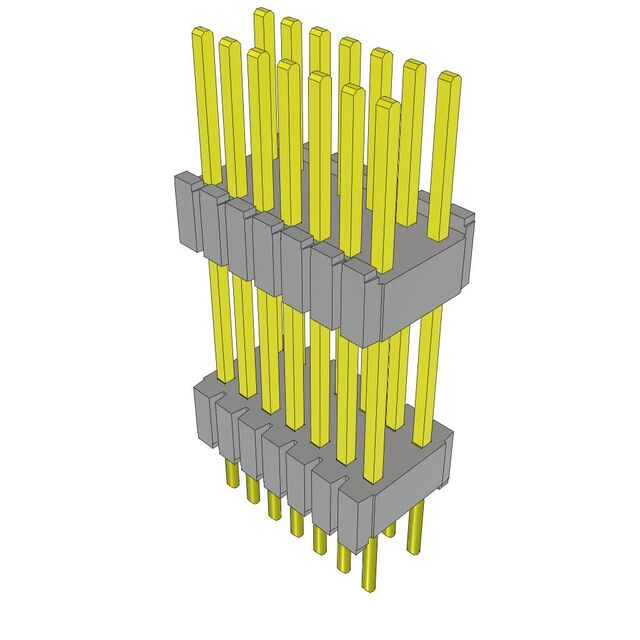

CONN HDR 7POS 0.05 STACK T/H

Part	Length - Tail [x]	Length - Tail [x]	Termination	Length - Overall Pin [x]	Length - Overall Pin [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Pitch [x]	Pitch [x]	Number of Positions	Mounting Type	Color	Number of Rows	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish - Post (Mating)	Row Spacing [x]	Row Spacing	Length - Overall Pin	Length - Overall Pin	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. DWM-07-57-G-S-400	0.12 in	3.048 mm	Solder	16.51 mm	0.65 in	0.25 Ám	10 Áin	3.302 mm	0.13 in	0.05 in	1.27 mm	7	Through Hole	Black	1	0.4 in	10.16 mm	Gold
Samtec Inc. DWM-07-56-S-D-330	0.12 in	3.048 mm	Solder	15.875 mm	0.625 in	0.76 µm	30 µin	4.445 mm	0.175 in	0.05 in	1.27 mm	14	Through Hole	Black	2	0.33 in	8.382 mm	Gold	0.1 in	2.54 mm
Samtec Inc. DWM-07-01-G-S-200	0.12 in	3.048 mm	Solder			0.25 Ám	10 Áin	3.302 mm	0.13 in	0.05 in	1.27 mm	7	Through Hole	Black	1			Gold			0.45 in	11.43 mm
Samtec Inc. DWM-07-60-G-D-495	0.12 in	3.048 mm	Solder	20.955 mm	0.825 in	0.25 Ám	10 Áin	5.334 mm	0.21 in	0.05 in	1.27 mm	14	Through Hole	Black	2	0.495 in	12.573 mm	Gold	0.1 in	2.54 mm
Samtec Inc. DWM-07-61-G-D-650	0.12 in	3.048 mm	Solder	26.67 mm	1.05 in	0.25 Ám	10 Áin	7.112 mm	0.28 in	0.05 in	1.27 mm	14	Through Hole	Black	2	0.65 in	16.51 mm	Gold	0.1 in	2.54 mm
Samtec Inc. DWM-07-59-G-S-490	0.12 in	3.048 mm	Solder	19.177 mm	0.755 in	0.25 Ám	10 Áin	3.683 mm	0.145 in	0.05 in	1.27 mm	7	Through Hole	Black	1	0.49 in	12.446 mm	Gold
Samtec Inc. DWM-07-56-S-D-350	0.12 in	3.048 mm	Solder	15.875 mm	0.625 in	0.76 µm	30 µin	3.937 mm	0.155 in	0.05 in	1.27 mm	14	Through Hole	Black	2	0.35 in	8.89 mm	Gold	0.1 in	2.54 mm
Samtec Inc. DWM-07-01-G-D-210	0.12 in	3.048 mm	Solder			0.25 Ám	10 Áin	3.048 mm	0.12 in	0.05 in	1.27 mm	14	Through Hole	Black	2	0.21 in	5.334 mm	Gold	0.1 in	2.54 mm	0.45 in	11.43 mm
Samtec Inc. DWM-07-54-G-D-320	0.12 in	3.048 mm	Solder	14.097 mm	0.555 in	0.25 Ám	10 Áin	2.921 mm	0.115 in	0.05 in	1.27 mm	14	Through Hole	Black	2			Gold	0.1 in	2.54 mm			0.32 in	8.128 mm
Samtec Inc. DWM-07-61-G-S-500	0.12 in	3.048 mm	Solder	26.67 mm	1.05 in	0.25 Ám	10 Áin	10.922 mm	0.43 in	0.05 in	1.27 mm	7	Through Hole	Black	1	0.5 in	12.7 mm	Gold
