282830 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERM BLOCK PLUG 10POS 90DEG 5MM

Part	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Number of Positions	Features	Positions Per Level	Plug Wire Entry Angle	Current - UL	Contact Mating Finish	Type	Termination Style	Number of Levels	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - UL	Color	Mounting Type	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Contact Material	Screw Size	Housing Material	Insulation Height	Material Flammability Rating	Wire Strip Length (Min)	Wire Strip Length (Max)	Torque - Screw
TE Connectivity AMP Connectors 1-282830-0	30 AWG	12 AWG	10	Side Stacking	10	90 °	12 A	Tin	Plug for Unshrouded Header	Screw - Rising Cage Clamp	1	0.197 in	-40 °C	110 °C	300 V	Green	Free Hanging (In-Line)	0.05 mm²	2 mm²	Phosphor Bronze	M3	Nylon 6/6 PA66 Polyamide	0.453 in	UL94 V-0	6 mm	7.5 mm	0.68 Nm

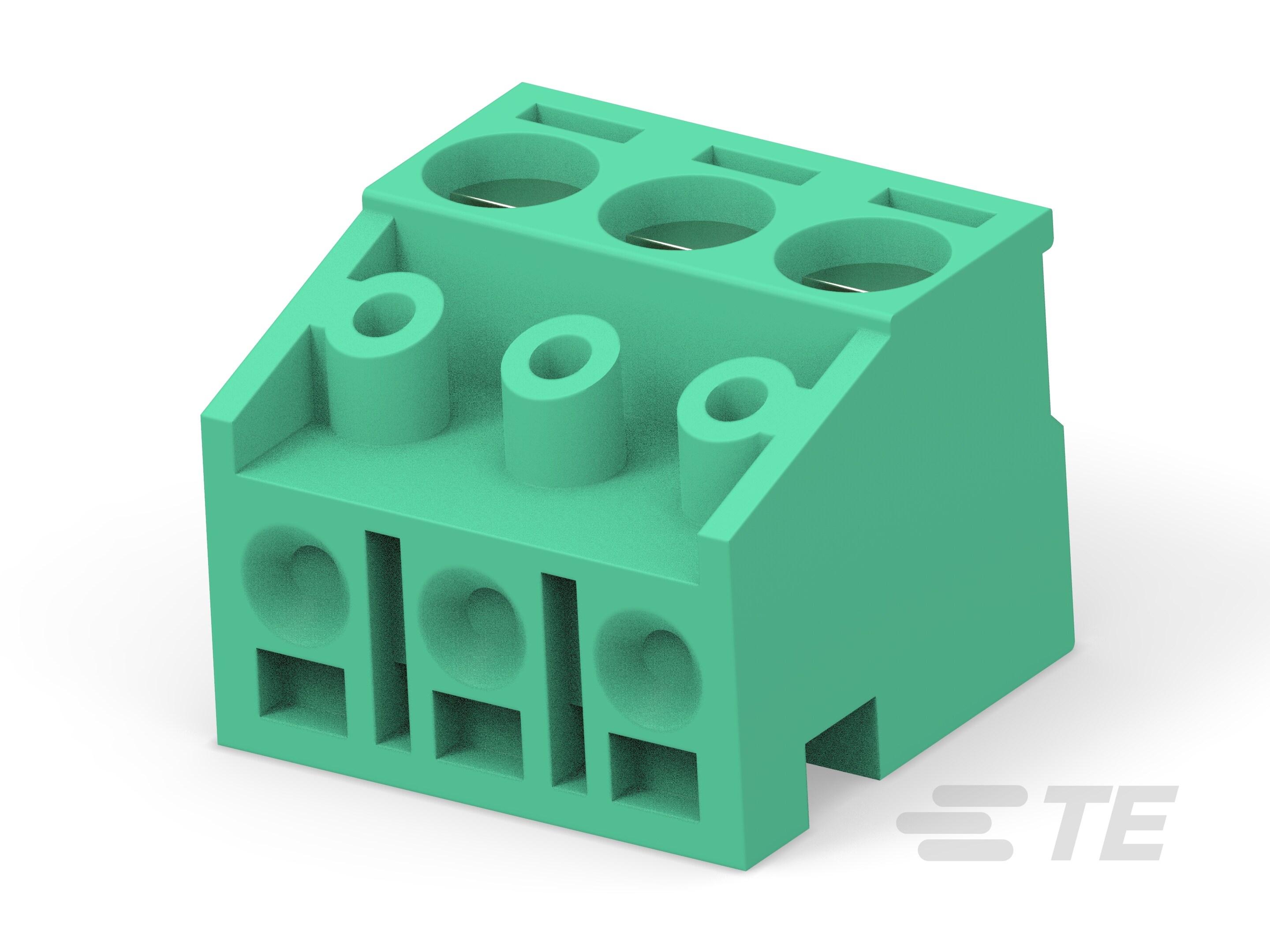

TE Connectivity AMP Connectors 3-282830-0	30 AWG	12 AWG	3	Positions Stamped Side Stacking	3	90 °	12 A	Tin	Plug for Unshrouded Header	Screw - Rising Cage Clamp	1	0.197 in	-40 °C	110 °C	300 V	Green	Free Hanging (In-Line)	0.05 mm²	2 mm²	Phosphor Bronze	M3	Nylon 6/6 PA66 Polyamide	0.453 in	UL94 V-0	6 mm	7.5 mm	0.68 Nm
TE Connectivity AMP Connectors 282830-4	30 AWG	12 AWG	4	Side Stacking	4	90 °	12 A	Tin	Plug for Unshrouded Header	Screw - Rising Cage Clamp	1	0.197 in	-40 °C	110 °C	300 V	Green	Free Hanging (In-Line)	0.05 mm²	2 mm²	Phosphor Bronze	M3	Nylon 6/6 PA66 Polyamide	0.453 in	UL94 V-0	6 mm	7.5 mm	0.68 Nm
TE Connectivity AMP Connectors 282830-3	30 AWG	12 AWG	3	Side Stacking	3	90 °	12 A	Tin	Plug for Unshrouded Header	Screw - Rising Cage Clamp	1	0.197 in	-40 °C	110 °C	300 V	Green	Free Hanging (In-Line)	0.05 mm²	2 mm²	Phosphor Bronze	M3	Nylon 6/6 PA66 Polyamide	0.453 in	UL94 V-0	6 mm	7.5 mm	0.68 Nm
TE Connectivity AMP Connectors 282830-2	30 AWG	12 AWG	2	Side Stacking	2	90 °	12 A	Tin	Plug for Unshrouded Header	Screw - Rising Cage Clamp	1	0.197 in	-40 °C	110 °C	300 V	Green	Free Hanging (In-Line)	0.05 mm²	2 mm²	Phosphor Bronze	M3	Nylon 6/6 PA66 Polyamide	0.453 in	UL94 V-0	6 mm	7.5 mm	0.68 Nm
