087368 Series

Manufacturer: Molex

Catalog

HEADERS & WIRE HOUSINGS MGRID REC S/E SMT D.R. T&R .38AULF 44CKT

Part	Contact Finish Thickness - Mating	Style	Termination	Pitch - Mating	Connector Type	Fastening Type	Current Rating	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions Loaded	Row Spacing - Mating	Number of Positions	Insulation Color	Contact Finish - Mating	Number of Rows	Features	Mounting Type	Contact Type	Contact Finish - Post	Insulation Height	Contact Finish Thickness - Post	Applications	Contact Shape
Molex 0873686134	15 µin	Board Board or Cable	Solder	0.079 in	Receptacle	Push-Pull	1 A	125 V	-55 °C	105 °C	All	0.079 in	44	Black	Gold	2	Board Guide	Right Angle Surface Mount	Female Socket	Tin	0.193 in	100 Ąin	Automotive General Purpose Telecommunications	Square
Molex 0873683620	15 µin	Board Board or Cable	Solder	0.079 in	Receptacle	Push-Pull	1 A	125 V	-55 °C	105 °C	All	0.079 in	36	Black	Gold	2	Board Guide	Right Angle Surface Mount	Female Socket	Tin-Lead	0.193 in	100 Ąin	Automotive General Purpose Telecommunications	Square
Molex 0873684624	15 µin	Board Board or Cable	Solder	0.079 in	Receptacle	Push-Pull	1 A	125 V	-55 °C	105 °C	All	0.079 in	46	Black	Gold	2	Board Guide	Right Angle Surface Mount	Female Socket	Tin	0.193 in	100 Ąin	Automotive General Purpose Telecommunications	Square
Molex 0873682220	15 µin	Board Board or Cable	Solder	0.079 in	Receptacle	Push-Pull	1 A	125 V	-55 °C	105 °C	All	0.079 in	22	Black	Gold	2	Board Guide	Right Angle Surface Mount	Female Socket	Tin-Lead	0.193 in	100 Ąin	Automotive General Purpose Telecommunications	Square
Molex 0873684620	15 µin	Board Board or Cable	Solder	0.079 in	Receptacle	Push-Pull	1 A	125 V	-55 °C	105 °C	All	0.079 in	46	Black	Gold	2	Board Guide	Right Angle Surface Mount	Female Socket	Tin-Lead	0.193 in	100 Ąin	Automotive General Purpose Telecommunications	Square

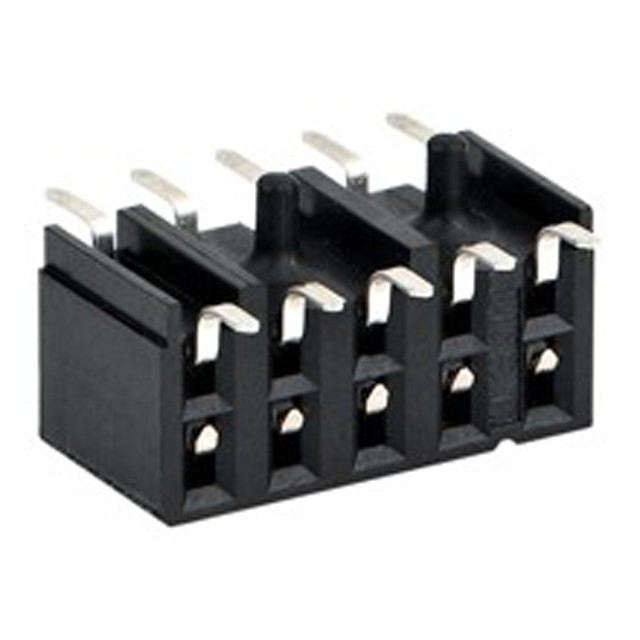

Molex 0873680824	15 µin	Board Board or Cable	Solder	0.079 in	Receptacle	Push-Pull	1 A	125 V	-55 °C	105 °C	All	0.079 in	8	Black	Gold	2	Board Guide	Right Angle Surface Mount	Female Socket	Tin	0.193 in	100 Ąin	Automotive General Purpose Telecommunications	Square
Molex 0873682620	15 µin	Board Board or Cable	Solder	0.079 in	Receptacle	Push-Pull	1 A	125 V	-55 °C	105 °C	All	0.079 in	26	Black	Gold	2	Board Guide	Right Angle Surface Mount	Female Socket	Tin-Lead	0.193 in	100 Ąin	Automotive General Purpose Telecommunications	Square
Molex 0873683020	15 µin	Board Board or Cable	Solder	0.079 in	Receptacle	Push-Pull	1 A	125 V	-55 °C	105 °C	All	0.079 in	30	Black	Gold	2	Board Guide	Right Angle Surface Mount	Female Socket	Tin-Lead	0.193 in	100 Ąin	Automotive General Purpose Telecommunications	Square
Molex 0873684824	15 µin	Board Board or Cable	Solder	0.079 in	Receptacle	Push-Pull	1 A	125 V	-55 °C	105 °C	All	0.079 in	48	Black	Gold	2	Board Guide	Right Angle Surface Mount	Female Socket	Tin	0.193 in	100 Ąin	Automotive General Purpose Telecommunications	Square
Molex 0873683224	15 µin	Board Board or Cable	Solder	0.079 in	Receptacle	Push-Pull	1 A	125 V	-55 °C	105 °C	All	0.079 in	32	Black	Gold	2	Board Guide	Right Angle Surface Mount	Female Socket	Tin	0.193 in	100 Ąin	Automotive General Purpose Telecommunications	Square
