S8VS-18024 Series

Manufacturer: Omron Automation and Safety

Catalog

AC/DC DIN RAIL SUPPLY 24V 180W

Part	AC Voltage - Input (Max)	AC Voltage - Input (Min)	Features	Voltage - Output 1	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Isolation	Efficiency	Approval Agency	Applications	Number of Outputs	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Power (Watts)	Input Type	Current - Output (Max)
Omron Automation and Safety S8VS-18024A-F	264 VAC	85 VAC	Adjustable Output Universal Input	24 V	60 °C	-10 °C	3 kV	80 %	CE cULus cURus VDE	ITE (Commercial)	1	4.53 in	2.95 in	4.93 in	180 W	AC	5 A
Omron Automation and Safety S8VS-18024BE	240 VAC	100 VAC	Adjustable Output Universal Input	24 V	60 °C	-10 °C	3 kV	80 %	CE cULus cURus VDE	ITE (Commercial)	1	4.53 in	2.95 in	4.93 in	180 W	AC	7.5 A
Omron Automation and Safety S8VS-18024BP	240 VAC	100 VAC	Adjustable Output Universal Input	24 V	60 °C	-10 °C	3 kV	80 %	CE cULus cURus VDE	ITE (Commercial)	1	4.53 in	2.95 in	4.93 in	180 W	AC	7.5 A
Omron Automation and Safety S8VS-18024BP-F	240 VAC	100 VAC	Adjustable Output Universal Input	24 V	60 °C	-10 °C	3 kV	80 %	CE cULus cURus VDE	ITE (Commercial)	1	4.53 in	2.95 in	4.93 in	180 W	AC	7.5 A

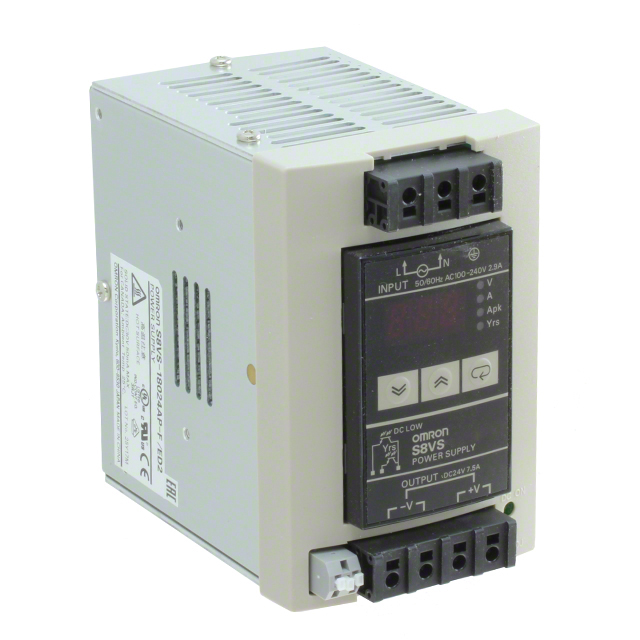

Omron Automation and Safety S8VS-18024AP-F	264 VAC	85 VAC	Adjustable Output Universal Input	24 V	60 °C	-10 °C	3 kV	80 %	CE cULus cURus VDE	ITE (Commercial)	1	4.53 in	2.95 in	4.93 in	180 W	AC	7.5 A
Omron Automation and Safety S8VS-18024AP	264 VAC	85 VAC	Adjustable Output Universal Input	24 V	60 °C	-10 °C	3 kV	80 %	CE cULus cURus VDE	ITE (Commercial)	1	4.53 in	2.95 in	4.93 in	180 W	AC	7.5 A
Omron Automation and Safety S8VS-18024B	264 VAC	85 VAC	Adjustable Output Universal Input	24 V	60 °C	-10 °C	3 kV	80 %	CE cULus cURus VDE	ITE (Commercial)	1	4.53 in	2.95 in	4.93 in	180 W	AC	7.5 A
Omron Automation and Safety S8VS-18024BE-F	240 VAC	100 VAC	Adjustable Output Universal Input	24 V	60 °C	-10 °C	3 kV	80 %	CE cULus cURus VDE	ITE (Commercial)	1	4.53 in	2.95 in	4.93 in	180 W	AC	7.5 A
