2213611 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

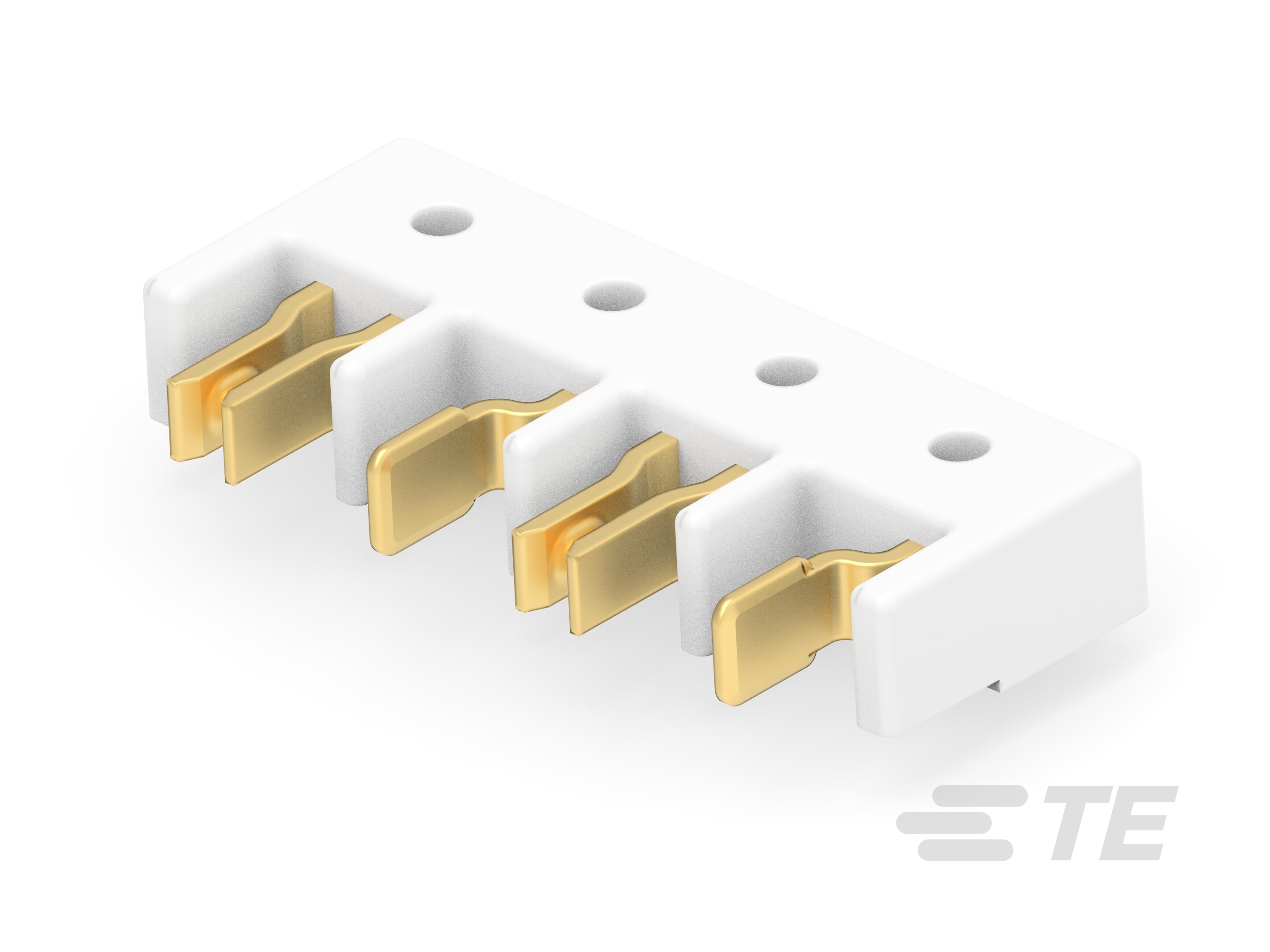

MINI HERM ASSY WITH POSTS - SELECT GOLD
| Part | Pitch | Contact Finish | Contact Material | Number of Positions | Mounting Type | Housing Color | Housing Material | Operating Temperature (Min) | Operating Temperature (Max) | Style | Termination | Features | Connector Type | Voltage Rating | Current Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.118 in | Gold | Brass Copper Alloy | 4 | Board Edge Right Angle Surface Mount | Natural | Thermoplastic | -40 °C | 105 °C | Board | Solder | Board Guide | Blade Hermaphroditic Receptacle | 300 VAC/DC | 3 A |
 TE Connectivity AMP Connectors | 0.118 in | Gold | Brass Copper Alloy | 6 | Board Edge Right Angle Surface Mount | Natural | Thermoplastic | -40 °C | 105 °C | Board | Solder | Board Guide | Blade Hermaphroditic Receptacle | 300 VAC/DC | 3 A |
 TE Connectivity AMP Connectors | 0.118 in | Gold | Brass Copper Alloy | 2 | Board Edge Right Angle Surface Mount | Natural | Thermoplastic | -40 °C | 105 °C | Board | Solder | Board Guide | Blade Hermaphroditic Receptacle | 300 VAC/DC | 3 A |
