ISL54224 Series

Catalog

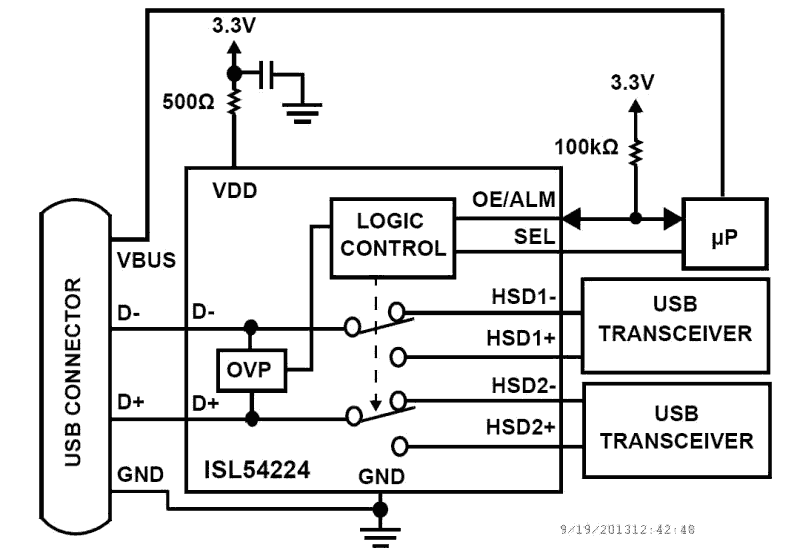

HIGH-SPEED USB 2.0 (480MBPS) MULTIPLEXER WITH OVERVOLTAGE PROTECTION (OVP) AND OVERVOLTAGE INDICATOR OUTPUT

Part	Mounting Type	On-State Resistance (Max)	Package Length	Package Name	Package Width	Operating Temperature (Max)	Operating Temperature (Min)	Number of Channels	Multiplexer Inputs	Demultiplexer Outputs	Features	Applications	Voltage - Supply, Single (V+) (Minimum)	Voltage - Supply, Single (V+) (Maximum)	-3db Bandwidth	Package / Case	Switch Circuit Type
Renesas Electronics Corporation ISL54224IRTZ-T	Surface Mount	20 Ohms	3 mm	10-TDFN	3 mm	85 °C	-40 °C	2	2	1	Break-Before-Make USB 2.0	USB	2.7 V	5.25 V	780 MHz	10-VFDFN Exposed Pad	SPDT
Renesas Electronics Corporation ISL54224IRUZ-T7A	Surface Mount	20 Ohms	1.8 mm	10-UTQFN	1.4 mm	85 °C	-40 °C	2	2	1	Break-Before-Make USB 2.0	USB	2.7 V	5.25 V	780 MHz	10-UFQFN	SPDT
Renesas Electronics Corporation ISL54224IRUZ-T	Surface Mount	20 Ohms	1.8 mm	10-UTQFN	1.4 mm	85 °C	-40 °C	2	2	1	Break-Before-Make USB 2.0	USB	2.7 V	5.25 V	780 MHz	10-UFQFN	SPDT
Renesas Electronics Corporation ISL54224IRTZ	Surface Mount	20 Ohms	3 mm	10-TDFN	3 mm	85 °C	-40 °C	2	2	1	Break-Before-Make USB 2.0	USB	2.7 V	5.25 V	780 MHz	10-VFDFN Exposed Pad	SPDT
