2040832 Series

Catalog

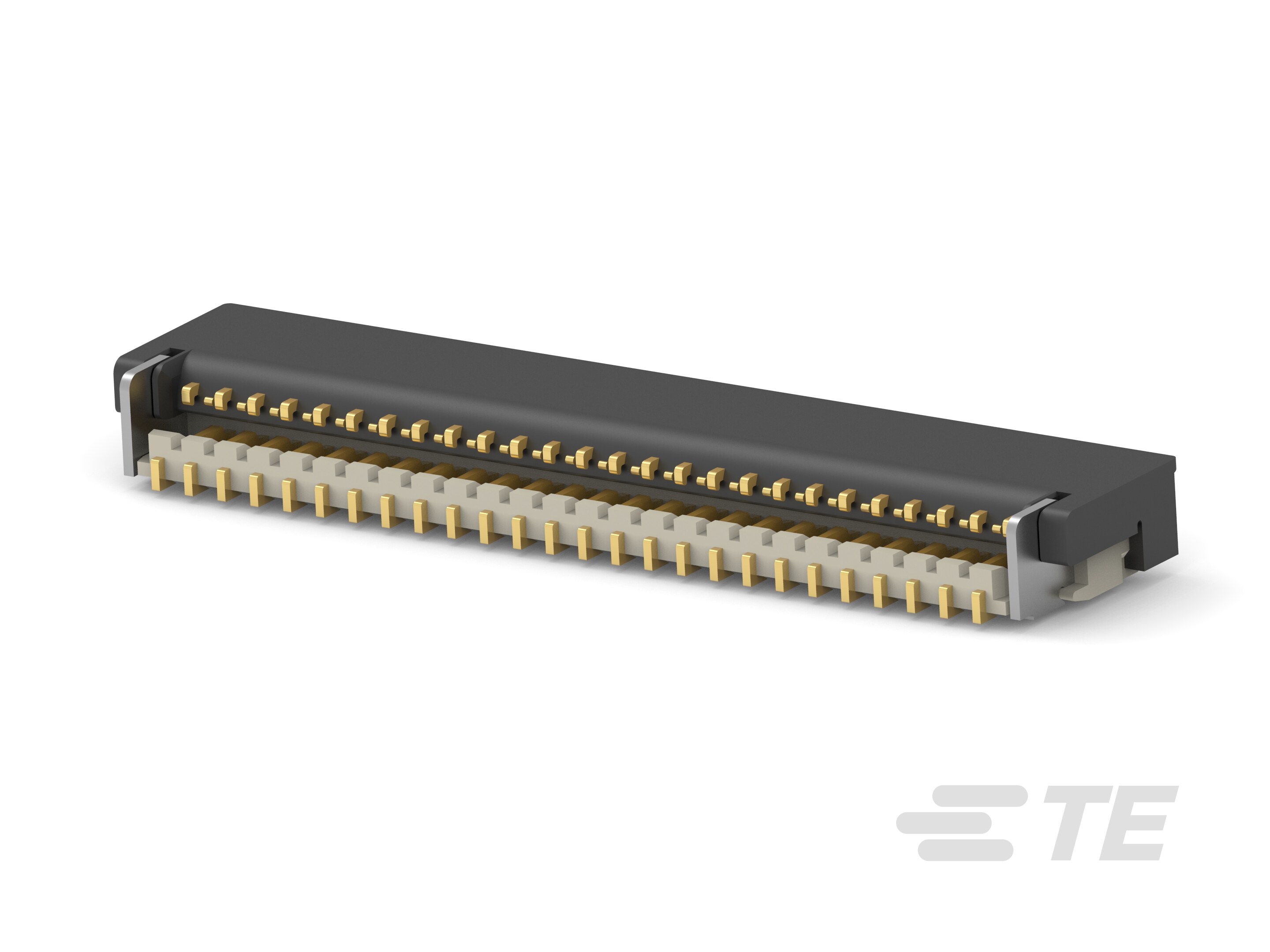

CONN FPC BOTTOM 37POS 0.25MM R/A

Part	Flat Flex Type	Locking Feature	Cable End Type	Termination	Mounting Type	Housing Material	Operating Temperature (Max)	Operating Temperature (Min)	Connector/Contact Type	FFC, FCB Thickness	Features	Number of Positions	Contact Finish	Pitch	Contact Material	Material Flammability Rating	Actuator Material	Height Above Board	Voltage Rating	Housing Color	Actuator Color	Current Rating
TE Connectivity AMP Connectors 1-2040832-4	FPC	Slide Lock	Tapered	Solder	Right Angle Surface Mount	Glass Filled LCP Liquid Crystal Polymer	85 °C	-25 °C	Bottom Contacts	0.2 mm	Solder Retention Zero Insertion Force (ZIF)	37 pos	Gold	0.01 in	Copper Alloy	UL94 V-0	Glass Filled Liquid Crystal Polymer (LCP)	0.051 in	50 V	Natural	Black	0.2 A
TE Connectivity AMP Connectors 2-2040832-1	FPC	Slide Lock	Tapered	Solder	Right Angle Surface Mount	Glass Filled LCP Liquid Crystal Polymer	85 °C	-25 °C	Bottom Contacts	0.2 mm	Solder Retention Zero Insertion Force (ZIF)	51	Gold	0.01 in	Copper Alloy	UL94 V-0	Glass Filled Liquid Crystal Polymer (LCP)	0.051 in	50 V	Natural	Black	0.2 A
TE Connectivity AMP Connectors 1-2040832-8	FPC	Slide Lock	Tapered	Solder	Right Angle Surface Mount	Glass Filled LCP Liquid Crystal Polymer	85 °C	-25 °C	Bottom Contacts	0.2 mm	Solder Retention Zero Insertion Force (ZIF)	45	Gold	0.01 in	Copper Alloy	UL94 V-0	Glass Filled Liquid Crystal Polymer (LCP)	0.051 in	50 V	Natural	Black	0.2 A
