5179009 Series

Catalog

CONN RCPT 120POS SMD GOLD

Part	Features	Contact Finish	Connector Type	Number of Positions	Mated Stacking Height Options	Contact Finish Thickness	Mounting Type	Number of Rows	Height Above Board	Pitch

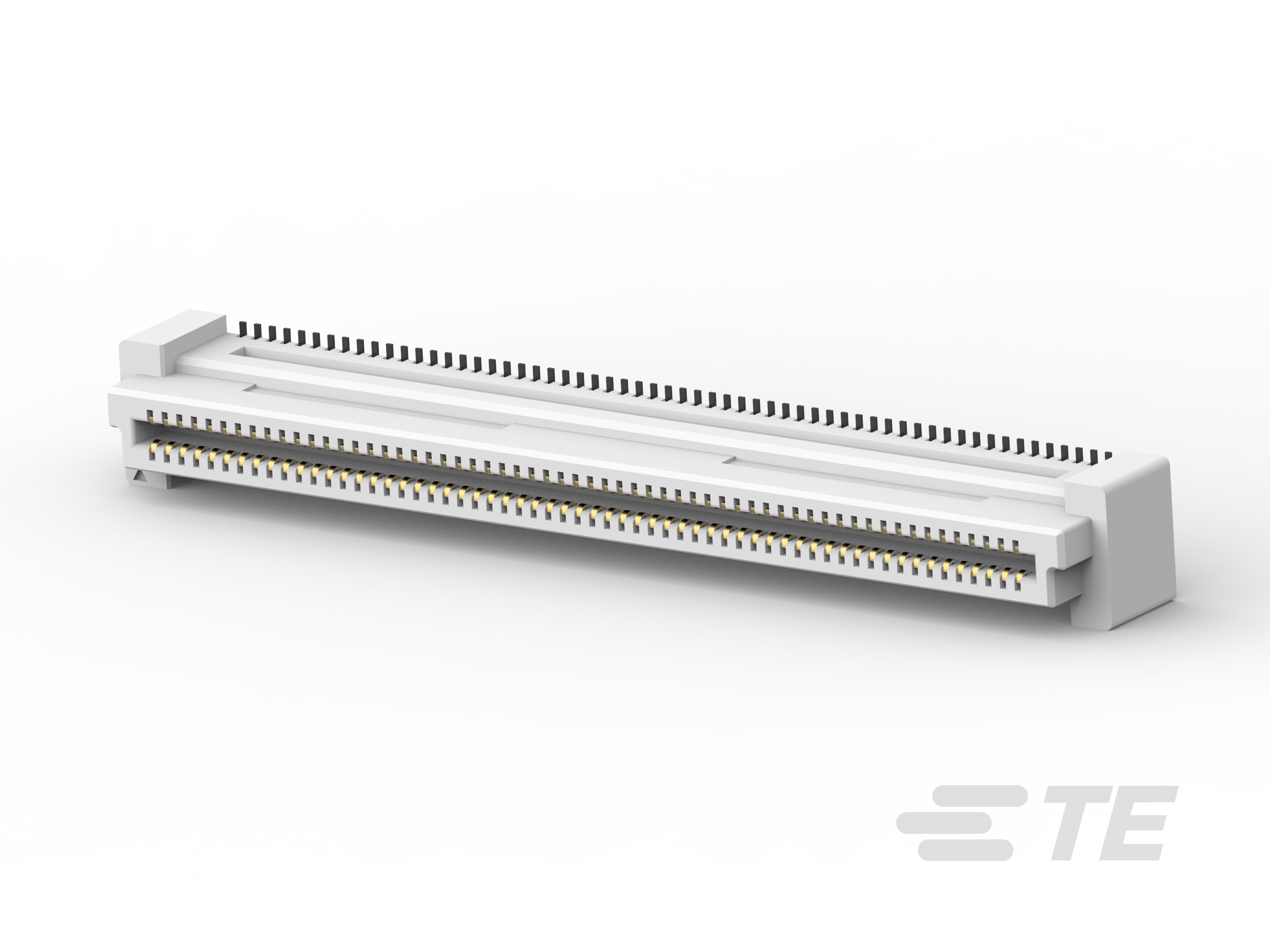

TE Connectivity AMP Connectors 5-5179009-5	Board Guide	Gold	Outer Shroud Contacts Receptacle	120	10mm 11mm 12mm 9mm	8 µin	Surface Mount	2	0.305 in	0.031 in
TE Connectivity AMP Connectors 6-5179009-0	Board Guide	Gold	Outer Shroud Contacts Receptacle	200	10mm 11mm 12mm 9mm	8 µin	Surface Mount	2	0.305 in	0.031 in
TE Connectivity AMP Connectors 5-5179009-9	Board Guide	Gold	Outer Shroud Contacts Receptacle	180	10mm 11mm 12mm 9mm	8 µin	Surface Mount	2	0.305 in	0.031 in
TE Connectivity AMP Connectors 5-5179009-8	Board Guide	Gold	Outer Shroud Contacts Receptacle	160	10mm 11mm 12mm 9mm	8 µin	Surface Mount	2	0.305 in	0.031 in

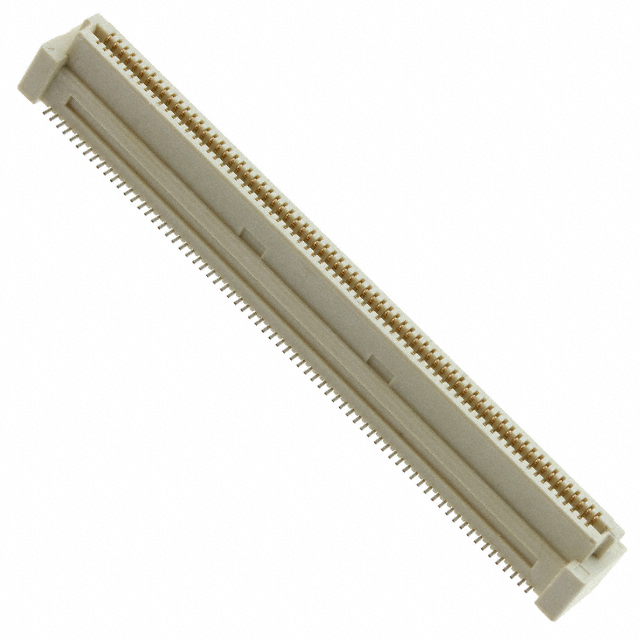

TE Connectivity AMP Connectors 5-5179009-6	Board Guide	Gold	Outer Shroud Contacts Receptacle	140	10mm 11mm 12mm 9mm	8 µin	Surface Mount	2	0.305 in	0.031 in
TE Connectivity AMP Connectors 5-5179009-1	Board Guide	Gold	Outer Shroud Contacts Receptacle	40	10mm 11mm 12mm 9mm	8 µin	Surface Mount	2	0.305 in	0.031 in
TE Connectivity AMP Connectors 5-5179009-4	Board Guide	Gold	Outer Shroud Contacts Receptacle	100	10mm 11mm 12mm 9mm	8 µin	Surface Mount	2	0.305 in	0.031 in
