FUSE 1000V 3AB FA PT PB-FREE .315A
Description
AI
It is a ceramic body 6.3x32mm size 3AB fuse with remarkable interrupting rating designed for high-energy 1000V AC/DC protection in the multimeter market and similar applications.
Beta
⌘K
FUSE 1000V 3AB FA PT PB-FREE .315A
FUSE 1000V 3AB FA PT PB-FREE .315A
| Part | DC Cold Resistance | Size / Dimension Length | Size / Dimension Diameter | Current Rating | Voltage Rating - DC | Response Time | Approval Agency | Voltage Rating - AC | Melting I²t | Fuse Type | Mounting Type | Package Length | Package Name | Package Features | Package Diameter | Package Width | Operating Temperature (Max) | Operating Temperature (Min) | Breaking Capacity | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

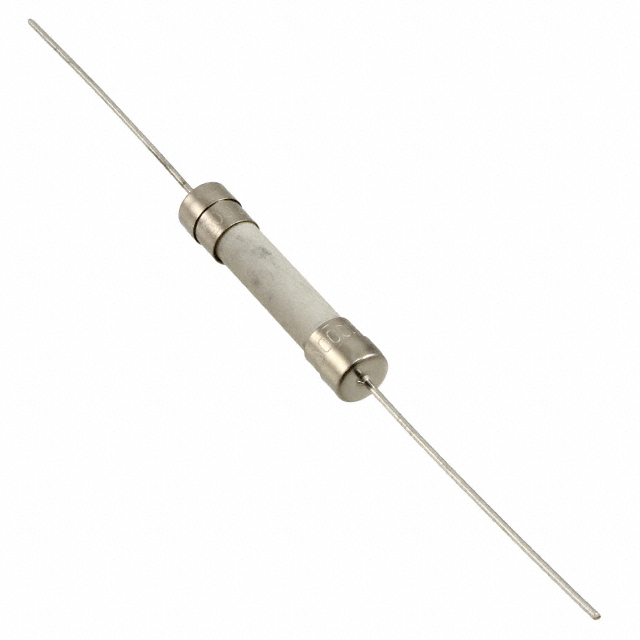

 LITTELFUSE | 9.2 Ohms | 1.288 in | 0.275 in | 0.315 A | 1 kV | Fast Blow | CE cULus | 1 kVAC | 0.071 | Cartridge Ceramic | Through Hole | 0.25 in 1.25 in | 3AB 3AG | Axial | 0.25 in | 1.25 in | 125 °C | -55 °C | 10 kA | |
 LITTELFUSE | 9.2 Ohms | 1.26 in | 0.248 in | 0.315 A | 1 kV | Fast Blow | CE cULus | 1 kVAC | 0.0071 | Cartridge Ceramic | Requires Holder | 1.25 in | 3AB 3AG | 0.25 in | 125 °C | -55 °C | 10 kA | 1/4" x 1-1/4" 3AB 3AG |
