2842248 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

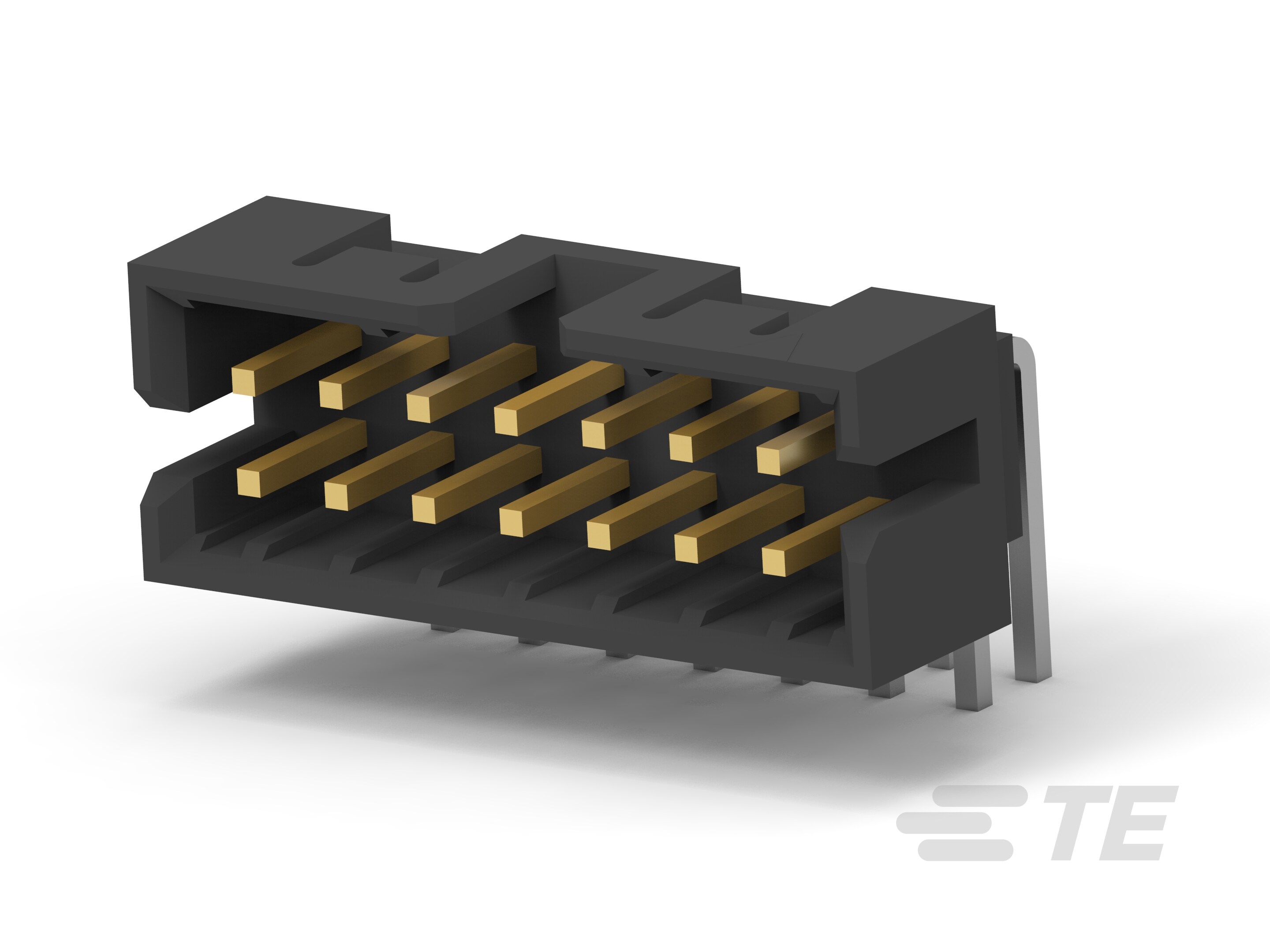

34P,2MM,SHRD HDR,DRRT,0.1AU,TB

Part	Insulation Material	Contact Shape	Connector Type	Number of Positions	Row Spacing - Mating	Number of Rows	Contact Type	Contact Material	Shrouding	Insulation Color	Insulation Height	Style	Voltage Rating	Voltage Rating (Type)	Contact Length - Post	Contact Length - Mating	Current Rating	Number of Positions Loaded	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Termination	Fastening Type	Contact Finish - Mating	Contact Finish - Post	Pitch - Mating	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Applications
TE Connectivity AMP Connectors 3-2842248-4	Thermoplastic	Square	Header	34	0.079 in	2	Male Pin	Copper Alloy	Shrouded - 4 Wall	Black	0.248 in	Board Board or Cable	125 V	DC	0.098 in	0.142 in	2 A	All	125 °C	-40 °C	Right Angle Through Hole	Solder	Detent Lock	Gold	Tin	0.079 in	UL94 V-0	3.94 µin	78.7 µin
TE Connectivity AMP Connectors 3-2842248-0	Thermoplastic	Square	Header	30	0.079 in	2	Male Pin	Copper Alloy	Shrouded - 4 Wall	Black	0.248 in	Board Board or Cable	125 V	DC	0.098 in	0.142 in	2 A	All	125 °C	-40 °C	Right Angle Through Hole	Solder	Detent Lock	Gold	Tin	0.079 in	UL94 V-0	3.94 µin	78.7 µin
TE Connectivity AMP Connectors 5-2842248-0	Thermoplastic	Square	Header	50	0.079 in	2	Male Pin	Copper Alloy	Shrouded - 4 Wall	Black	0.248 in	Board Board or Cable	125 V	DC	0.098 in	0.142 in	2 A	All	125 °C	-40 °C	Right Angle Through Hole	Solder	Detent Lock	Gold	Tin	0.079 in	UL94 V-0	3.94 µin	78.7 µin
TE Connectivity AMP Connectors 2-2842248-6	Thermoplastic	Square	Header	26	0.079 in	2	Male Pin	Copper Alloy	Shrouded - 4 Wall	Black	0.248 in	Board Board or Cable	125 V	DC	0.098 in	0.142 in	2 A	All	125 °C	-40 °C	Right Angle Through Hole	Solder	Detent Lock	Gold	Tin	0.079 in	UL94 V-0	3.94 µin	78.7 µin
TE Connectivity AMP Connectors 4-2842248-4	Thermoplastic	Square	Header	44	0.079 in	2	Male Pin	Copper Alloy	Shrouded - 4 Wall	Black	0.248 in	Board Board or Cable	125 V	DC	0.098 in	0.142 in	2 A	All	125 °C	-40 °C	Right Angle Through Hole	Solder	Detent Lock	Gold	Tin	0.079 in	UL94 V-0	3.94 µin	78.7 µin
TE Connectivity AMP Connectors 1-2842248-4	Thermoplastic	Square	Header	14	0.079 in	2	Male Pin	Copper Alloy	Shrouded - 4 Wall	Black	0.248 in	Board Board or Cable	125 V	DC	0.098 in	0.141 in	2 A	All	125 °C	-40 °C	Right Angle Through Hole	Solder	Detent Lock	Gold	Tin	0.079 in	UL94 V-0	3.94 µin	78.7 µin	General Purpose Industrial
TE Connectivity AMP Connectors 1-2842248-6	Thermoplastic	Square	Header	16	0.079 in	2	Male Pin	Copper Alloy	Shrouded - 4 Wall	Black	0.248 in	Board Board or Cable	125 V	DC	0.098 in	0.141 in	2 A	All	125 °C	-40 °C	Right Angle Through Hole	Solder	Detent Lock	Gold	Tin	0.079 in	UL94 V-0	3.94 µin	78.7 µin	General Purpose Industrial
TE Connectivity AMP Connectors 4-2842248-0	Thermoplastic	Square	Header	40	0.079 in	2	Male Pin	Copper Alloy	Shrouded - 4 Wall	Black	0.248 in	Board Board or Cable	125 V	DC	0.098 in	0.142 in	2 A	All	125 °C	-40 °C	Right Angle Through Hole	Solder	Detent Lock	Gold	Tin	0.079 in	UL94 V-0	3.94 µin	78.7 µin
TE Connectivity AMP Connectors 2-2842248-4	Thermoplastic	Square	Header	24 pos	0.079 in	2	Male Pin	Copper Alloy	Shrouded - 4 Wall	Black	0.248 in	Board Board or Cable	125 V	DC	0.098 in	0.142 in	2 A	All	125 °C	-40 °C	Right Angle Through Hole	Solder	Detent Lock	Gold	Tin	0.079 in	UL94 V-0	3.94 µin	78.7 µin
