071439 Series

Manufacturer: Molex

Catalog

CONN RCPT 64POS SMD GOLD

Part	Mounting Type	Contact Finish	Features	Pitch	Number of Rows	Number of Positions	Contact Finish Thickness	Connector Type	Height Above Board	Mated Stacking Height	Mated Stacking Height Options
Molex 0714391164	Surface Mount	Gold	Board Guide	0.039 in	2	64	30 µin	Outer Shroud Contacts Receptacle	0.287 in	12 mm

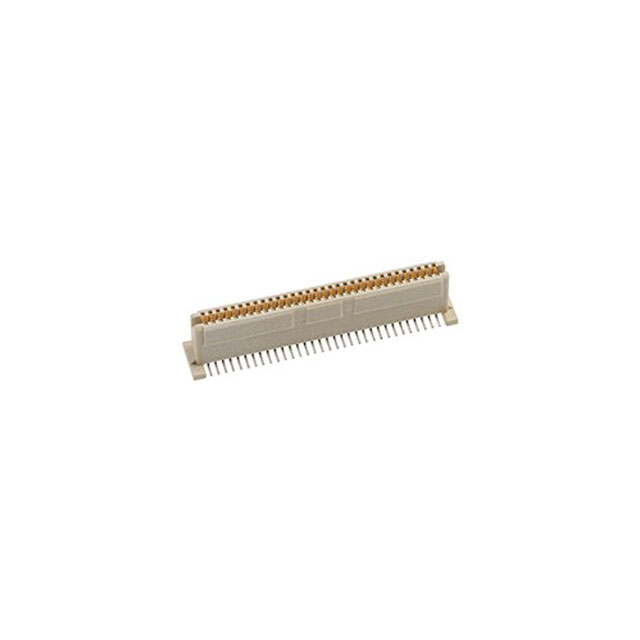

Molex 0714390264	Surface Mount	Gold		0.039 in	2	64	50 µin	Outer Shroud Contacts Receptacle	0.209 in		10mm 8mm 9mm
Molex 0714390846	Surface Mount	Gold		0.039 in	2	64	30 µin	Outer Shroud Contacts Receptacle	0.209 in		10mm 8mm 9mm
Molex 0714390964	Surface Mount	Gold		0.039 in	2	64	30 µin	Outer Shroud Contacts Receptacle	0.209 in		10mm 8mm 9mm
Molex 0714393864	Surface Mount	Gold		0.039 in	2	64	30 µin	Outer Shroud Contacts Receptacle	0.406 in		14mm 15mm
Molex 0714391564	Surface Mount	Gold		0.039 in	2	64	30 µin	Outer Shroud Contacts Receptacle	0.287 in		11mm 12mm
Molex 0714393764	Surface Mount	Gold		0.039 in	2	64	30 µin	Outer Shroud Contacts Receptacle	0.406 in		14mm 15mm
Molex 0714393164	Surface Mount	Gold	Board Guide	0.039 in	2	64	30 µin	Outer Shroud Contacts Receptacle	0.406 in		14mm 15mm
Molex 0714390764	Surface Mount	Gold		0.039 in	2	64	30 µin	Outer Shroud Contacts Receptacle	0.209 in		10mm 8mm 9mm
Molex 0714392364	Surface Mount	Gold		0.039 in	2	64	30 µin	Outer Shroud Contacts Receptacle	0.327 in	13 mm
