747190 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

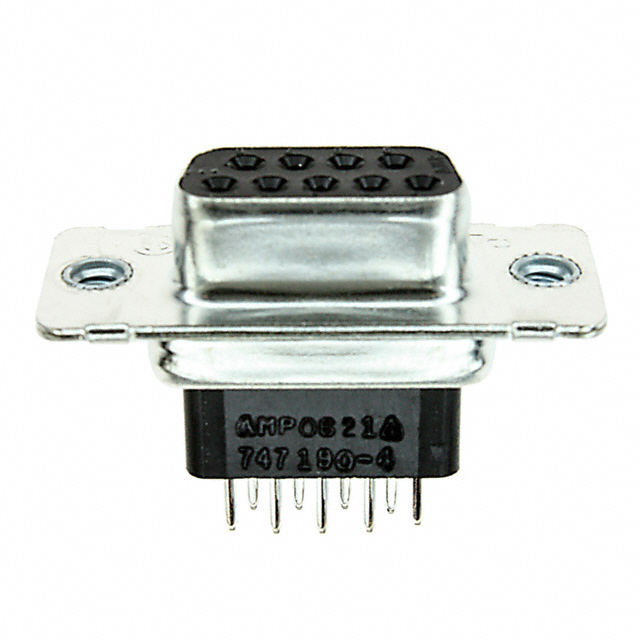

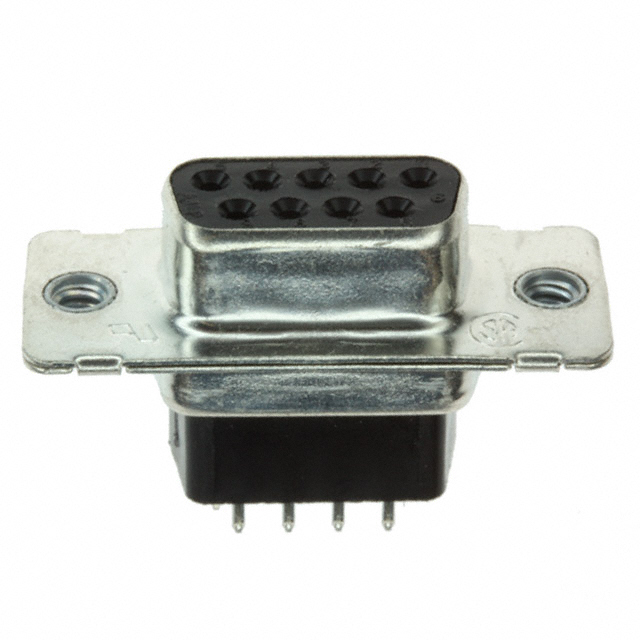

CONN D-SUB RCPT 9POS VERT SLDR
| Part | Flange Feature | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Color | Termination | Contact Material | Contact Type | Mounting Type | Number of Rows | Number of Positions | Voltage Rating | Contact Finish Thickness | Connector Type | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 4-40 Board Side | D-Sub | DE E | 1 | Gold | 105 ░C | -55 °C | 6 A | Black | Solder | Phosphor Bronze | Signal | Through Hole | 2 | 9 | 125 VDC | Flash | Receptacle Female Sockets | UL94 V-0 |
 TE Connectivity Raychem Cable Protection | 4-40 Board Side | D-Sub | DE E | 1 | Gold | 105 ░C | -55 °C | 6 A | Black | Solder | Phosphor Bronze | Signal | Through Hole | 2 | 9 | 125 VDC | Flash | Receptacle Female Sockets | UL94 V-0 |
