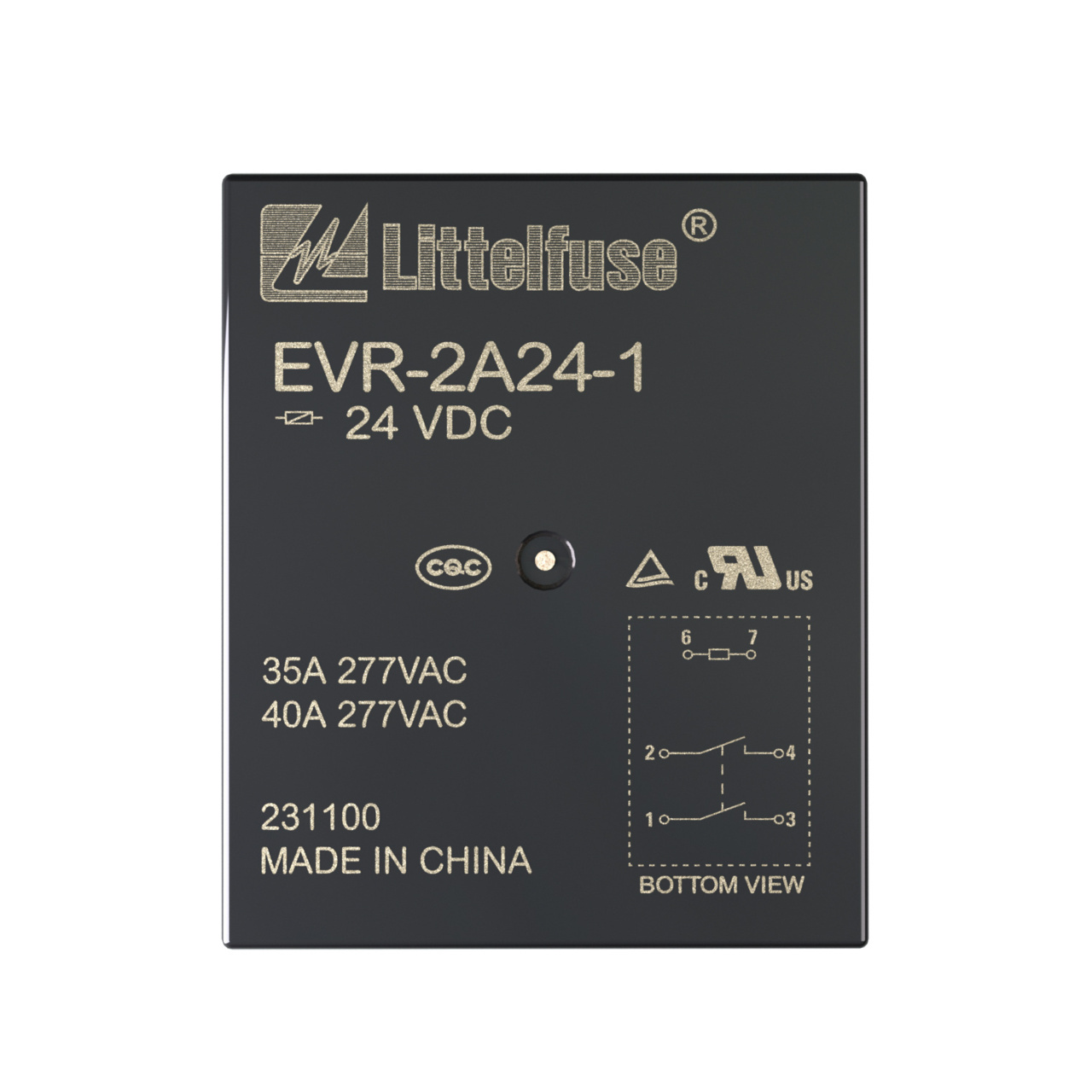

EVR-2A24-1 Series

Relay, 2P, 40A, 24V, Form A

Catalog

Relay, 2P, 40A, 24V, Form A

Part	Relay Type	Must Release Voltage	Coil Voltage	Approval Agency	Coil Type	Form A Count	Contact Form	Coil Current	Switching Voltage AC (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Coil Insulation	Load - Max Switching (Apparent Power)	Must Operate Voltage	Mounting Type	Contact Rating (Current)	Contact Material
LITTELFUSE EVR-2A24-1	General Purpose	1.2 V	24 VDC	CQC cURus IEC TUV	Non Latching	2	DPST-NO	78.3 mA	277 VAC	-40 °C	85 °C	PC Pin	Class F	11080 VA	18 VDC	Through Hole	40 A	Silver Tin Oxide (AgSnO)

Catalog

Relay, 2P, 40A, 24V, Form A

Description

The EVR Series printed circuit board (PCB) two-pole (2P) ac power relay is designed to switch EV charging applications on and off. Its extended contact gap of greater than 3 mm provides better isolation and allows for usage in higher elevation environments. The very compact form factor has a low temperature rise and heavy-duty power switching current up to 40 A/277 V ac. This relay family enables compliance with all EV charging infrastructure standards such as IEC 62955, IEC 62752 and UL 2231.
