6116353 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

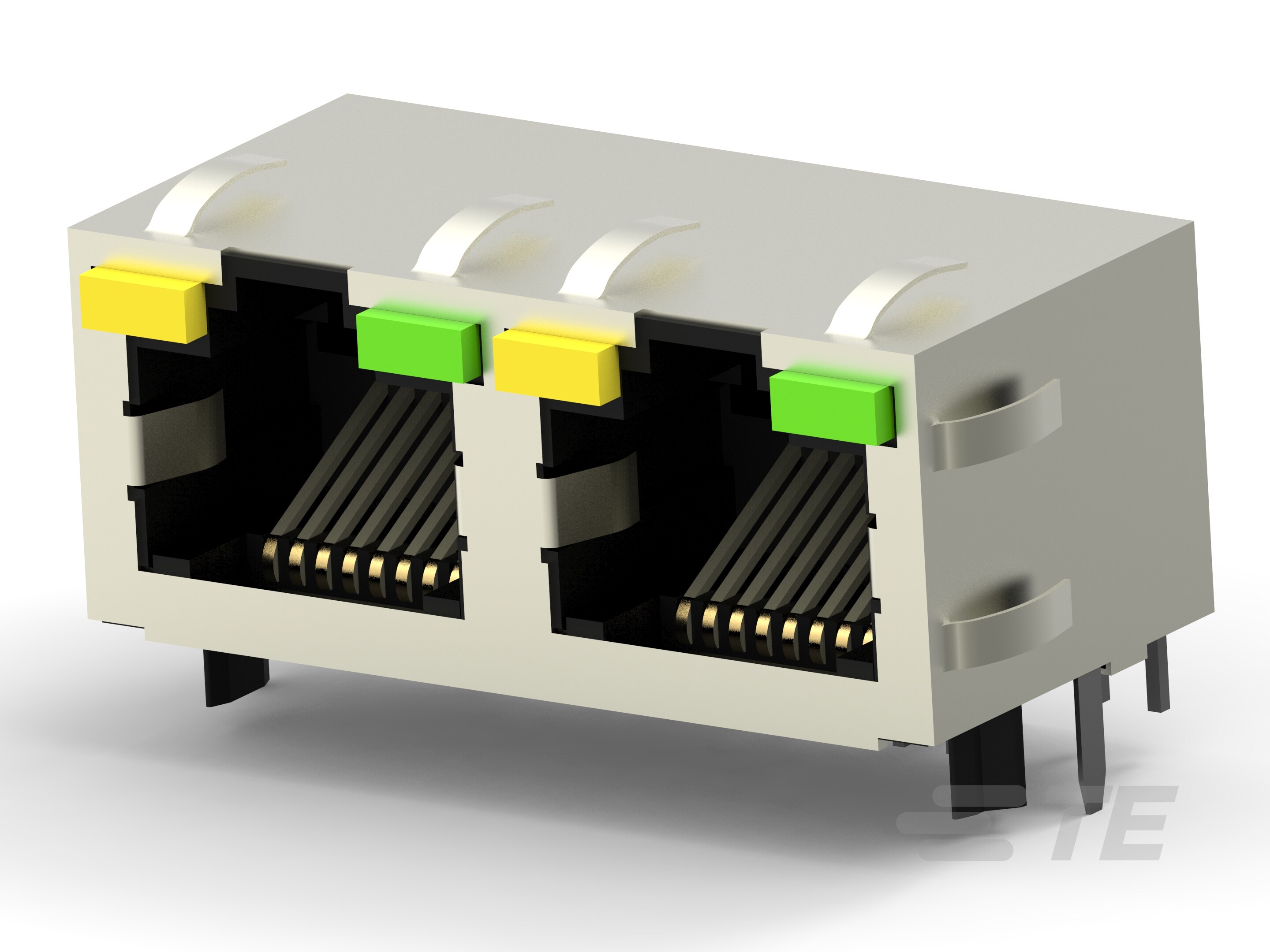

CONN RJ-45 F 16 POS 2.04MM SOLDER RA THRU-HOLE 24 TERMINAL 2 PORT CAT 5 BOX/TRAY
| Part | Connector Type | Mounting Type | Orientation Angle | Orientation Direction | Contact Material | LED Color | Shielding | Termination | Features | Contact Finish | Number of Positions | Number of Contacts | Number of Rows | Tab Direction | Ratings | Number of Ports | Contact Finish Thickness | Housing Material | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Ethernet Jack RJ45 | Through Hole | 90 ° | Right | Phosphor Bronze | Green | EMI Finger Shielded | Solder | Board Guide | Gold | 8 | 8 | 1 | Up | Cat5 | 2 | 50 µin | Thermoplastic | -40 °C | 85 °C |
 TE Connectivity AMP Connectors | Ethernet Jack RJ45 | Through Hole | 90 ° | Right | Phosphor Bronze | Yellow - Green | EMI Finger Shielded | Solder | Board Guide | Gold | 8 | 8 | 1 | Up | 2 | 50 µin | Thermoplastic | |||
TE Connectivity AMP Connectors | Ethernet Jack RJ45 | Through Hole | 90 ° | Right | Phosphor Bronze | Green Green - Yellow Yellow | EMI Finger Shielded | Solder | Board Guide | Gold | 8 | 8 | 1 | Up | Cat5 | 2 | 50 µin | Thermoplastic | -40 °C | 85 °C |
 TE Connectivity AMP Connectors | Ethernet Jack RJ45 | Through Hole | 90 ° | Right | Phosphor Bronze | Green - Yellow | EMI Finger Shielded | Solder | Board Guide | Gold | 8 | 8 | 1 | Up | Cat5 | 2 | 50 µin | Thermoplastic | -40 °C | 85 °C |
 TE Connectivity AMP Connectors | Ethernet Jack RJ45 | Through Hole | 90 ° | Right | Phosphor Bronze | Yellow - Green | EMI Finger Shielded | Solder | Board Guide | Gold | 8 | 8 | 1 | Up | Cat5 | 2 | 50 µin | Thermoplastic | -40 °C | 85 °C |
 TE Connectivity AMP Connectors | Ethernet Jack RJ45 | Through Hole | 90 ° | Right | Phosphor Bronze | Green - Green | EMI Finger Shielded | Solder | Board Guide | Gold | 8 | 8 | 1 | Up | Cat5 | 2 | 50 µin | Thermoplastic | -40 °C | 85 °C |
 TE Connectivity AMP Connectors | Ethernet Jack RJ45 | Through Hole | 90 ° | Right | Phosphor Bronze | Green Green - Red Red | EMI Finger Shielded | Solder | Board Guide | Gold | 8 | 8 | 1 | Up | Cat5 | 2 | 50 µin | Thermoplastic | -40 °C | 85 °C |
 TE Connectivity AMP Connectors | Ethernet Jack RJ45 | Through Hole | 90 ° | Right | Phosphor Bronze | Yellow - Green | EMI Finger Shielded | Solder | Board Guide | Gold | 8 | 8 | 1 | Up | Cat5 | 2 | 50 µin | Thermoplastic | -40 °C | 85 °C |
