747321 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN D-SUB PLUG 9POS IDC
| Part | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Features | Shell Material, Finish | Material Flammability Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Type | Contact Finish | Contact Material | Current Rating (Amps) | Contact Type | Number of Rows | Mounting Type | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Color | Flange Feature | Connector Style | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

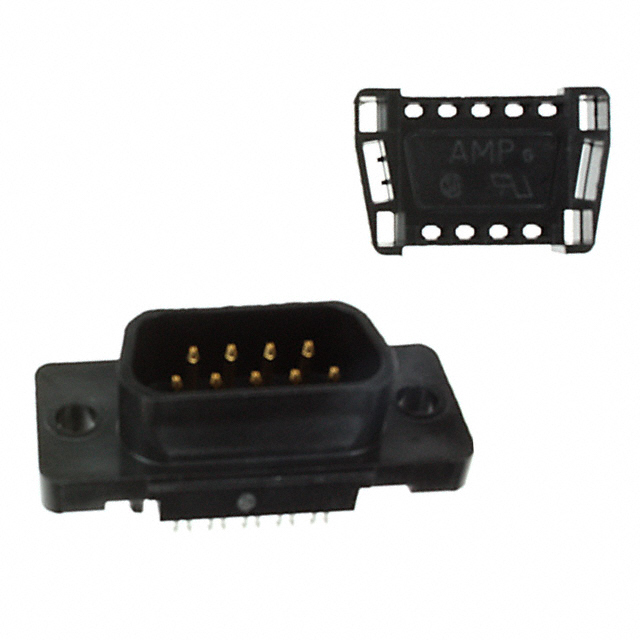

 TE Connectivity Raychem Cable Protection | 0.76 Ám | 30 Áin | 9 | Feed Through | Steel | UL94 V-0 | DE E | 1 | Male Pins Plug | Gold | Phosphor Bronze | 1.25 A | Signal | 2 | Free Hanging (In-Line) | Thermoplastic | 105 ░C | -55 °C | IDC Ribbon Cable | Black | Housing/Shell (Unthreaded) | D-Sub | |

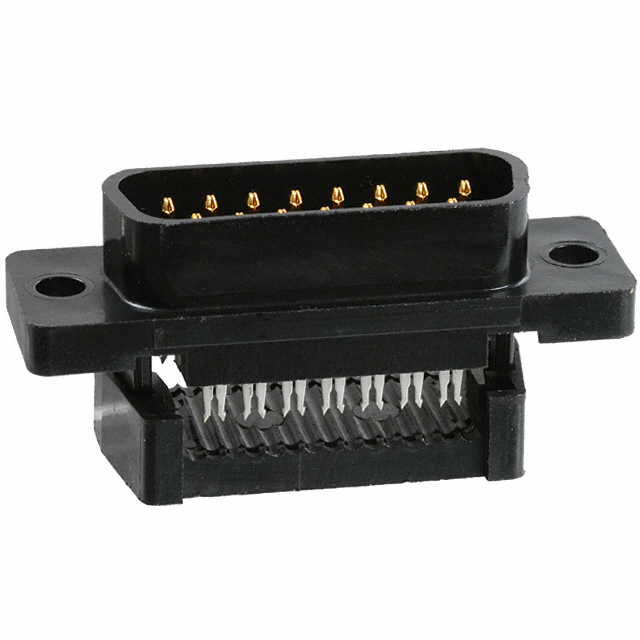

 TE Connectivity Raychem Cable Protection | 0.76 Ám | 30 Áin | 15 | Feed Through | Steel | UL94 V-0 | Male Pins Plug | Gold | Phosphor Bronze | 1.25 A | Signal | 2 | Free Hanging (In-Line) | Thermoplastic | 105 ░C | -55 °C | IDC Ribbon Cable | Black | Housing/Shell (Unthreaded) | D-Sub | 2 |
