019002 Series

Manufacturer: Molex

Catalog

CONN QC RCPT 18-22AWG 0.110

Part	Insulation	Tab Thickness	Contact Finish	Tab Width	Terminal Type	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Length - Overall	Mounting Type	Contact Material	Termination	Color	Gender	Insulation Diameter
Molex 0190020014	Fully Insulated	0.02 in	Tin	0.11 in	Standard	18 AWG	22 AWG	0.8 in	Free Hanging (In-Line)	Brass	Crimp	Red	Female	0.12 in

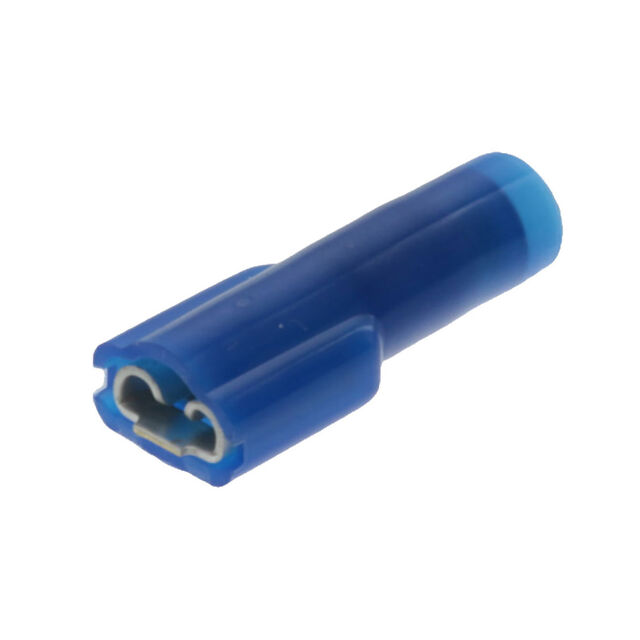

Molex 0190020030	Fully Insulated	0.02 in	Electro-Tin	0.187 in	Standard	14 AWG	16 AWG	0.8 in	Free Hanging (In-Line)	Brass	Crimp	Blue	Female	0.14 in
Molex 0190020022	Fully Insulated	0.032 in	Electro-Tin	0.205 in	Standard	18 AWG	22 AWG	0.8 in	Free Hanging (In-Line)	Brass	Crimp	Red	Female	0.12 in
Molex 0190020032	Fully Insulated	0.032 in	Electro-Tin	0.187 in	Standard	14 AWG	16 AWG	0.8 in	Free Hanging (In-Line)	Brass	Crimp	Blue	Female	0.14 in
Molex 0190020015	Fully Insulated	0.02 in	Tin	0.11 in	Standard	18 AWG	22 AWG	0.8 in	Free Hanging (In-Line)	Brass	Crimp	Red	Female	0.12 in
Molex 0190020021	Fully Insulated	0.032 in	Electro-Tin	0.205 in	Standard	18 AWG	22 AWG	0.8 in	Free Hanging (In-Line)	Brass	Crimp	Red	Female	0.12 in
Molex 0190020001	Fully Insulated	0.032 in	Tin	0.25 in	Standard	18 AWG	22 AWG	0.89 in	Free Hanging (In-Line)	Brass	Crimp	Red	Female	0.12 in
Molex 0190020036	Fully Insulated	0.02 in	Electro-Tin	0.11 in	Standard	14 AWG	16 AWG	0.8 in	Free Hanging (In-Line)	Brass	Crimp	Blue	Female	0.14 in
Molex 0190020005	Fully Insulated	0.02 in	Tin	0.187 in	Standard	18 AWG	22 AWG	0.8 in	Free Hanging (In-Line)	Brass	Crimp	Red	Female	0.12 in
Molex 0190020029	Fully Insulated	0.02 in	Electro-Tin	0.187 in	Standard	14 AWG	16 AWG	0.8 in	Free Hanging (In-Line)	Brass	Crimp	Blue	Female	0.14 in
