ELL-VGG Series

Catalog

FIXED IND 1.6UH 1.55A 73MOHM SMD

Part	Current - Saturation (Isat)	Height - Seated (Max)	Shielding	DC Resistance (DCR)	Tolerance	Mounting Type	Current Rating	Inductance Frequency - Test	Type	Size / Dimension Width	Size / Dimension Length	Inductance	Package / Case
Panasonic Electronic Components ELL-VGG1R6N	1.8 A	0.059 in	Shielded	73 mOhm	30 %	Surface Mount	1.55 A	100 kHz	Wirewound	0.118 in	0.118 in	1.6 µH	Nonstandard
Panasonic Electronic Components ELL-VGG3R9N	1.3 A	0.059 in	Shielded	150 mOhm	30 %	Surface Mount	1 A	100 kHz	Wirewound	0.118 in	0.118 in	3.9 µH	Nonstandard

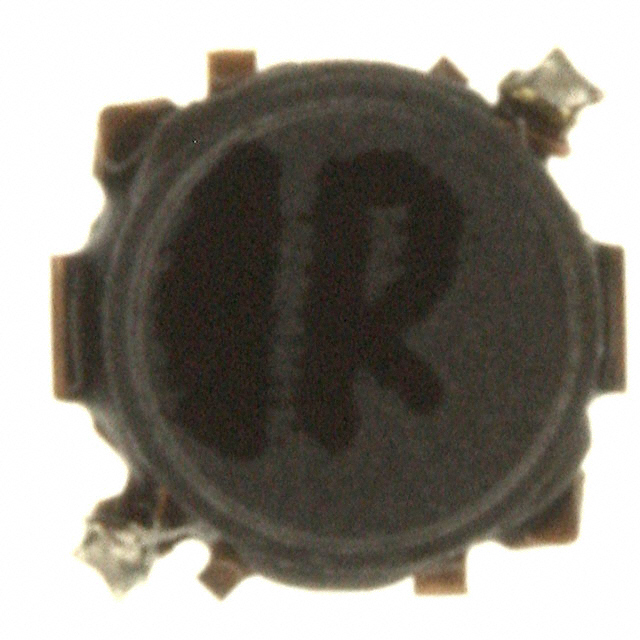

Panasonic Electronic Components ELL-VGG220M	0.5 mA	0.059 in	Shielded	800 mOhm	20 %	Surface Mount	460 mA	100 kHz	Wirewound	0.118 in	0.118 in	22 µH	Nonstandard
Panasonic Electronic Components ELL-VGG6R8N	1 A	0.059 in	Shielded	230 mOhm	30 %	Surface Mount	800 mA	100 kHz	Wirewound	0.118 in	0.118 in	6.8 µH	Nonstandard
Panasonic Electronic Components ELL-VGG1R0N	2.2 A	0.059 in	Shielded	52 mOhm	30 %	Surface Mount	1.8 A	100 kHz	Wirewound	0.118 in	0.118 in	1 µH	Nonstandard
Panasonic Electronic Components ELL-VGG4R7N	1.2 A	0.059 in	Shielded	170 mOhm	30 %	Surface Mount	0.98 A	100 kHz	Wirewound	0.118 in	0.118 in	4.7 µH	Nonstandard
