NMD05 Series

Catalog

DC DC CONVERTER 5V 9V 1W

Part	Number of Outputs	Voltage - Output 2	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Operating Temperature (Max)	Voltage - Input (Min)	Package Leads	Package Name	Type	Current - Output (Max) Options	Applications	Voltage - Output 1	Power (Watts)	Efficiency	Mounting Type	Voltage - Input (Max)	Voltage - Isolation
Murata Electronics NMD050509DC	2	9 V	0.27 in	0.39 in	0.77 in	70 °C	4.5 V	7 Leads	14-DIP Module	Isolated Module	100mA 56mA	ITE (Commercial)	5 V	1 W	80 %	Through Hole	5.5 V	1000 Vrms

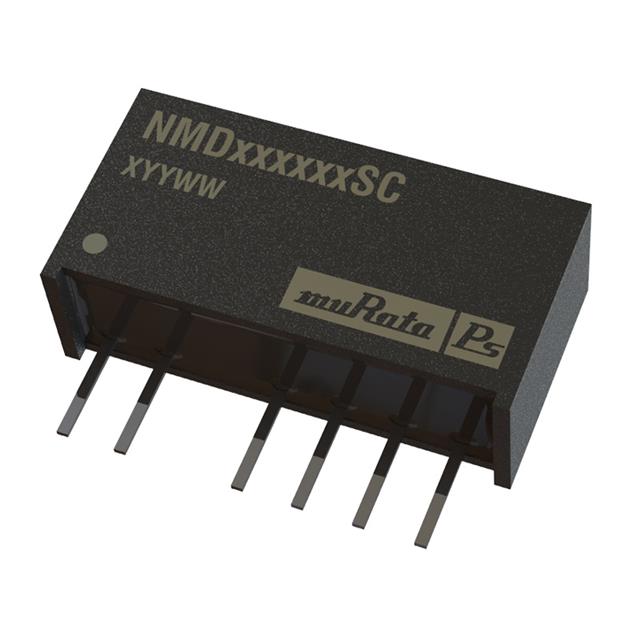

Murata Electronics NMD050505SC	2	5 V	0.39 in	0.24 in	0.77 in	70 °C	4.5 V	6 Leads	7-SIP Module	Isolated Module	100mA	ITE (Commercial)	5 V	1 W	70 %	Through Hole	5.5 V	1000 Vrms
Murata Electronics NMD050505DC	2	5 V	0.27 in	0.39 in	0.77 in	70 °C	4.5 V	7 Leads	14-DIP Module	Isolated Module	100mA	ITE (Commercial)	5 V	1 W	70 %	Through Hole	5.5 V	1000 Vrms
Murata Electronics NMD050509SC	2	9 V	0.39 in	0.24 in	0.77 in	70 °C	4.5 V	6 Leads	7-SIP Module	Isolated Module	100mA 56mA	ITE (Commercial)	5 V	1 W	80 %	Through Hole	5.5 V	1000 Vrms
Murata Electronics NMD050515SC	2	15 V	0.39 in	0.24 in	0.77 in	70 °C	4.5 V	6 Leads	7-SIP Module	Isolated Module	100mA 34mA	ITE (Commercial)	5 V	1 W	80 %	Through Hole	5.5 V	1000 Vrms
