2342076 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PLUGGABLE TERMINAL BLOCKS 23POS HDR 90 DEG,HT, 3.5MM PITCH,TL1.9MM

Part	Current - UL	Header Orientation Angle	Header Orientation	Termination Style	Color	Type	Mounting Type	Number of Levels	Voltage - UL	Positions Per Level	Pitch	Number of Positions	Features	Operating Temperature (Min)	Operating Temperature (Max)	Contact Mating Finish	Material Flammability Rating	Insulation Height	Housing Material	Contact Material	Contact Tail Length
TE Connectivity AMP Connectors 2-2342076-3	11 A	90 °	Right Angle	Solder	Black	Header Male Pins Shrouded (4 Side)	Through Hole	1	300 V	23	0.138 in	23	High Temp Housing	-40 °C	105 °C	Tin	UL94 V-0	0.285 in	Nylon PA Polyamide	Copper Alloy	0.075 in
TE Connectivity AMP Connectors 2342076-9	11 A	90 °	Right Angle	Solder	Black	Header Male Pins Shrouded (4 Side)	Through Hole	1	300 V	9	0.138 in	9	High Temp Housing	-40 °C	105 °C	Tin	UL94 V-0	0.285 in	Nylon PA Polyamide	Copper Alloy	0.075 in
TE Connectivity AMP Connectors 1-2342076-7	11 A	90 °	Right Angle	Solder	Black	Header Male Pins Shrouded (4 Side)	Through Hole	1	300 V	17	0.138 in	17	High Temp Housing	-40 °C	105 °C	Tin	UL94 V-0	0.285 in	Nylon PA Polyamide	Copper Alloy	0.075 in

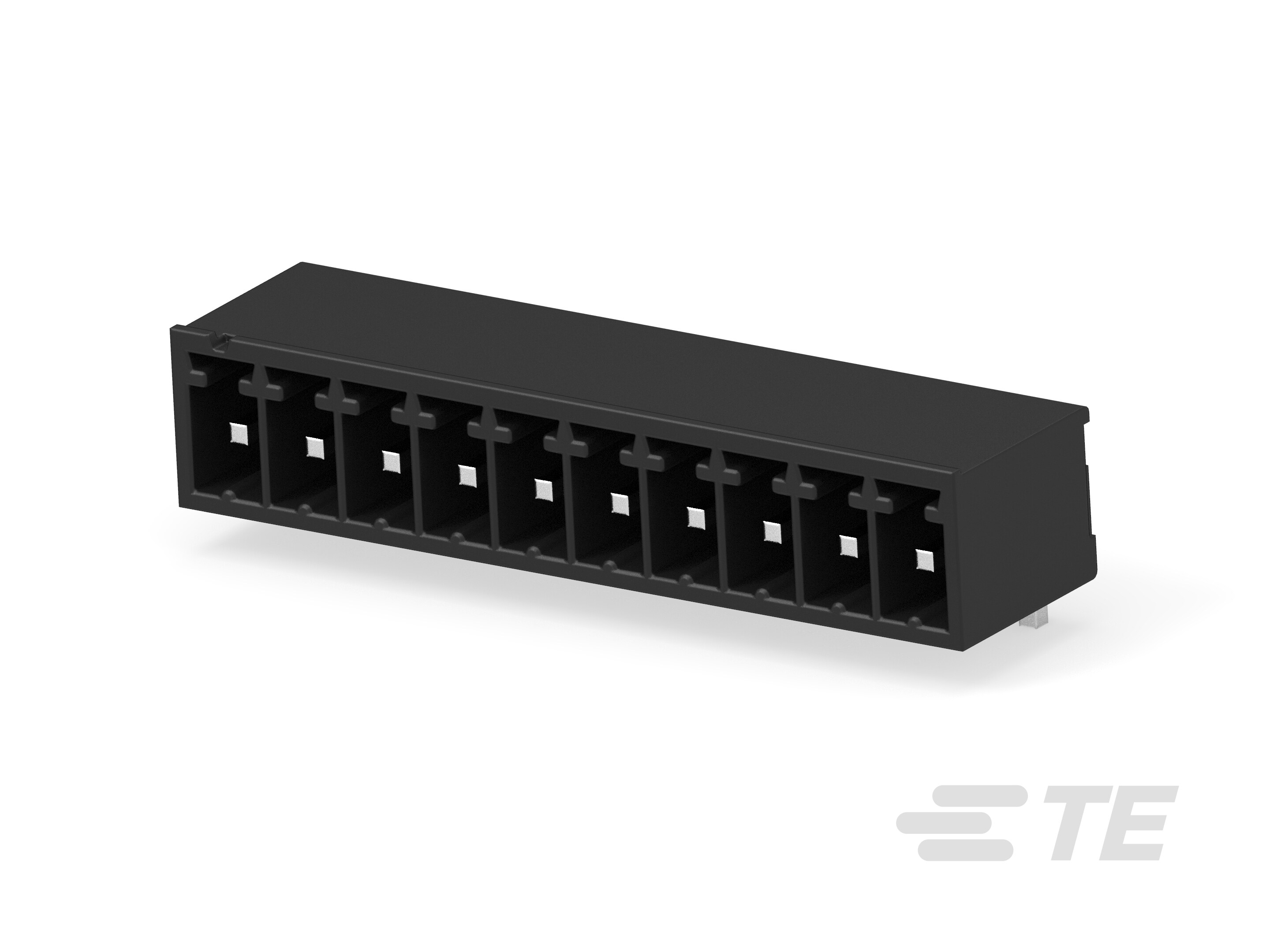

TE Connectivity AMP Connectors 1-2342076-0	11 A	90 °	Right Angle	Solder	Black	Header Male Pins Shrouded (4 Side)	Through Hole	1	300 V	10	0.138 in	10	High Temp Housing	-40 °C	105 °C	Tin	UL94 V-0	0.285 in	Nylon PA Polyamide	Copper Alloy	0.075 in
TE Connectivity AMP Connectors 2342076-7	11 A	90 °	Right Angle	Solder	Black	Header Male Pins Shrouded (4 Side)	Through Hole	1	300 V	7	0.138 in	7	High Temp Housing	-40 °C	105 °C	Tin	UL94 V-0	0.285 in	Nylon PA Polyamide	Copper Alloy	0.075 in
TE Connectivity AMP Connectors 1-2342076-5	11 A	90 °	Right Angle	Solder	Black	Header Male Pins Shrouded (4 Side)	Through Hole	1	300 V	15	0.138 in	15	High Temp Housing	-40 °C	105 °C	Tin	UL94 V-0	0.285 in	Nylon PA Polyamide	Copper Alloy	0.075 in
TE Connectivity AMP Connectors 1-2342076-9	11 A	90 °	Right Angle	Solder	Black	Header Male Pins Shrouded (4 Side)	Through Hole	1	300 V	19	0.138 in	19	High Temp Housing	-40 °C	105 °C	Tin	UL94 V-0	0.285 in	Nylon PA Polyamide	Copper Alloy	0.075 in
TE Connectivity AMP Connectors 2342076-8	11 A	90 °	Right Angle	Solder	Black	Header Male Pins Shrouded (4 Side)	Through Hole	1	300 V	8	0.138 in	8	High Temp Housing	-40 °C	105 °C	Tin	UL94 V-0	0.285 in	Nylon PA Polyamide	Copper Alloy	0.075 in
TE Connectivity AMP Connectors 1-2342076-6	11 A	90 °	Right Angle	Solder	Black	Header Male Pins Shrouded (4 Side)	Through Hole	1	300 V	16	0.138 in	16	High Temp Housing	-40 °C	105 °C	Tin	UL94 V-0	0.285 in	Nylon PA Polyamide	Copper Alloy	0.075 in
TE Connectivity AMP Connectors 1-2342076-8	11 A	90 °	Right Angle	Solder	Black	Header Male Pins Shrouded (4 Side)	Through Hole	1	300 V	18	0.138 in	18	High Temp Housing	-40 °C	105 °C	Tin	UL94 V-0	0.285 in	Nylon PA Polyamide	Copper Alloy	0.075 in
