644892 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 3POS 2.54MM

Part	Pitch - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Contact Shape	Contact Finish - Post	Mounting Type	Number of Positions Loaded	Number of Rows	Contact Length - Post	Contact Type	Contact Material	Shrouding	Insulation Height	Insulation Material	Material Flammability Rating	Termination	Current Rating	Connector Type	Number of Positions	Fastening Type	Contact Finish - Mating	Style	Voltage Rating	Insulation Color	Contact Length - Mating	Overall Contact Length	Applications

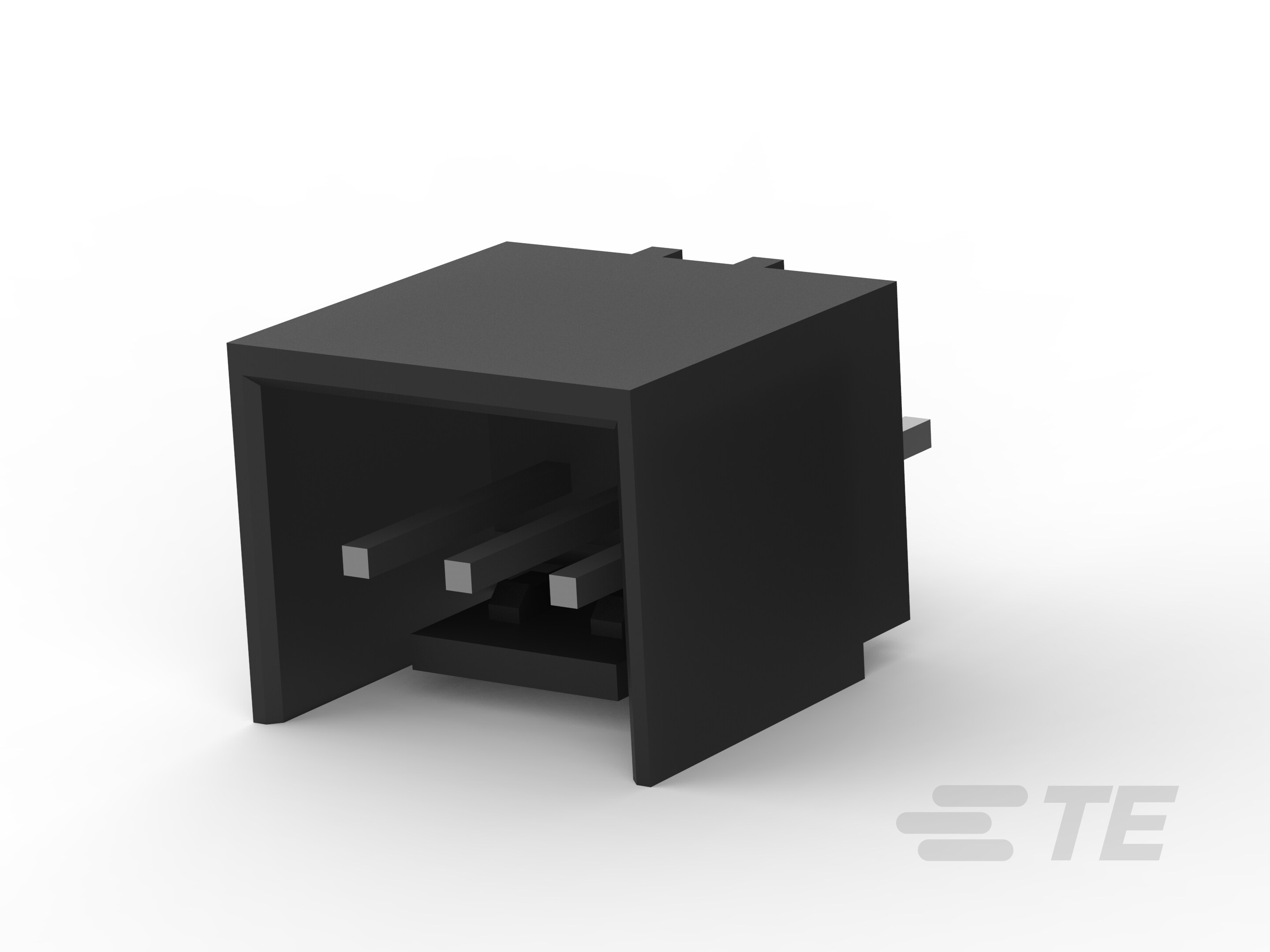

TE Connectivity AMP Connectors 3-644892-3	0.1 in	-55 °C	105 °C	Square	Tin	Through Hole	All	1	0.14 in	Male Pin	Copper Alloy	Shrouded - 4 Wall	0.41 in	Polyester	UL94 V-0	Solder	Varies by Wire Gauge	Header	3	Friction Lock	Tin	Board Cable/Wire	250 V	Black	0.28 in	0.52 in	General Purpose Lighting
TE Connectivity AMP Connectors 3-644892-8	0.1 in	-55 °C	105 °C	Square	Tin	Through Hole	All	1	0.14 in	Male Pin	Copper Alloy	Shrouded - 4 Wall	0.41 in	Polyester	UL94 V-0	Solder	Varies by Wire Gauge	Header	8	Friction Lock	Tin	Board Cable/Wire	250 V	Black	0.28 in	0.52 in	General Purpose Lighting
TE Connectivity AMP Connectors 3-644892-4	0.1 in	-55 °C	105 °C	Square	Tin	Through Hole	All	1	0.14 in	Male Pin	Copper Alloy	Shrouded - 4 Wall	0.41 in	Polyester	UL94 V-0	Solder	Varies by Wire Gauge	Header	4	Friction Lock	Tin	Board Cable/Wire	250 V	Black	0.28 in	0.52 in	General Purpose Lighting
TE Connectivity AMP Connectors 644892-6	0.1 in	-55 °C	105 °C	Square	Tin-Lead	Through Hole	All	1	0.14 in	Male Pin	Copper Alloy	Shrouded - 4 Wall	0.41 in	Polyester	UL94 V-0	Solder	Varies by Wire Gauge	Header	6	Friction Lock	Tin-Lead	Board Cable/Wire	250 V	Black	0.28 in	0.52 in	General Purpose Lighting

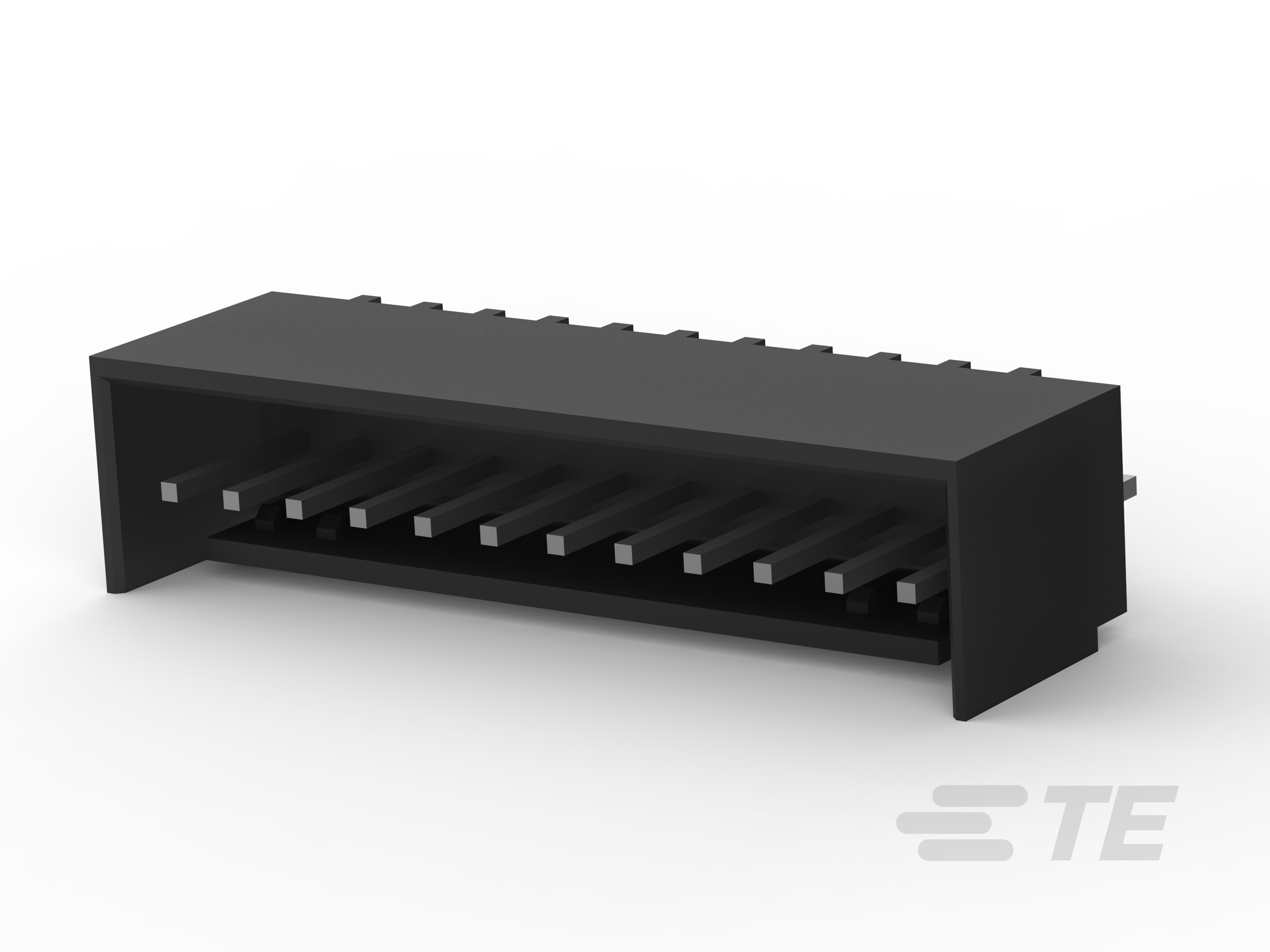

TE Connectivity AMP Connectors 4-644892-2	0.1 in	-55 °C	105 °C	Square	Tin	Through Hole	All	1	0.14 in	Male Pin	Copper Alloy	Shrouded - 4 Wall	0.41 in	Polyester	UL94 V-0	Solder	Varies by Wire Gauge	Header	12	Friction Lock	Tin	Board Cable/Wire	250 V	Black	0.28 in	0.52 in	General Purpose Lighting

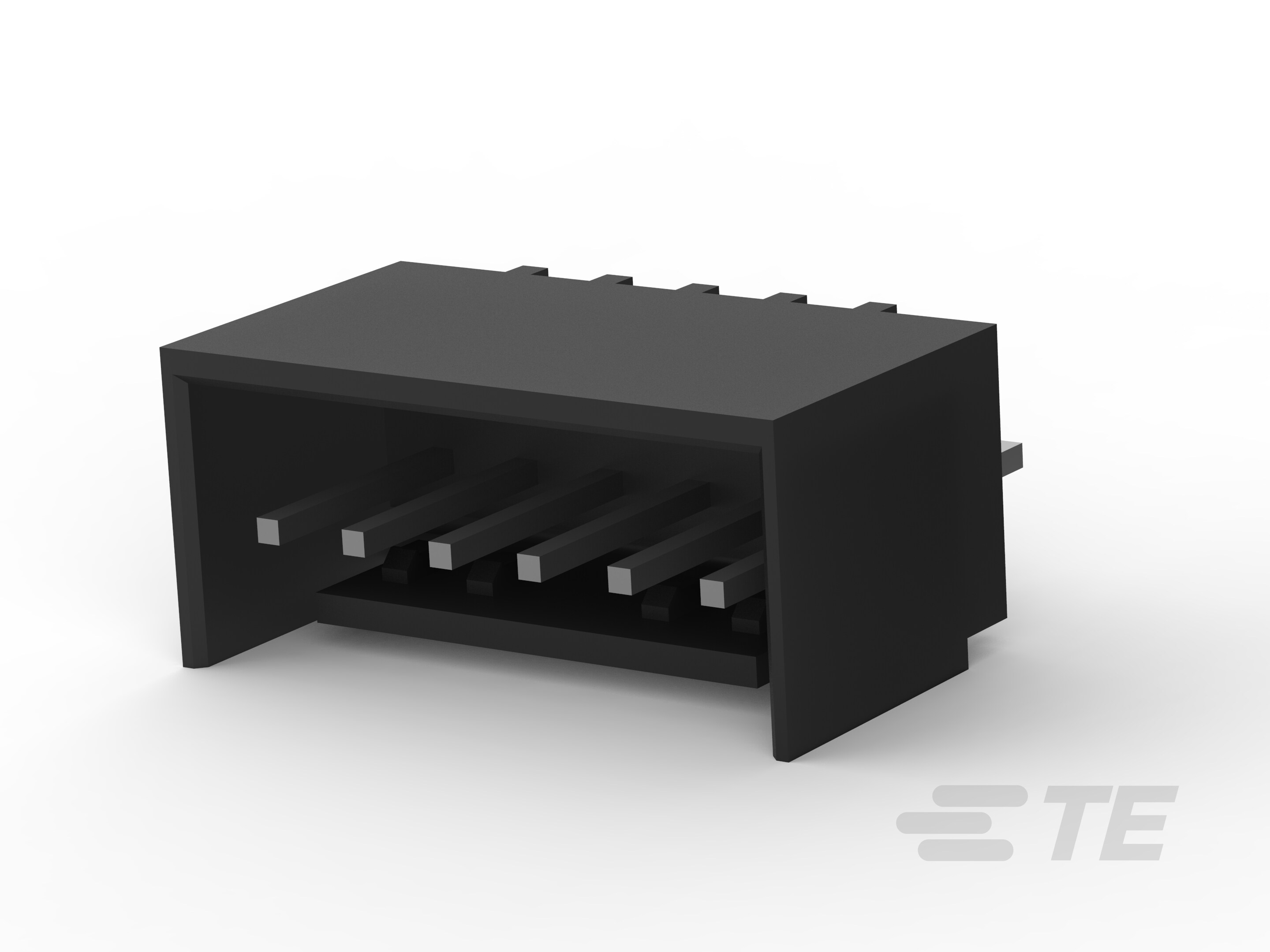

TE Connectivity AMP Connectors 3-644892-6	0.1 in	-55 °C	105 °C	Square	Tin	Through Hole	All	1	0.14 in	Male Pin	Copper Alloy	Shrouded - 4 Wall	0.41 in	Polyester	UL94 V-0	Solder	Varies by Wire Gauge	Header	6	Friction Lock	Tin	Board Cable/Wire	250 V	Black	0.28 in	0.52 in	General Purpose Lighting

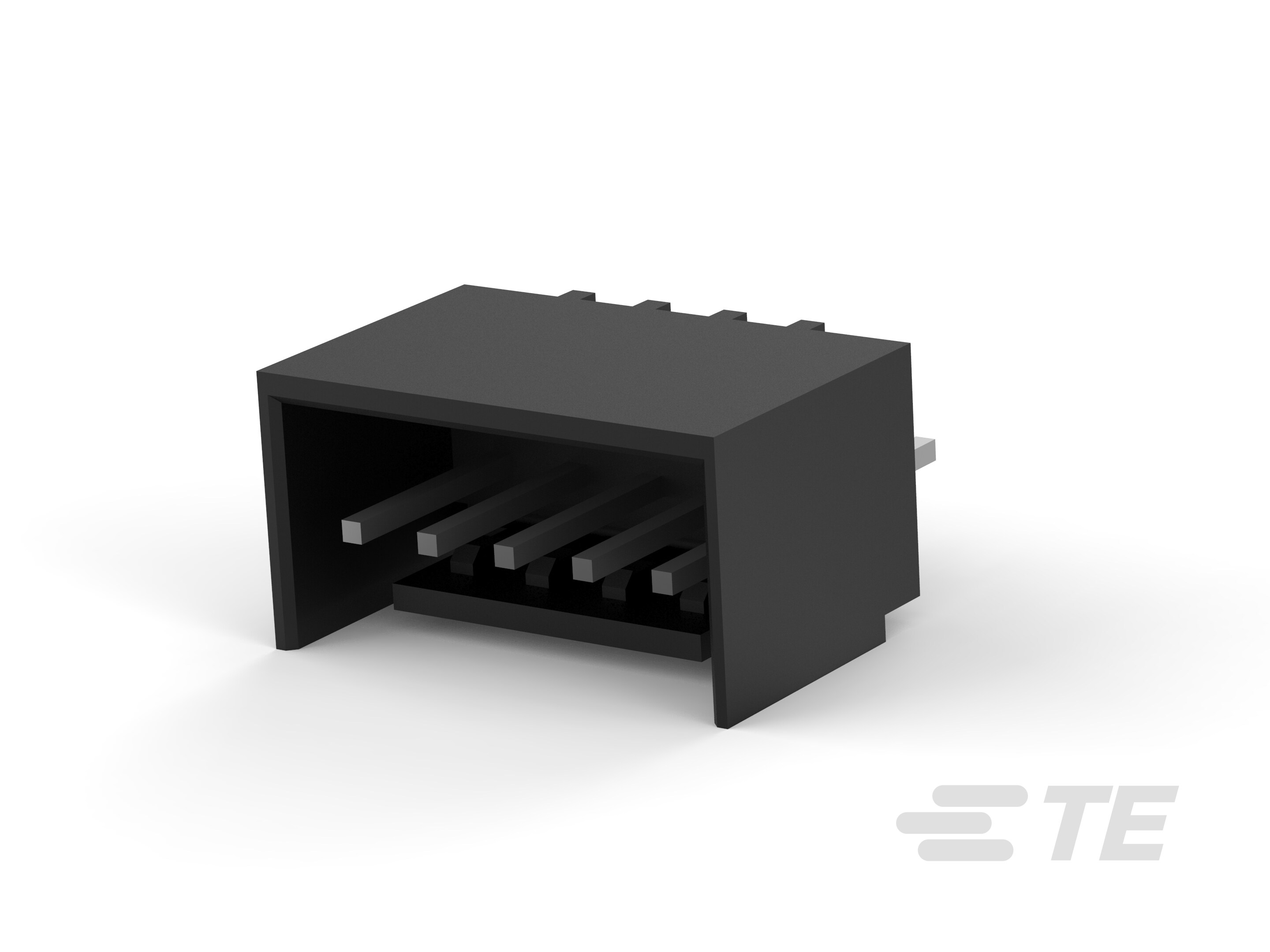

TE Connectivity AMP Connectors 3-644892-5	0.1 in	-55 °C	105 °C	Square	Tin	Through Hole	All	1	0.14 in	Male Pin	Copper Alloy	Shrouded - 4 Wall	0.41 in	Polyester	UL94 V-0	Solder	Varies by Wire Gauge	Header	5	Friction Lock	Tin	Board Cable/Wire	250 V	Black	0.28 in	0.52 in	General Purpose Lighting
TE Connectivity AMP Connectors 644892-4	0.1 in	-55 °C	105 °C	Square	Tin-Lead	Through Hole	All	1	0.14 in	Male Pin	Copper Alloy	Shrouded - 4 Wall	0.41 in	Polyester	UL94 V-0	Solder	Varies by Wire Gauge	Header	4	Friction Lock	Tin-Lead	Board Cable/Wire	250 V	Black	0.28 in	0.52 in	General Purpose Lighting
