1926734 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

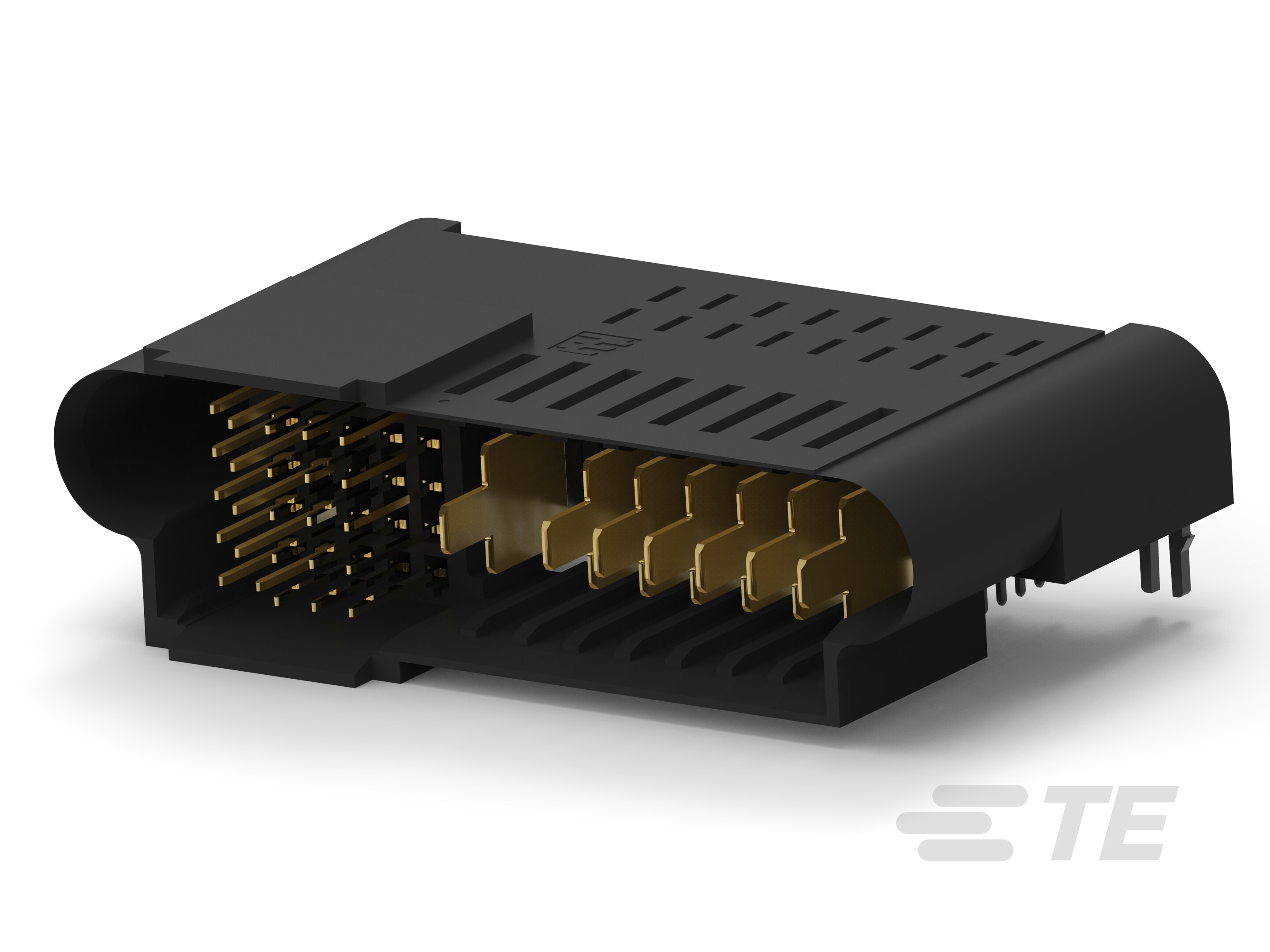

CONN PLUG 35POS EDGE MNT
| Part | Material Flammability Rating | Connector Type | Mounting Type | Number of Positions | Signal Contacts (Typical) | Power Contacts (Typical) | Number of Rows | Color | Termination | Number of Positions Loaded | Contact Finish Thickness | Contact Finish | Features | Operating Temperature (Min) | Operating Temperature (Max) | Voltage Rating | Current Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | UL94 V-0 | Blades Male Pins Plug | Board Edge Right Angle Through Hole | 35 | 25 | 10 | 5 | Black | Press-Fit | All | 30 µin | Gold Gold-Palladium | Board Lock Mating Guide | ||||
 TE Connectivity AMP Connectors | UL94 V-0 | Blades Male Pins Plug | Board Edge Right Angle Through Hole | 35 | 25 | 10 | 5 | Black | Press-Fit | All | 30 µin | Gold Gold-Palladium | Board Lock Mating Guide | ||||
 TE Connectivity AMP Connectors | UL94 V-0 | Blades Male Pins Plug | Board Edge Right Angle Through Hole | 33 | 25 | 8 | 5 | Black | Press-Fit | All | 30 µin | Gold | Board Lock Mating Guide | -40 °C | 70 °C | 150 VDC | 0.5 A |
