5104338 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 16POS 2.54MM

Part	Contact Finish - Mating	Insulation Material	Contact Finish Thickness - Mating	Contact Shape	Row Spacing - Mating	Number of Positions	Insulation Color	Material Flammability Rating	Contact Length - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Pitch - Mating	Number of Rows	Connector Type	Style	Contact Finish - Post	Termination	Shrouding	Features	Contact Length - Post	Fastening Type	Contact Material	Current Rating (Per Contact)	Contact Type	Insulation Height	Number of Positions Loaded	Mounting Type	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 5104338-3	Gold Gold-Palladium	Glass Filled Polyphthalamide (PPA)	15 µin	Square	0.1 in	16	Black	UL94 V-0	0.24 in	105 °C	-65 °C	0.1 in	2	Header	Board Cable/Wire	Tin	Kinked Pin Solder	Shrouded - 4 Wall	Keying Slot	0.12 in	Push-Pull	Brass	1 A	Male Pin	0.385 in	All	Through Hole	100 Ąin
TE Connectivity AMP Connectors 5104338-1	Gold Gold-Palladium	Glass Filled Polyphthalamide (PPA)	15 µin	Square	0.1 in	10	Black	UL94 V-0	0.24 in	105 °C	-65 °C	0.1 in	2	Header	Board Cable/Wire	Tin	Kinked Pin Solder	Shrouded - 4 Wall		0.12 in	Push-Pull	Brass	1 A	Male Pin	0.385 in	All	Through Hole	100 Ąin
TE Connectivity AMP Connectors 5104338-4	Gold Gold-Palladium	Glass Filled Polyphthalamide (PPA)	15 µin	Square	0.1 in	20	Black	UL94 V-0	0.24 in	105 °C	-65 °C	0.1 in	2	Header	Board Cable/Wire	Tin	Kinked Pin Solder	Shrouded - 4 Wall	Keying Slot	0.12 in	Push-Pull	Brass	1 A	Male Pin	0.385 in	All	Through Hole	100 Ąin

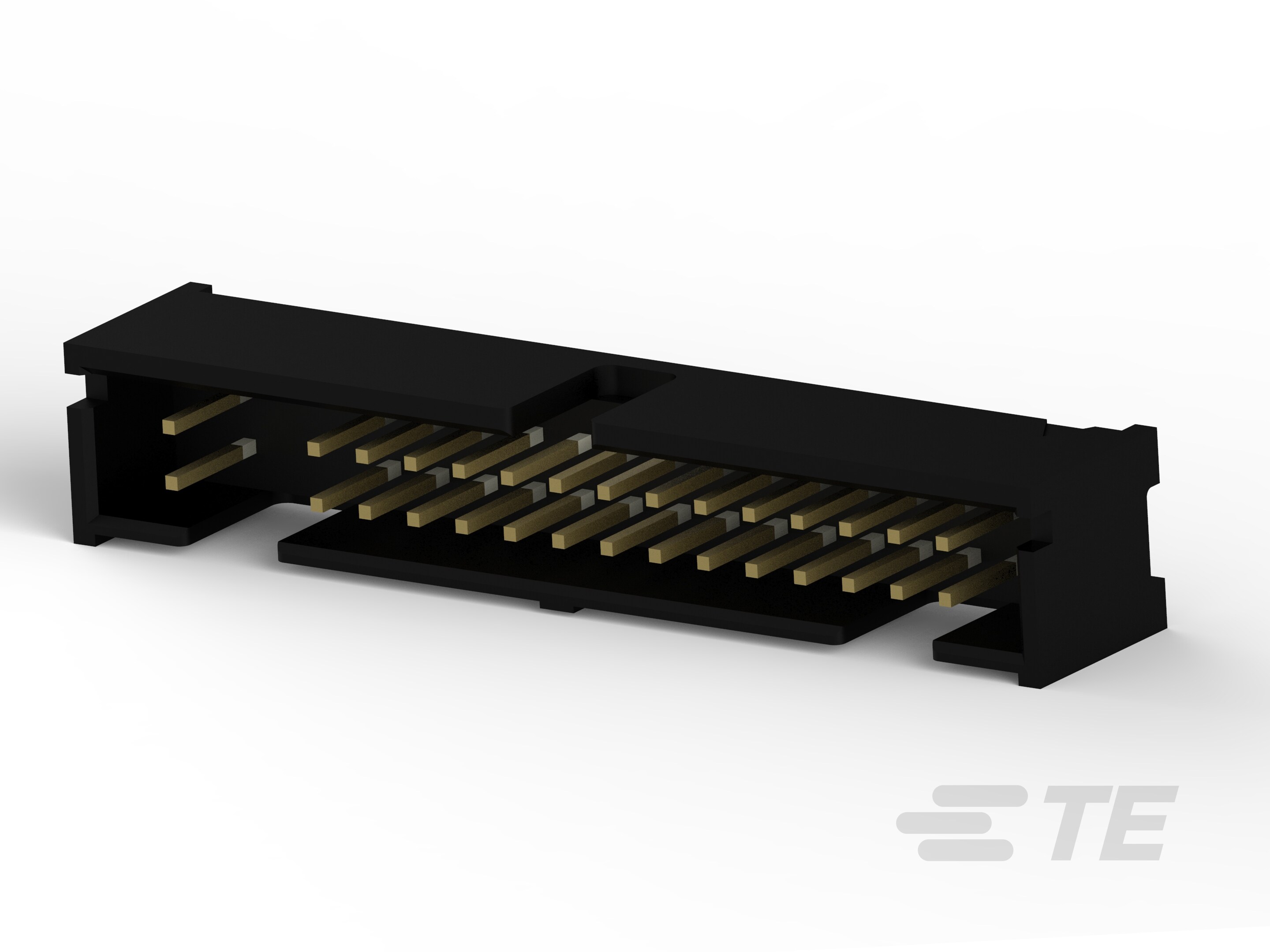

TE Connectivity AMP Connectors 5104338-7	Gold Gold-Palladium	Glass Filled Polyphthalamide (PPA)	15 µin	Square	0.1 in	34	Black	UL94 V-0	0.24 in	105 °C	-65 °C	0.1 in	2	Header	Board Cable/Wire	Tin	Kinked Pin Solder	Shrouded - 4 Wall	Keying Slot	0.12 in	Push-Pull	Brass	1 A	Male Pin	0.385 in	All	Through Hole	100 Ąin
