085013 Series

Manufacturer: Molex

Catalog

CONN DIN HDR 96POS

Part	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Material - Insulation	Contact Finish Thickness	Number of Positions Loaded	Number of Rows	Contact Finish	Style	Level, Class	Pitch	Connector Type	Termination	Number of Positions	Mounting Type	Features
Molex 0850130036	UL94 V-0	125 °C	-55 °C	Polyester Thermoplastic	24 µin	All	3	Gold	R	2	0.1 in	Header Male Pins	Solder	96	Through Hole

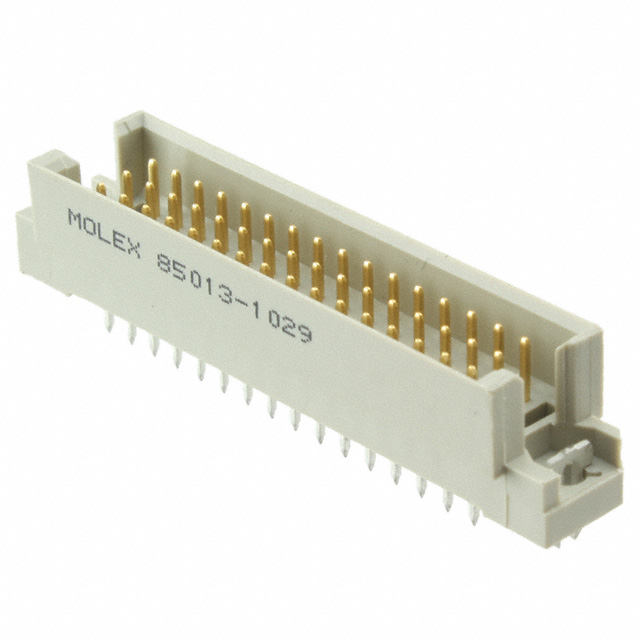

Molex 0850131029	UL94 V-0	125 °C	-55 °C	Polyester Thermoplastic	24 µin	All	3	Gold	R/2 (1/2 R)	2	0.1 in	Header Male Pins	Solder	48	Through Hole	Mounting Clips
Molex 0850134000	UL94 V-0	125 °C	-55 °C	Polyester Thermoplastic	24 µin	All	3	Gold	R	2	0.1 in	Header Male Pins	Solder	96	Through Hole
Molex 0850131225	UL94 V-0	125 °C	-55 °C	Polyester Thermoplastic	39.4 Ąin	All	3	Gold	R	1	0.1 in	Header Male Pins	Solder	96	Through Hole
Molex 0850130098	UL94 V-0	125 °C	-55 °C	Polyester Thermoplastic	24 µin	All	3	Gold	R/2 (1/2 R)	2	0.1 in	Header Male Pins	Press-Fit	48	Through Hole
