93689 Series

Catalog

CONN HEADER VERT 10POS 2.54MM

Part	Contact Finish Thickness - Post	Insulation Color	Number of Positions	Fastening Type	Termination	Material Flammability Rating	Shrouding	Pitch - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish - Mating	Mounting Type	Contact Material	Contact Length - Mating	Insulation Height	Operating Temperature (Max)	Operating Temperature (Min)	Number of Rows	Number of Positions Loaded	Contact Type	Style	Current Rating (Per Contact)	Insulation Material	Contact Length - Post	Overall Contact Length	Contact Shape	Connector Type
Amphenol ICC (FCI) 93689-106-10LF	39.4 µin	Black	10	Push-Pull	Press-Fit Solder	UL94 V-0	Unshrouded	0.1 in	Tin	30 µin	Gold GXT™	Through Hole	Phosphor Bronze	0.268 in	0.1 in	125 °C	-65 °C	1	All	Male Pin	Board	3 A	Thermoplastic	0.142 in	0.508 in	Square	Breakaway Header
Amphenol ICC (FCI) 93689-406-04LF		Black	4	Push-Pull	Press-Fit Solder	UL94 V-0	Unshrouded	0.1 in		120 µin	Tin	Through Hole	Phosphor Bronze	0.268 in	0.1 in	125 °C	-65 °C	1	All	Male Pin	Board	3 A	Thermoplastic	0.142 in	0.508 in	Square	Breakaway Header
Amphenol ICC (FCI) 93689-101-06LF	39.4 µin	Black	6	Push-Pull	Press-Fit Solder	UL94 V-0	Unshrouded	0.1 in	Tin	30 µin	Gold GXT™	Through Hole	Phosphor Bronze	0.295 in	0.1 in	125 °C	-65 °C	1	All	Male Pin	Board	3 A	Thermoplastic	0.177 in	0.582 in	Square	Breakaway Header
Amphenol ICC (FCI) 93689-103-03	39.4 µin	Black	3	Push-Pull	Press-Fit Solder	UL94 V-0	Unshrouded	0.1 in	Tin	30 µin	Gold GXT™	Through Hole	Phosphor Bronze	0.224 in	0.1 in	125 °C	-65 °C	1	All	Male Pin	Board	3 A	Thermoplastic	0.177 in	0.505 in	Square	Breakaway Header

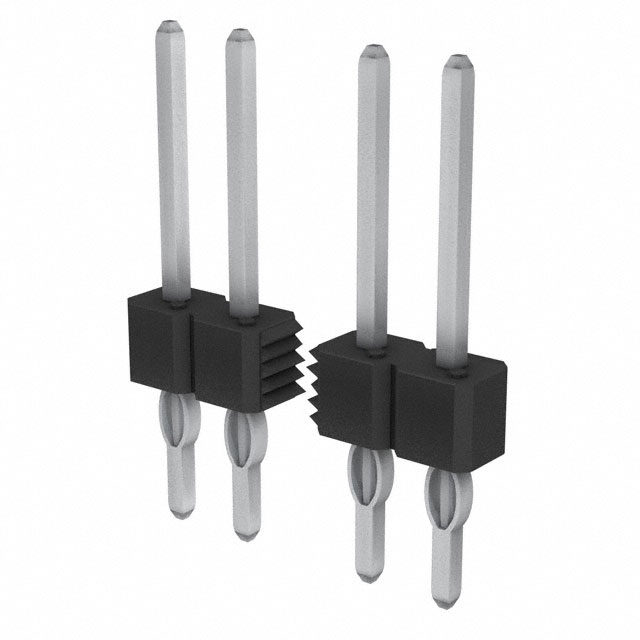

Amphenol ICC (FCI) 93689-405-03LF		Black	3	Push-Pull	Press-Fit Solder	UL94 V-0	Unshrouded	0.1 in		120 µin	Tin	Through Hole	Phosphor Bronze	0.327 in	0.1 in	125 °C	-65 °C	1	All	Male Pin	Board	3 A	Thermoplastic	0.177 in	0.608 in	Square	Breakaway Header
Amphenol ICC (FCI) 93689-403-10LF		Black	10	Push-Pull	Press-Fit Solder	UL94 V-0	Unshrouded	0.1 in		120 µin	Tin	Through Hole	Phosphor Bronze	0.224 in	0.1 in	125 °C	-65 °C	1	All	Male Pin	Board	3 A	Thermoplastic	0.177 in	0.505 in	Square	Breakaway Header
Amphenol ICC (FCI) 93689-103-13LF	39.4 µin	Black	13	Push-Pull	Press-Fit Solder	UL94 V-0	Unshrouded	0.1 in	Tin	30 µin	Gold GXT™	Through Hole	Phosphor Bronze	0.224 in	0.1 in	125 °C	-65 °C	1	All	Male Pin	Board	3 A	Thermoplastic	0.177 in	0.505 in	Square	Breakaway Header
Amphenol ICC (FCI) 93689-203-36		Black	36	Push-Pull	Press-Fit Solder	UL94 V-0	Unshrouded	0.1 in		50 µin	Gold GXT™	Through Hole	Phosphor Bronze	0.224 in	0.1 in			1	All	Male Pin	Board		Thermoplastic	0.177 in	0.505 in	Square	Breakaway Header
Amphenol ICC (FCI) 93689-405-05LF		Black	5	Push-Pull	Press-Fit Solder	UL94 V-0	Unshrouded	0.1 in		120 µin	Tin	Through Hole	Phosphor Bronze	0.327 in	0.1 in	125 °C	-65 °C	1	All	Male Pin	Board	3 A	Thermoplastic	0.177 in	0.608 in	Square	Breakaway Header
Amphenol ICC (FCI) 93689-102-06LF	39.4 µin	Black	6	Push-Pull	Press-Fit Solder	UL94 V-0	Unshrouded	0.1 in	Tin	30 µin	Gold GXT™	Through Hole	Phosphor Bronze	0.399 in	0.1 in	125 °C	-65 °C	1	All	Male Pin	Board	3 A	Thermoplastic	0.177 in	0.685 in	Square	Breakaway Header
